Standards
ASTM F1140, ASTM F2054, GB/T 17876, GB/T 10004, GB 10440, GB 18454, GB 19741, GB 17447, BB/T 0025, QB/T 1871, YBB 0016-2002
Working principle
Inject air pressure into sample bag or container and create pressure difference between inside and outside of the sample, and observe the status of leaking and bursting, so as to judge the heat seal performance and bursting status of sample.
Features

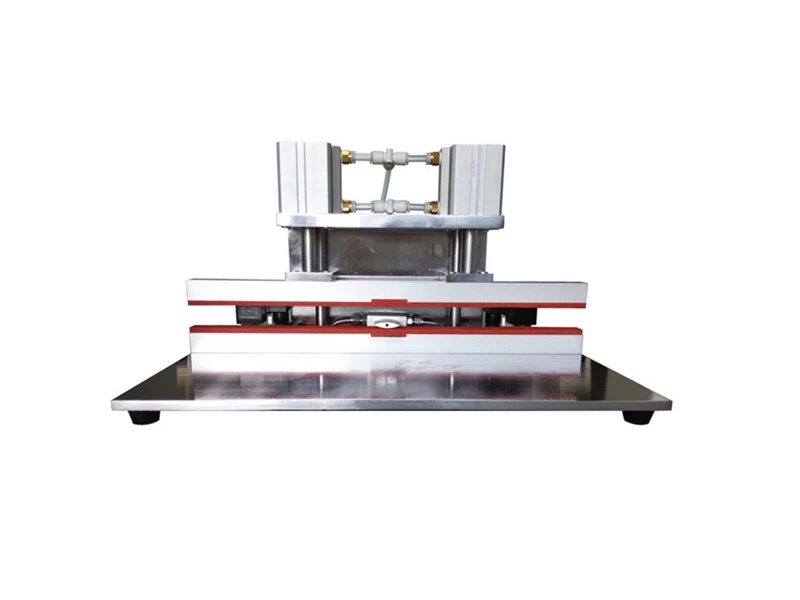

u Pneumatic clips, good sealing of bag opening.
u Wholly automatic, automatically inject air and keep for set time; auto measure and stop.
u Can manually pause and stop.
u LCD display test data.
u Built-in printer, can print report.
u Simple calibration of pressure sensor.
u Can customize clips for unusual bag.
Specifications
|
Test range of sealing strength
|
0~1Mpa
|
|
Test range of leakage
|
0~100Kpa
|
|
Accuracy
|
0.5%
|
|
Gas source
|
compressed air, 0.4~1Mpa
|
|
Range of sample’s sealing size
|
0~400mm
|
|
Main machine body size
|
435mm x 360mm x 200mm
|
|
Clips size
|
500mm × 260mm × 270mm
|
|
Weight
|
125kg
|
|
Power
|
100W
|
|
Power supply
|
AC 220V 50Hz
|
Configuration
Main machine body, power cable, pneumatic clips, micro-printer
User provide: gas source
