Multihead Weigher for Weighing Food Snacks Seeds Nuts Peanut 10 heads 14 heads

Heads Multihead Weigher:It is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs, etc.

  • Measure Number10
  • Hopper Volume1.6L/2.5L
  • ModelZV-A10
  • Weighing Range10-1000g
  • Max Speed65P/M
Facebook Twitter Pinterest LinkedIn 分享

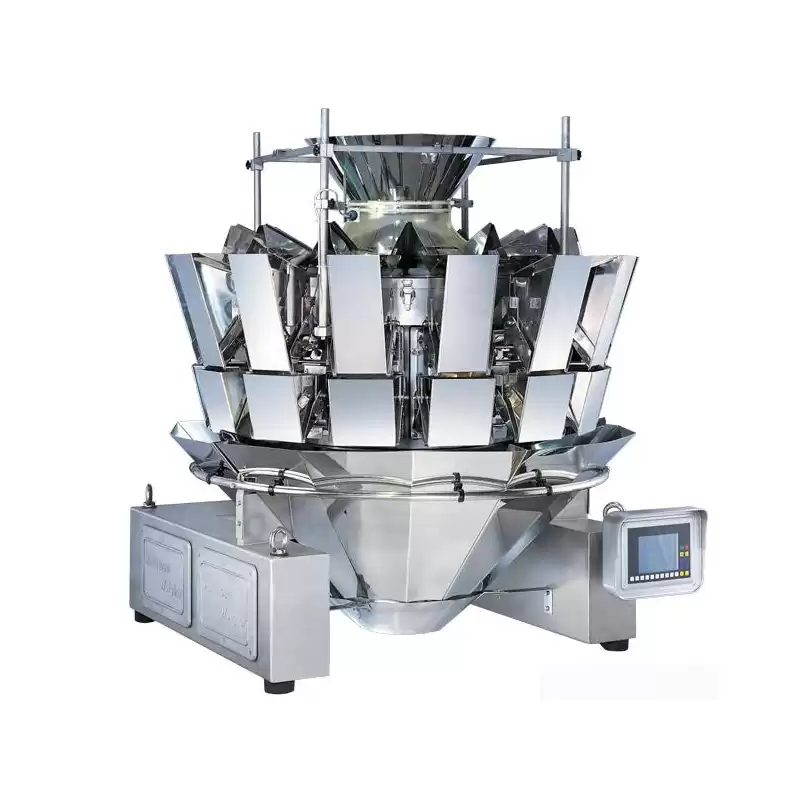

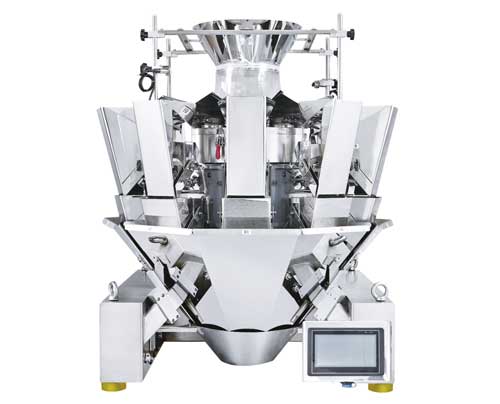

  ZV-A10 Multihead Weigher for Weighing Food Snacks Seeds Nuts Peanut

ZV-A10 Multihead Weighter


Features:

1. High accuracy and tailored load cell.
2. Intelligent multi-sampling stable mode, higher accuracy.
3. Intelligent alarm diagnosis.
4. High speed stagger dump function.
5. Modular and CAN bus technology, more efficient and stable
6. Modbus Industry communication protocol.


ponderable materials



Mechanical Character:


1. 1.6L/2.5L hopper, a wide range application to different of products.
2. 7”touch screen can meet the user’s requirement
3. New actuator design reduce the mechanical vibration and improves the load cell value
accuracy.
4. Arc-shaped machine body with large R treatment improves the stability and appearance .
5. Uniform design standards, and mould processing, contribute to better interchangeability for
spare parts.
6. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.


Technical Specification:

 Model:  ZV-A10  ZV-A14
 Measure Number:  10  14
 Weighing Range:  10-1000g  10-1500g
 Accuracy:  X(0.5)  X(0.5)
 Max Speed:  65P/M  120P/M
 Hopper Volume:  1.6L/2.5L
 Control Panel:  7'' Touch Screen
 Options:  Dimple Plate/Timing Hopper/Printer/Reject Device
 Driving System:  Step Motor
 Power Requirement:  220V/1000W/50/60Hz/10A  220V/1000W/50Hz//60Hz/10A
 Packaging Dimension (mm):  1620(L)*1080(W)*1120(H)  1700(L)*1080(W)*1210(H)
 Gross Weight:  440kg  500kg
