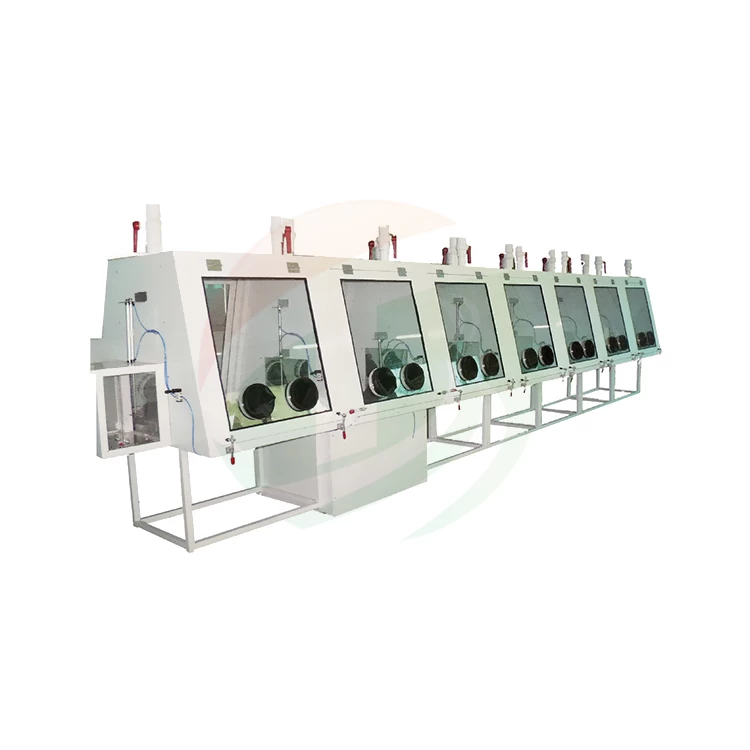

Multiple Position Vacuum Glove Box
Product Specification
1 The glove box can supply a Closed working environment with Maintaining clean and humidity. It is used for lithium battery producing process from electrolyte filling to vacuum pre-sealing.
2 The Electrolyte filling machine, vacuum holding box and vacuum pre-sealing machine need to put in the glove box with making battery under environment without Much H2O and O2. We can input dry N2 into the glove box to improve the environment.
3 This glove box adopts Fission modular design, we can add or combination every section as we wanted according to production line.
4 Transparent toughened glass surface as a visual operation, convenient to observe
5 Designed with antechamber and Transition tank in front and end, easy for battery loading. And the antechamber and also be customized with Vacuum function.
6 Dimension : 1000*1400*1800mm section, customized
7 Source voltage : AC110V/220V 50/60HZ
8 Power : 0.5KW
9 Air source : 0.6-0.7MPa, 5L/S
Finished glove box according to customer’s requirement:
|
Model
|
TOB-GB-DVS
|
|
Source voltage
|
AC110V/220V 50/60HZ
|
|
Power
|
1000W
|
|
Air intake
|
4 inch ball
|
|
Air outlet
|
3 inch ball
|
|
Glove port
|
Φ200mm
|
|
Glove pairs
|
4 pairs
|
|
Ante chamber size
|
350*200*400mm
|
|
Dimension
|
1530*1200*1850mm
|
|
Weight
|
350kg
|
|
Material
|
Stainless steel
|
|
Warranty
|
One year limited warranty with lifetime support
|

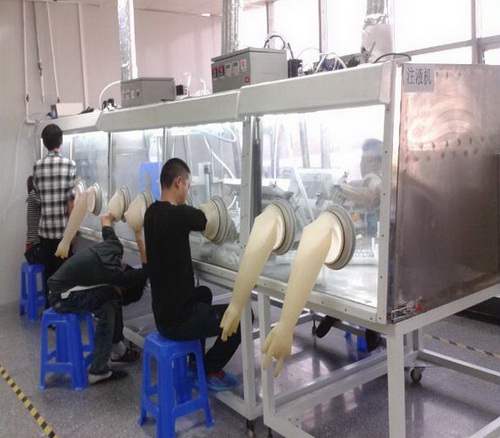

Product Images
Product Packing
