Applications:

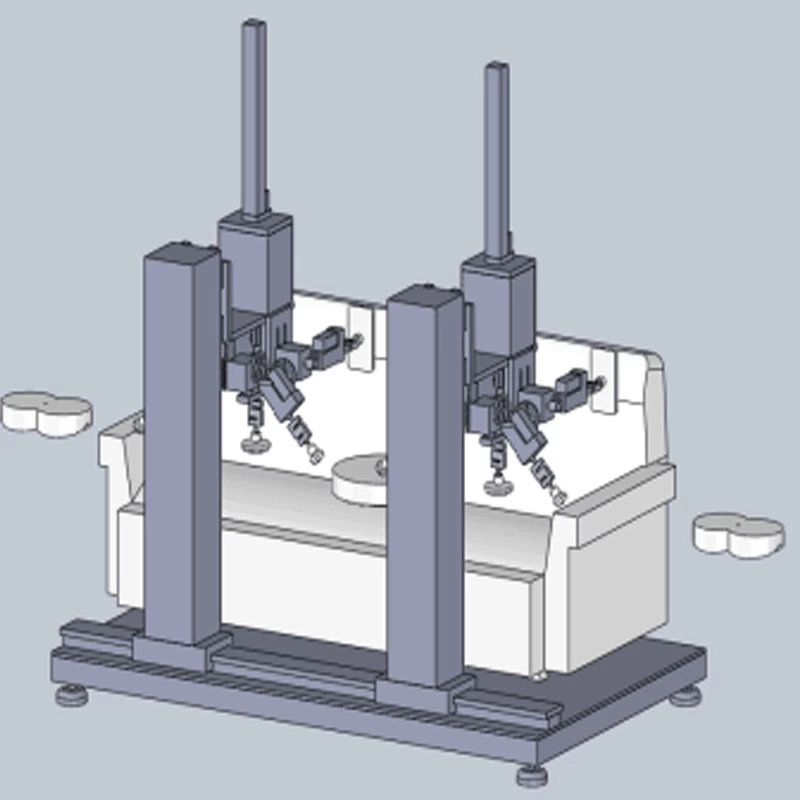

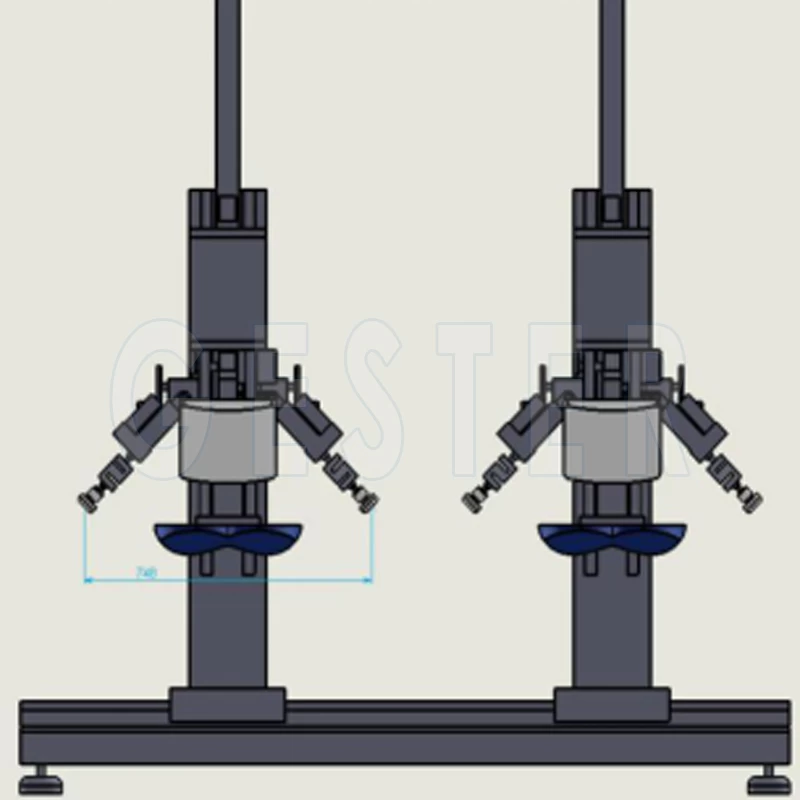

Multiple Seating Chairs Strength and Durability Testing Machine is used for testing the strength and durability of the armrest, seats and backrest by simulating the loading of the seats during daily use. The machine is equipped with 2 testing position. Each position includes 4 drive devices, in which one for seating test, one for backrest test and two for armrest test. That is, this machine is equipped 8 drive devices and all of them can be controlled separately.
The machine can test 2 sing-seat chair at the same time, and also can test a multiple-seat chairs or sofas.
|
Standards
EN 1728-2012 Section 6.4, 6.5, 6.6,6.7, 6.12, 6.8, 6.9, 6.11, 6.12, 6.13, 6.14,6.15, 6.16, 6.17,6.18,6.20, 6.21 ,6.22, 7.3, 7.4,7.5,7.9, 7.6, 7.8, 7.10 , 7.12（6.24 optional accessories）
EN1335-3 -2009 Section 7.2.1, 7.2.2,7.2.3, 7.2.4, 7.2.6, 7.3.2, 7.3.4,
EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.4, 5.3.5, 5.3.6, 5.3.9,5.3.11, 5.3.12（5.3.7 need the optional accessories）
EN581-2-2015（corresponding with EN1728-2012),
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, （7.10 need the optional accessories）
GB/T 10357.3 Section 4.3, 4.4,4.6, 4.7,4.8, 4.9,4.10,4.11, （4.12 need the optional accessories）
QB/T 2280-2007 Section6.6.4, 6.6.9, 6.6.5, 6.6.6, 6.6.13.2
EN 16139-2013 （corresponding with EN1728-2012)
EN 12727-2016 （corresponding with EN1728-2012)
EN 15373-2007 （corresponding with EN1728-2000)
EN 12520-2010 （corresponding with EN1728-2000)
BS5459-2-2000 Section A5.1,A5.5, A7.3 (A5.2 need the optional accessories）
Feature
|
1. The plastic spraying of the main structure makes the machine beautiful and easy to maintain.
2. Servo motor drive, test load control more accurate, and the noise is even smaller.
3. Computer software control, more accurate and convenient.
|

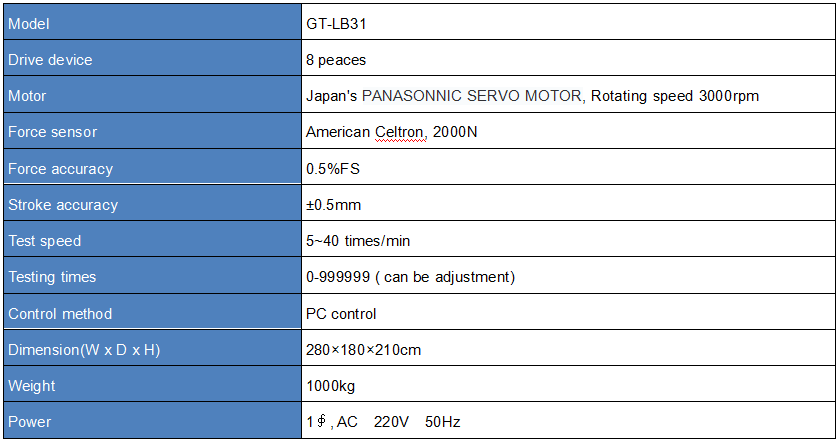

Key Specifications

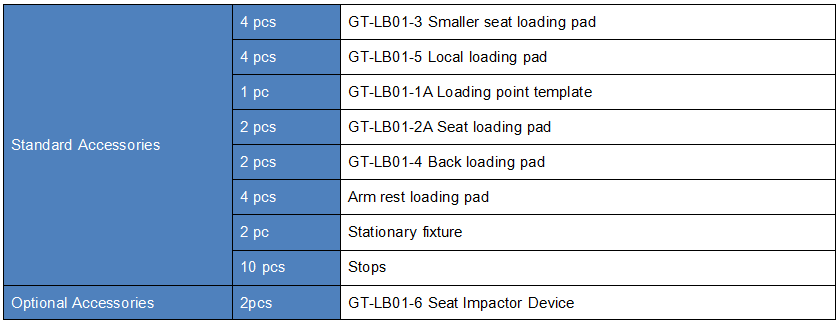

Accessories

|
