About product:
|
Brand
|
|
|
Part Number/Catalog No. 05701-A-0361
|
MVI56E-MCMR
|
|
Product Type
|
Communication module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

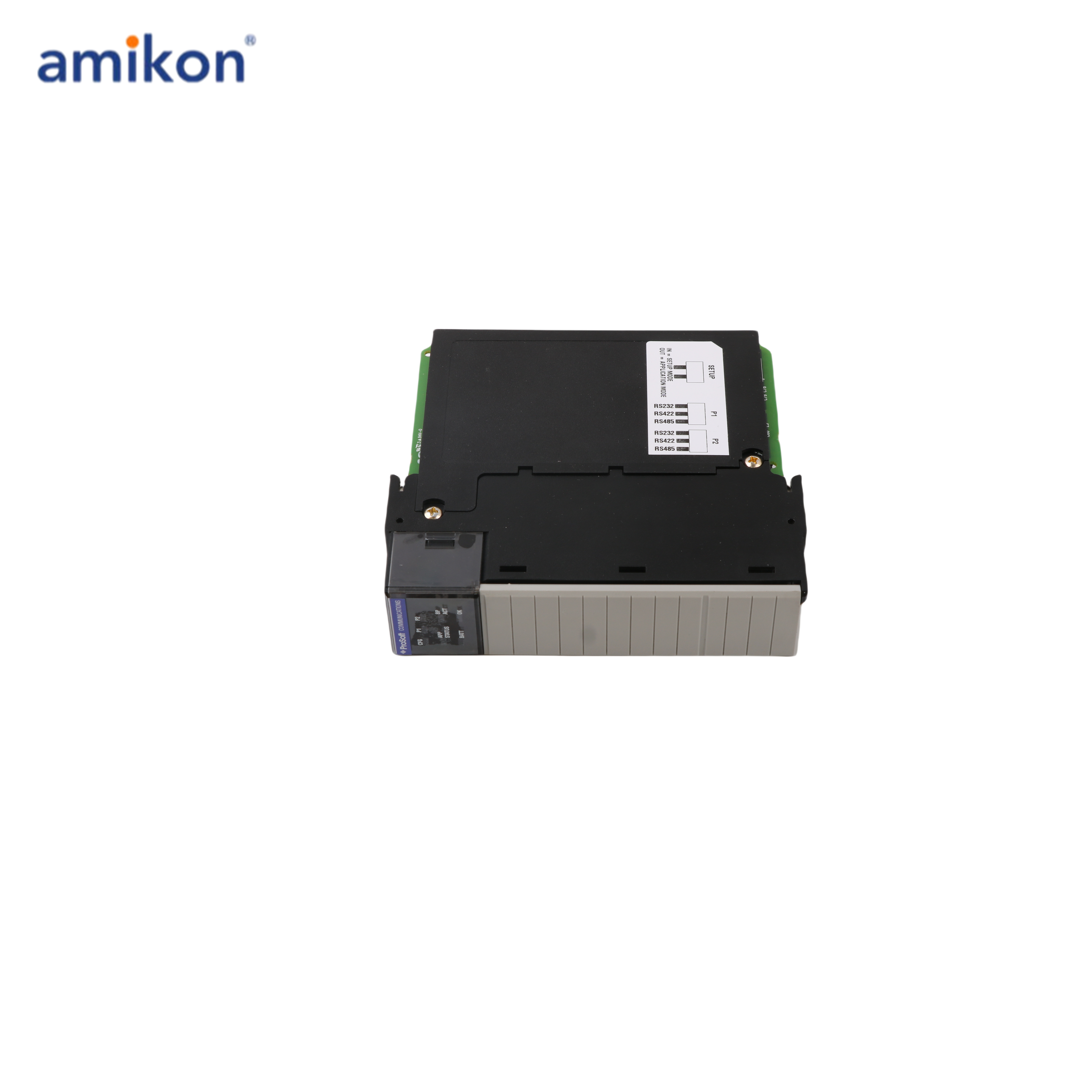

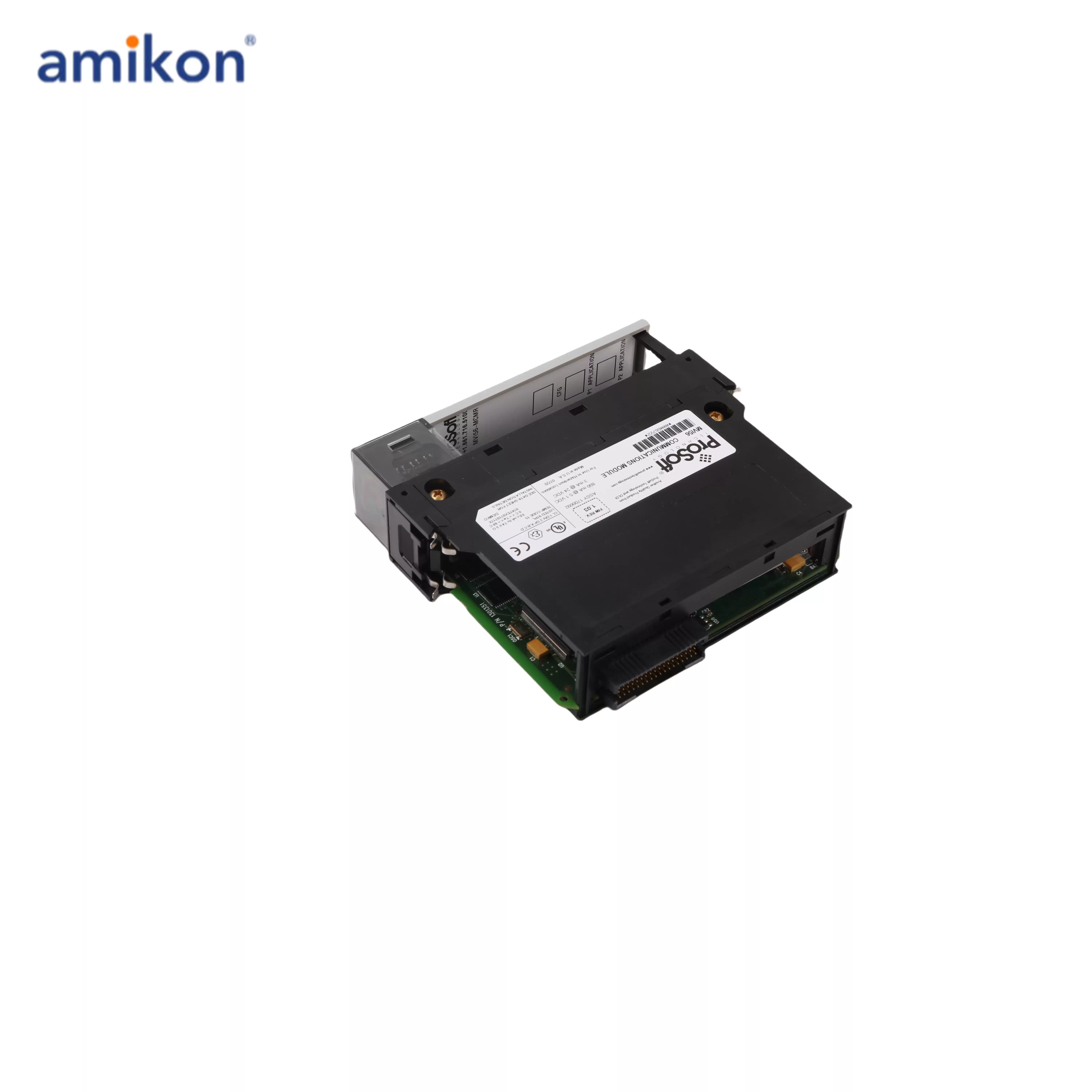

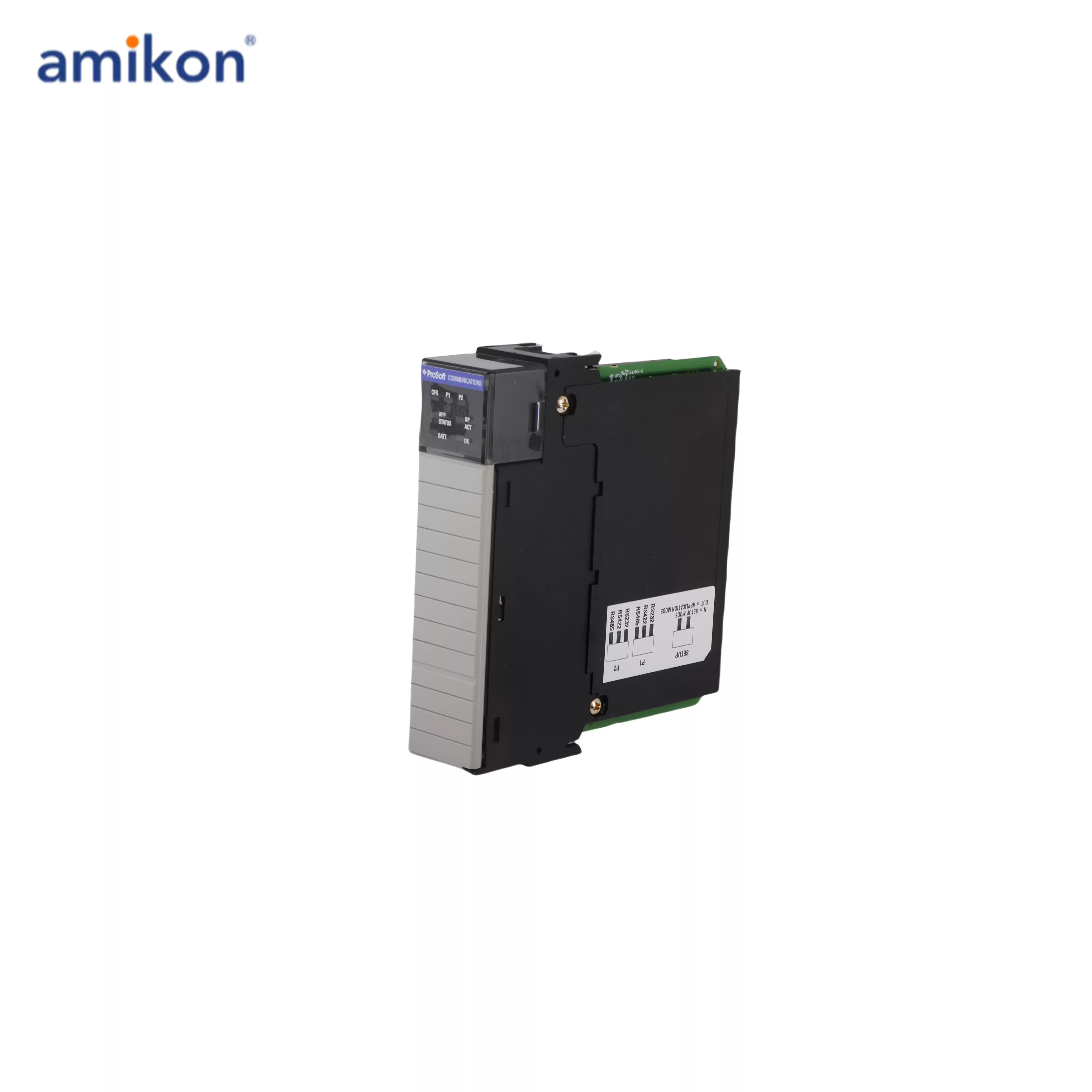

The MVI56E-MCMR is a ControlLogix Enhanced Modbus Master/Slave Communications Interface Module with Reduced Data Block. This module is developed by ProSoft Technology that is specifically compatible with ControlLogix controllers. This module is a single slot module with One (1) Debug / configuration Ethernet port, Two (2) Serial application ports. It has a reduced data block that makes this module require less backplane and network bandwidth.
Specifications:
Part Number/Catalog No.:MVI56E-MCMR
Backplane Current Load:800 mA @ 5 V DC
Manufacturer:ProSoft Technology
Module width:Single slot
Compatible rack:1756 chassis
Data size: 5,000 words
Communication port:One (1) RJ45 configuration port; Two (2) Serial Application ports
Ethernet Data Rate:10 / 100 Mbps
Serial data rate:110 baud to 115.2 kbps
MODBUS functionality:Master / Slave
Operating Temperature:32° F to 140° F (0° C to 60° C)
Storage Temperature:-40° F to 185° F (-40° C to 85° C)
Operating Shock:30 g
Relative humidity:5% to 95% (without condensation)
