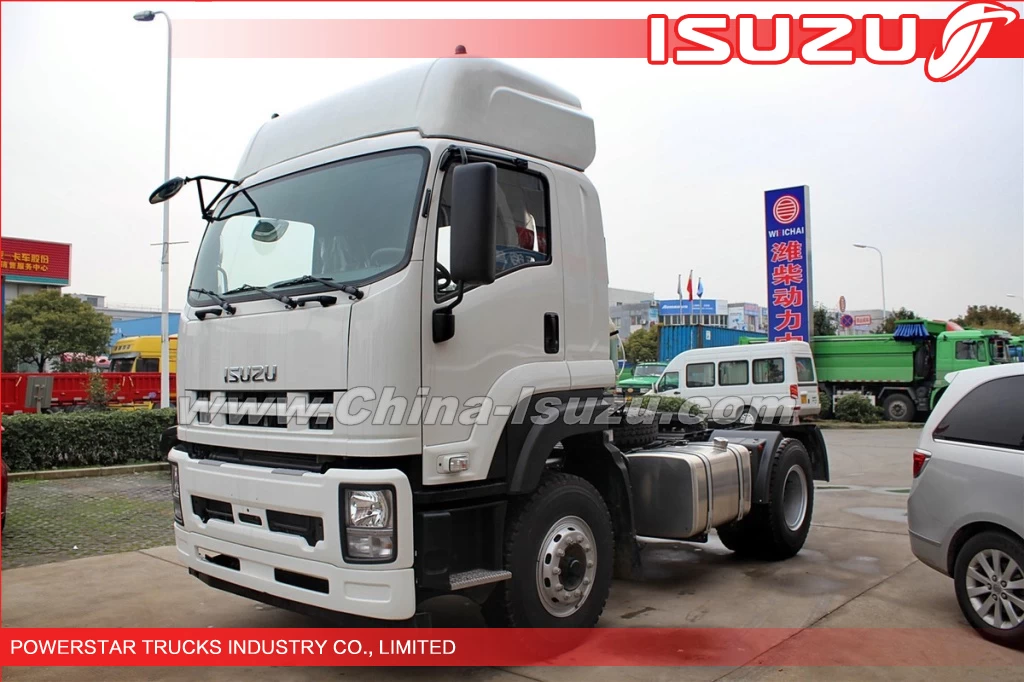

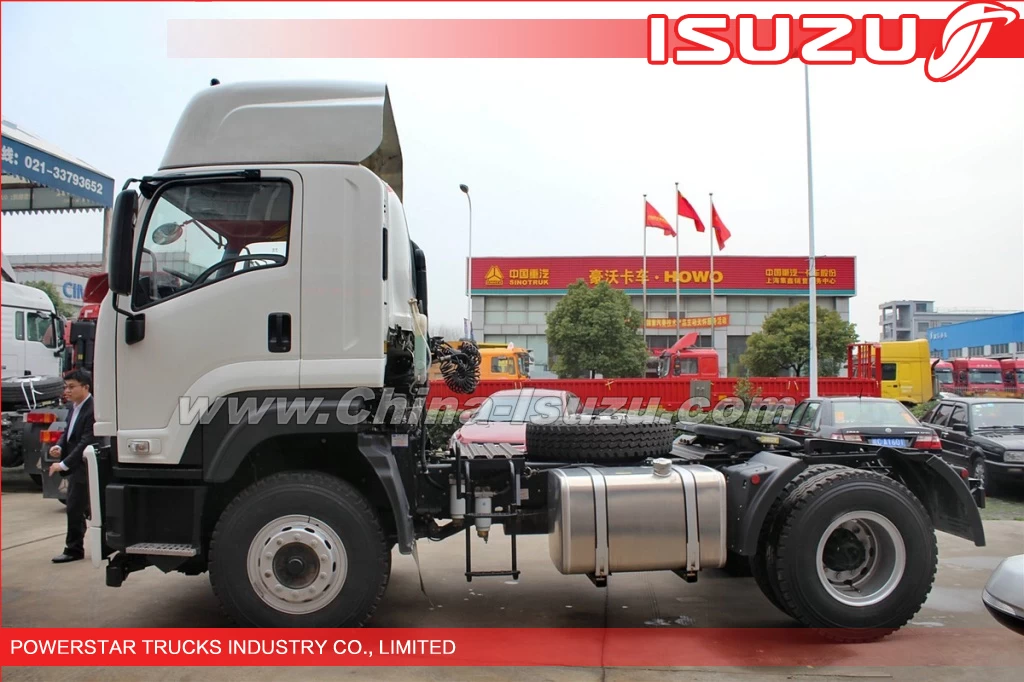

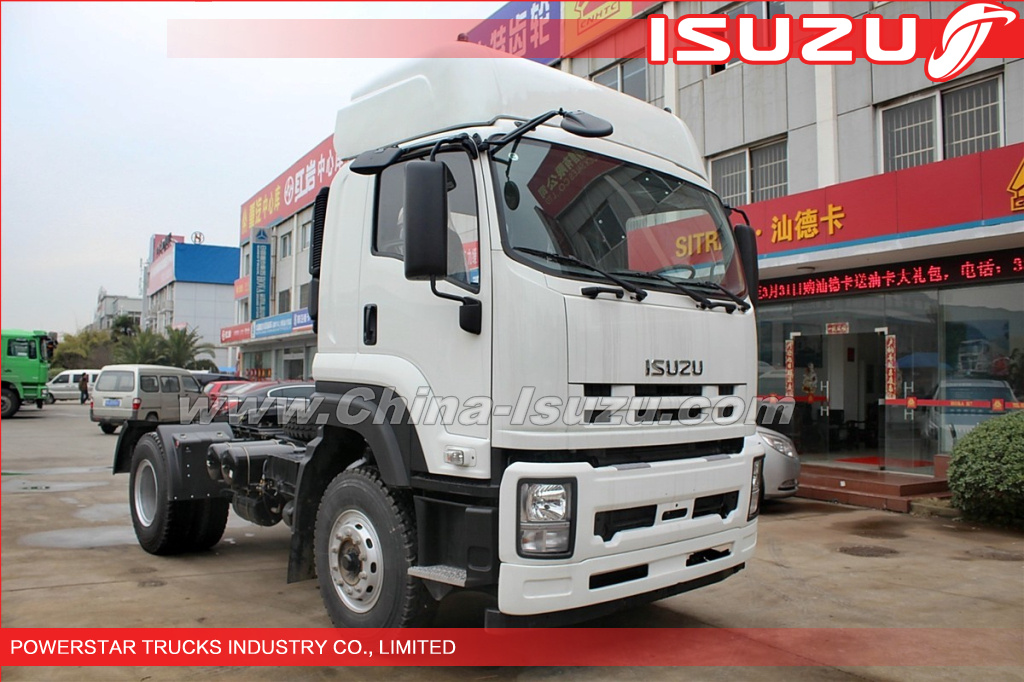

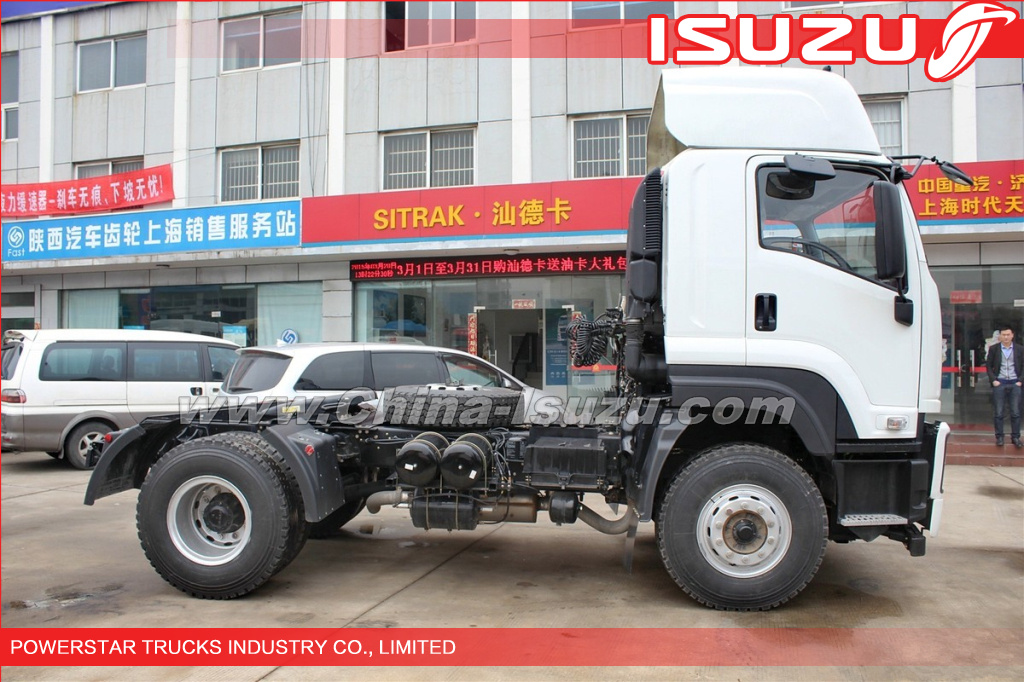

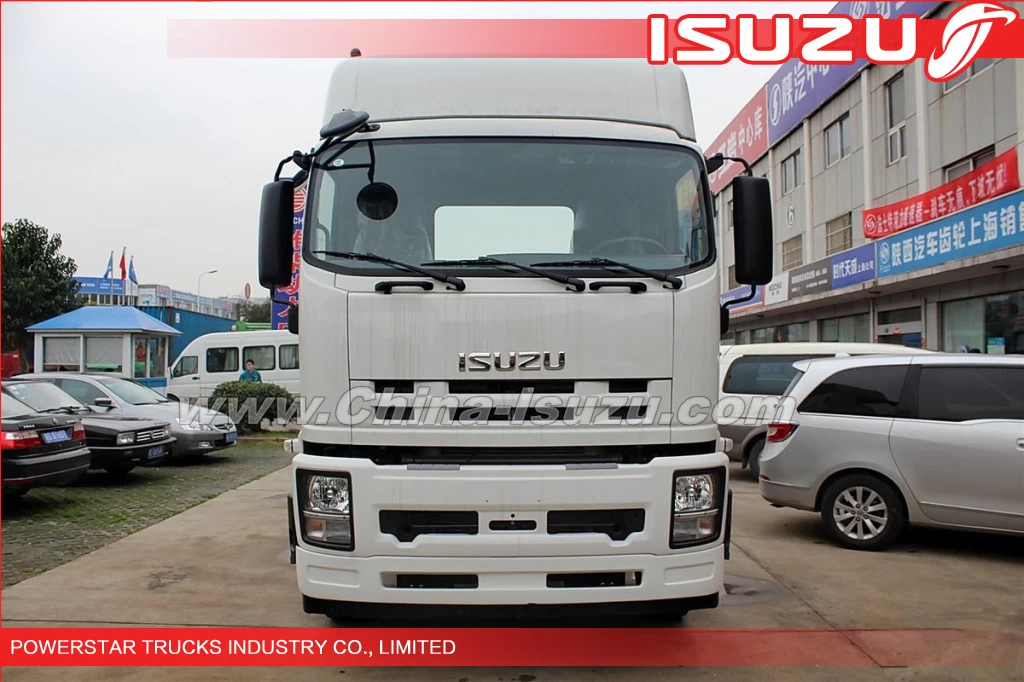

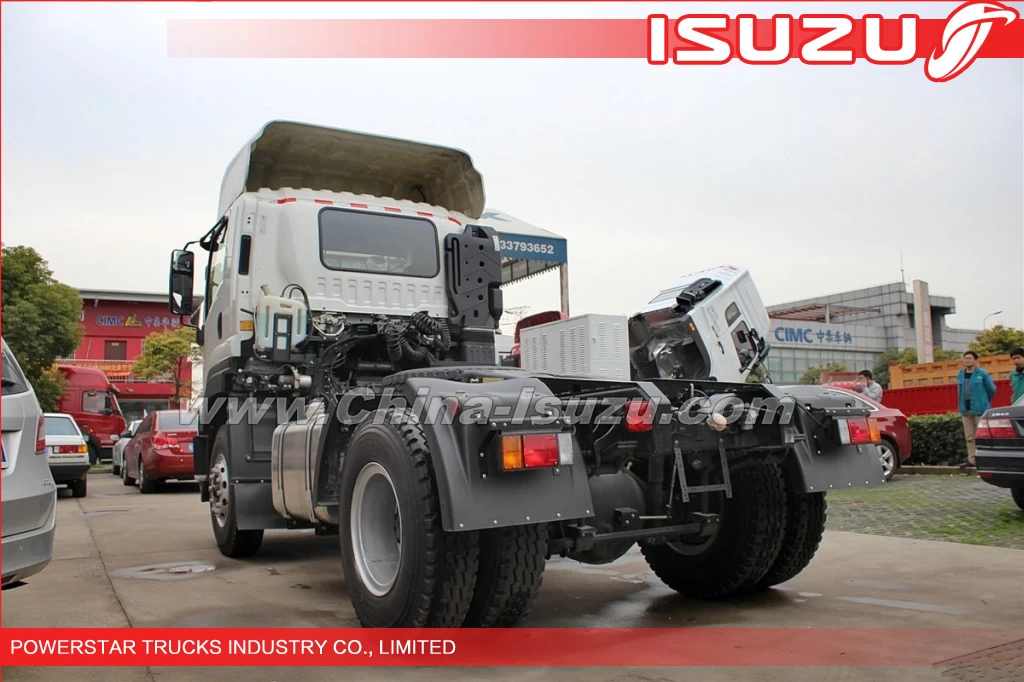

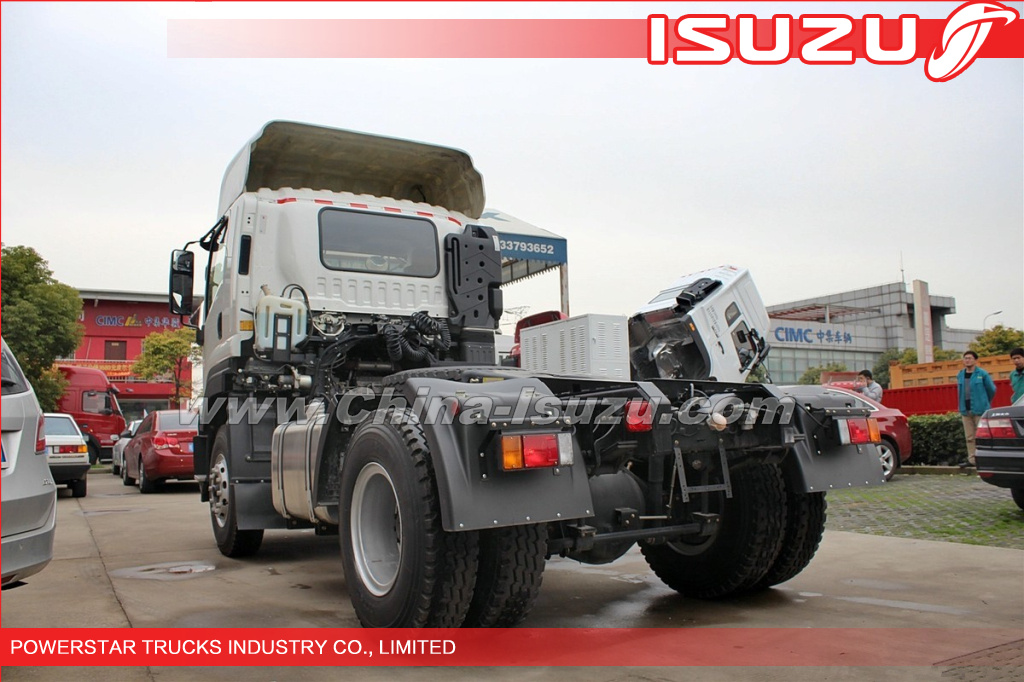

Myanmar 4x2 350hp ISUZU VC46 Prime Mover Truck Tractor Head units

Model

PT4250UK46

Driving Type

4x2

Left hand drive

Weight

Kerb Weight (kg)

6450

Max. Fifth Wheel Payload (kg)

15000 kg

Max. Towed Mass (kg)

30000 kg

Overload Range of Gross Vehicle Weight (kg)

40000 @ complex road

Dimensions (mm)

Wheelbase

3450

Overall Dimension

5790x2490x3580

Front Overhang

1370

Rear Overhang

970

King Pin Diameter

90#

Min. Ground Clearance

285

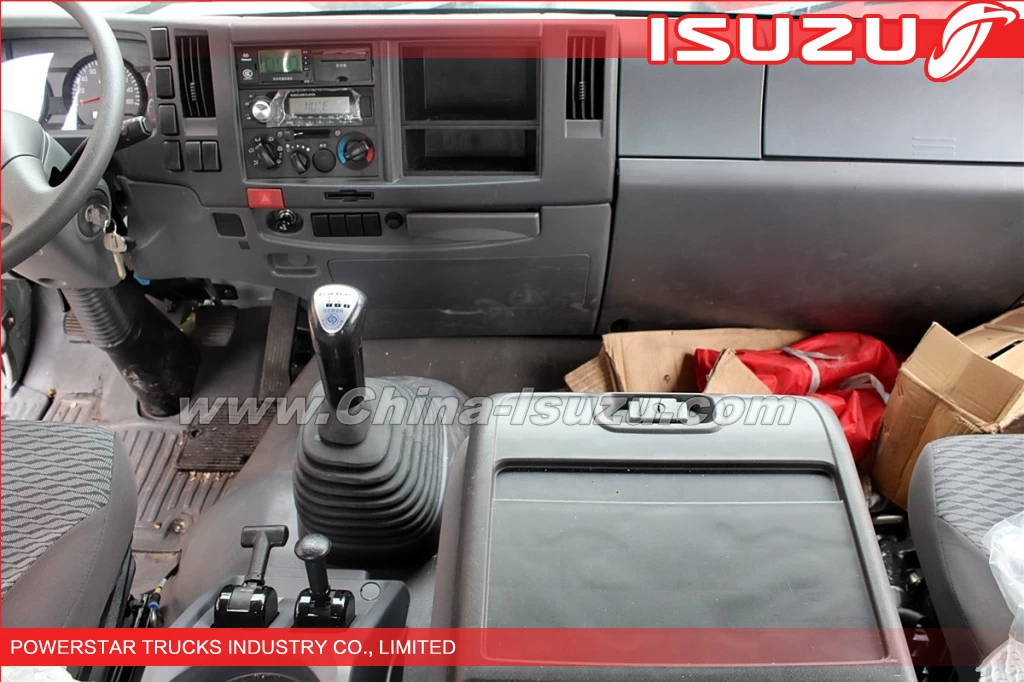

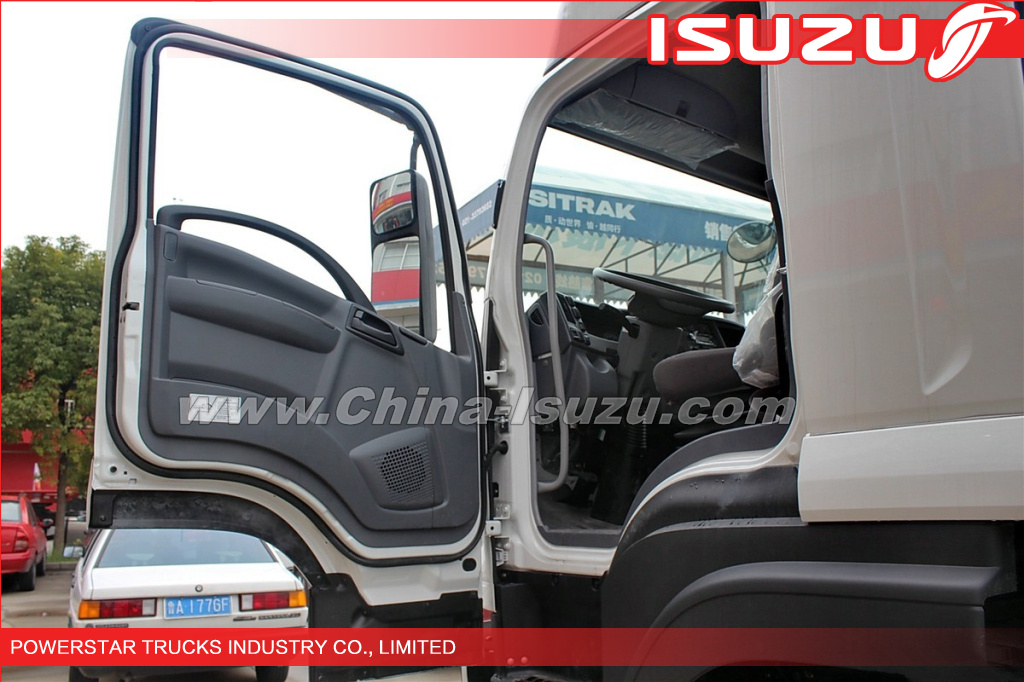

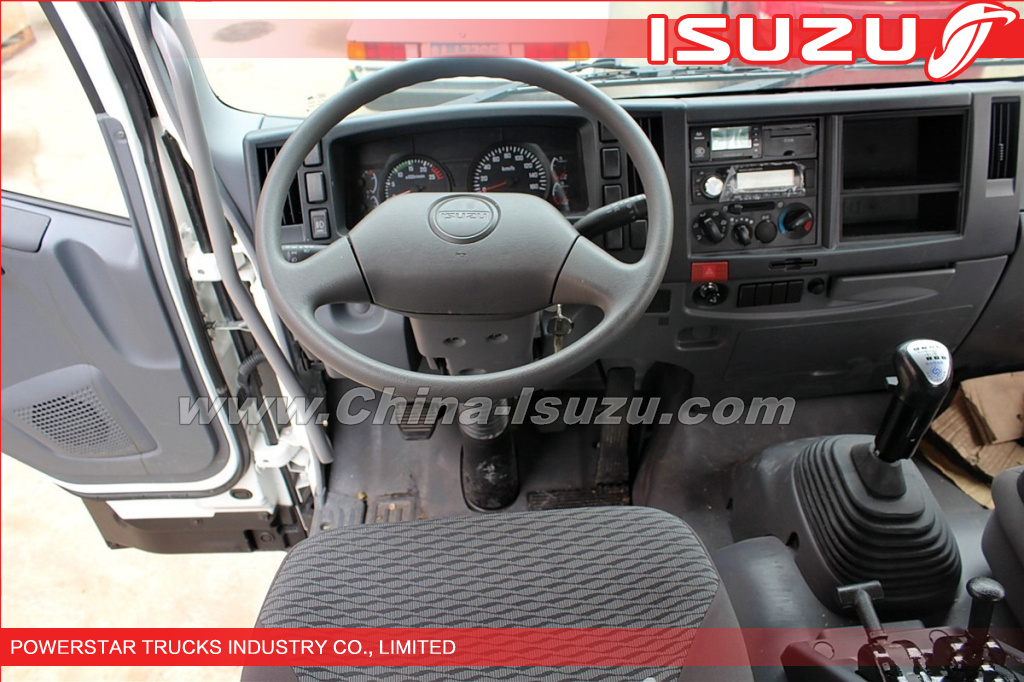

Cab

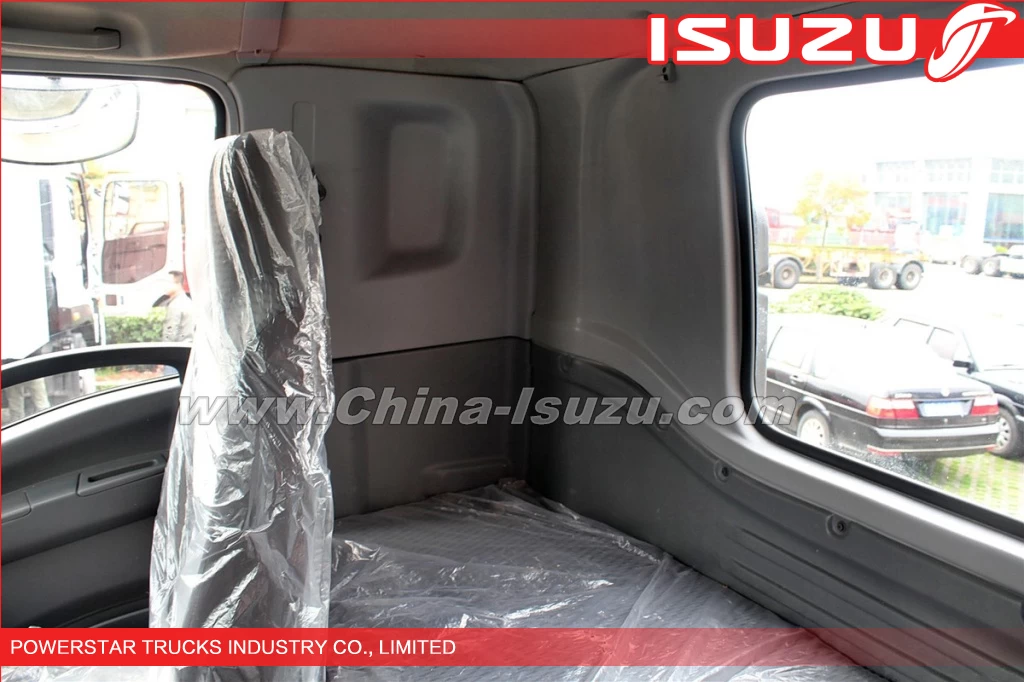

All-steel-welded construction, 3 seats with 1 sleeper

Engine

Model:

6UZ1-TCG40

Cylinder in Line

6

Capacity

9839 ml

Type

Diesel, turbo charged inter-cooled

Max. Power:

257/2000 KW/RPM

Max. Torque

1422/140 N.m/RPM

Gearbox

9JS119TA shift, mechanical type, 9 forward and 1 reverse with

Brakes

Type

2 independent pneumatic circuits, disc/drum

Parking

Mechanic with spring cylinder, rear

Emergency

Combined with parking brake

Engine

Decompression

ABS

Yes

Axles

Type

ISUZU exclusive high-performance axle

Loading

Front 9T

Rear 20T

Tyre

11.00-20

Fuel tank

400 L

Color

White

Max Speed

105 km/h
