N-2302-1-F00AA
|
|
Dimensions ：
|
5.1 cm x 15.2 cm x 15.2 cm
|
Weight：
|
0.2KG
|
|

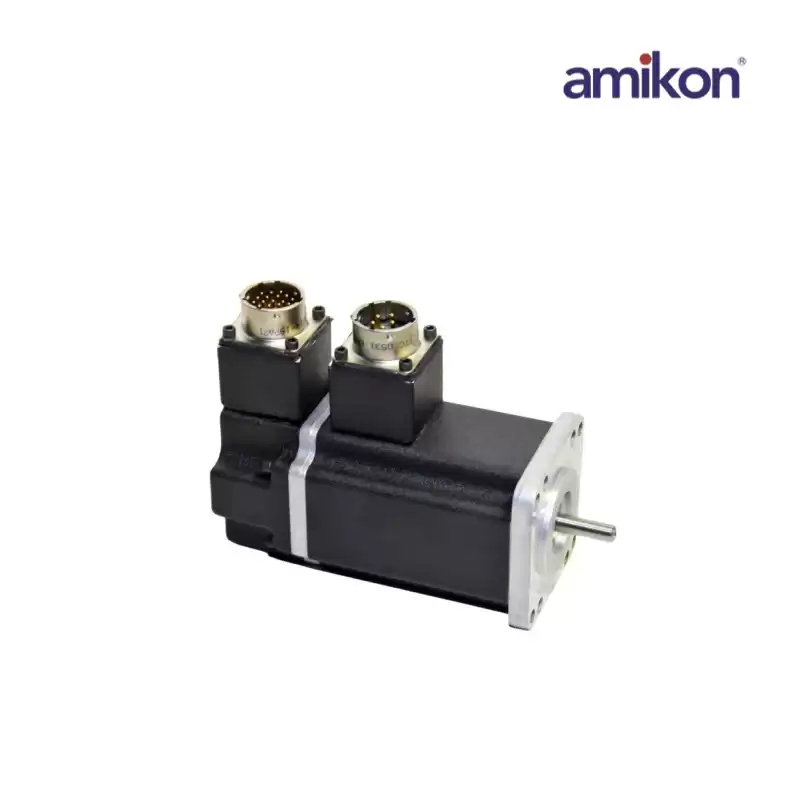

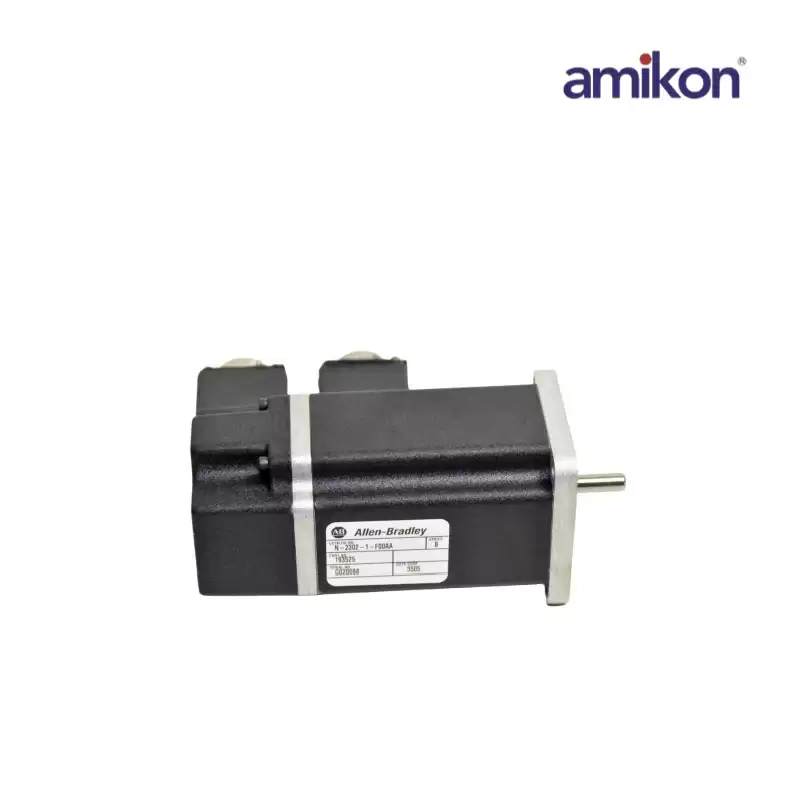

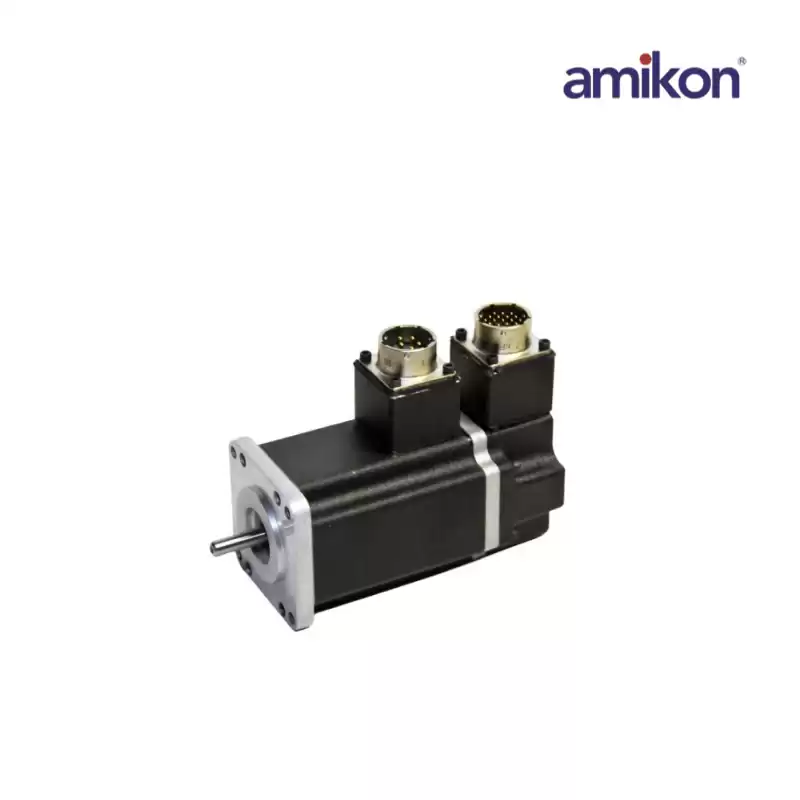

The N-2302-1-F00AA Brushless AC Servo Motor is an AC brushless servo motor in the N-Series of high-performance servo motors, which provides high-energy motor operation in a standard NEMA Type 56 frame size and continuous torque capability of up to 2 pounds on an inch which is suitable for industrial applications like web processing, printing and packaging, and material handling. This servo motor features a standard motor brake (a feature common to all N-Series motors), with a front flange and shaft dimension, and it is designed with up to a 1000 line count encoder device for enhancing the motor performance. The N-2302-1-F00AA has 115 Volts AC winding motor voltage, with 6000 RPM maximum operating rotor speed, and it has a continuous stall torque of 0.2 N-m, which peaks at 0.53 N-m. This servo motor which is made of 416-coded stainless steel material, has a rated damping value of 0.023N-m/KRPM, with maximum friction torque if 0.12 N-m, and it has a rated torque constant of 0.09N-m/A.
|
|
