N Landscape Solar Mounting Bracket System

Our N Landscape Solar Mounting Bracket System offers custom-designed solutions for all types of parking lots. It can be applicable for both commercial and residential. The whole structure is made of high strength extruding Aluminum alloy and the fastener is 304sus.


We offer customized service for single , double , triple , four or N carports together as per your request. Installing this type of solar system contributes to the community and the genuine concern for environment, while generating power that will make or save money.



  • SHIPPING PORTXIAMEN
  • PRODUCT ORGINXIAMEN CHINA
  • BRANDXHFSOLAR
  • SURFACEANODIZED
  • MAX WIND SPEED60m/s
  • COLORSILVER
  • SNOW LOAD 1.4KN/m²
  • APPLICATIONGROUND
  • DELIVERY7-30 DAYS
  • SERVICE LIFE20-25 YEARS
  • WARRANTY10 YEARS
  • PAYMENT TT/LC
  • MATERIALALU6005


Our N Landscape Solar Mounting Bracket System offers custom-designed solutions for all types of parking lots. It can be applicable for both commercial and residential. The whole structure is made of high strength extruding Aluminum Alloy and the fastener is 304 SUS.


By installing N Landscape Solar Mounting Bracket System, owners have the benefit of generating power in an easily accessible, pre-owned area to power their existing operations or to produce additional revenue by selling power back to the grid. It has been widely used in different countries all over the world.

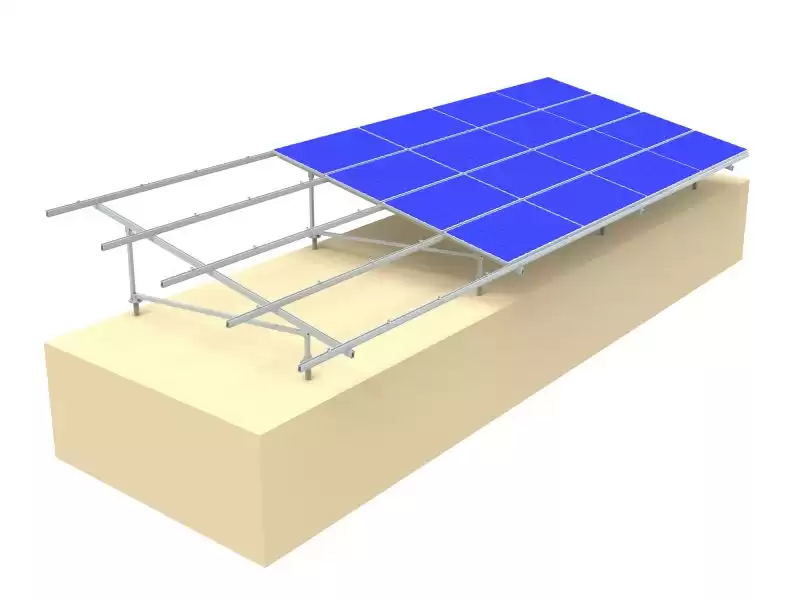

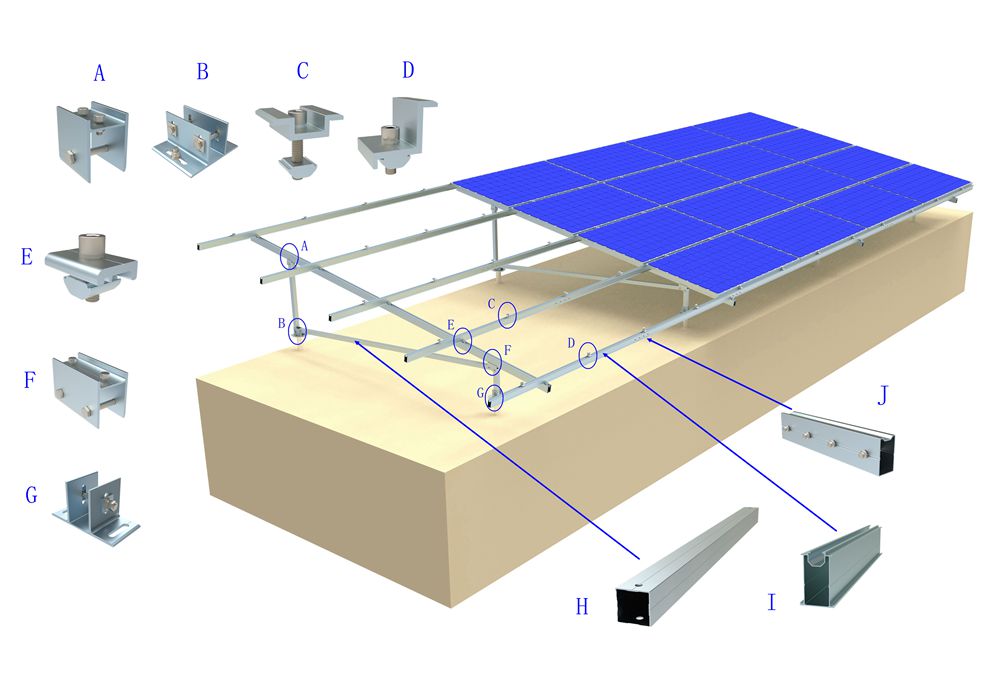

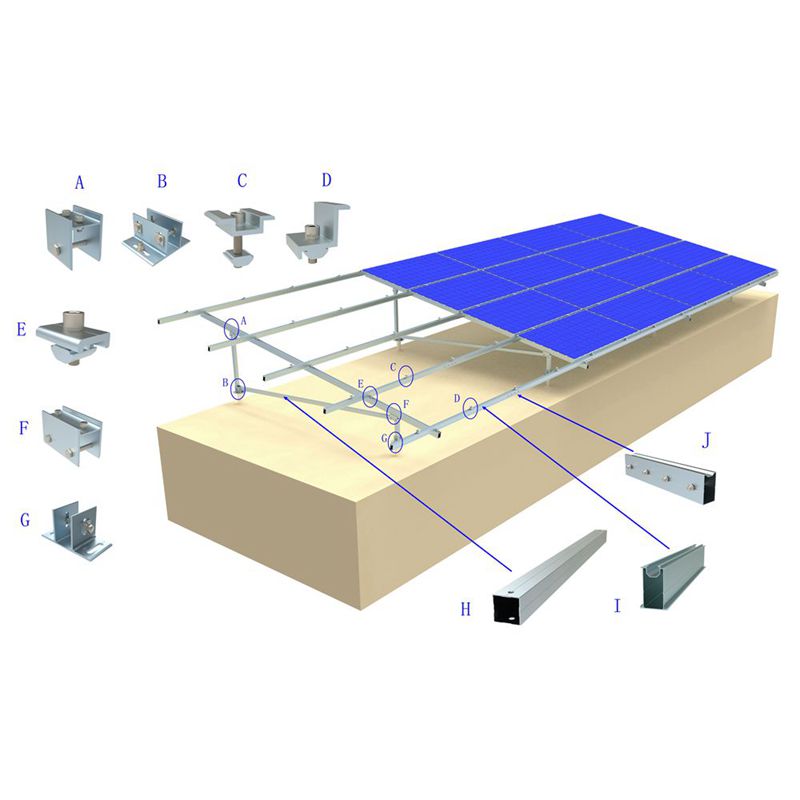

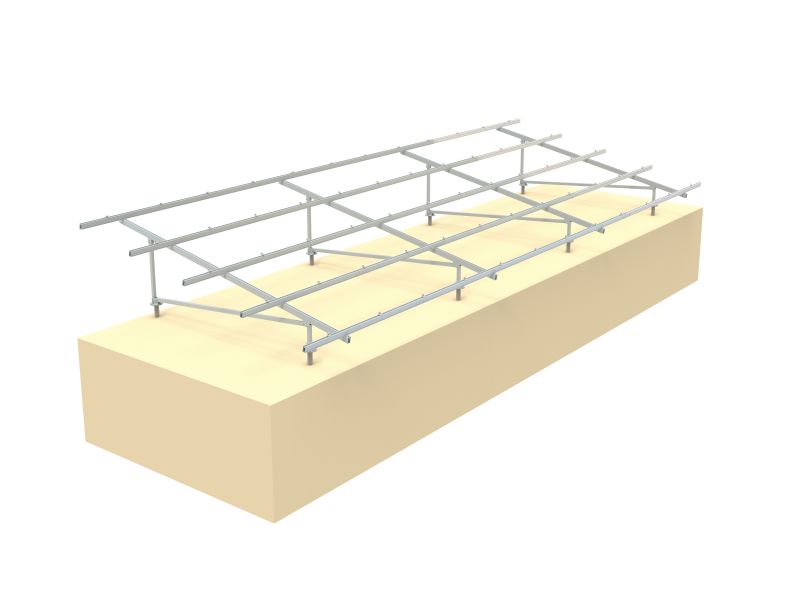

Landscape Solar Ground Mounting System

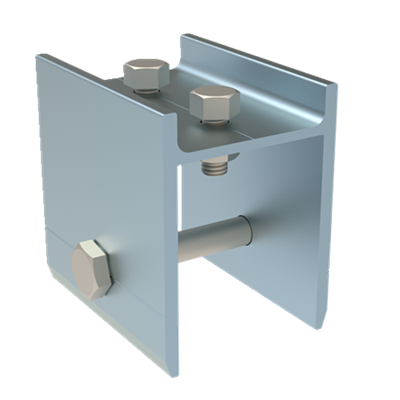

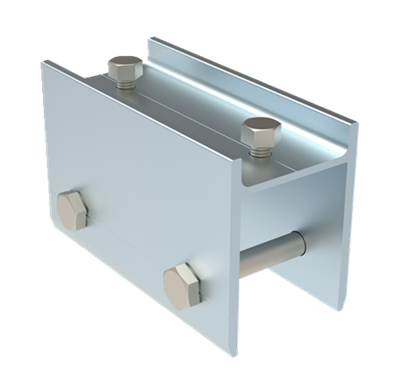

A: XHF-AG3-CH01 H Connect

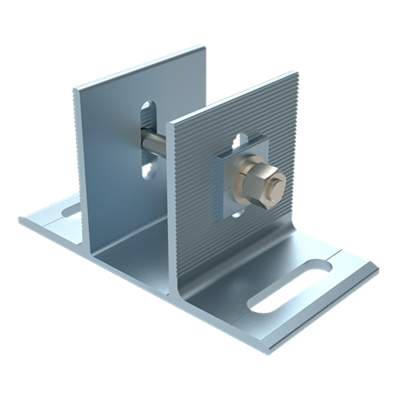

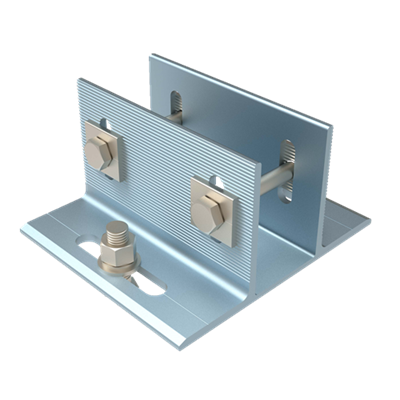

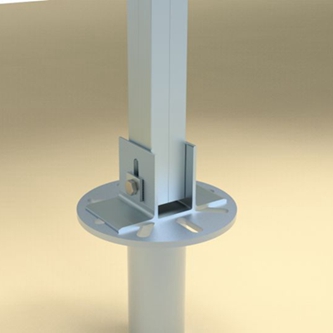

B: XHF-AG1-FS01 Foundation Base

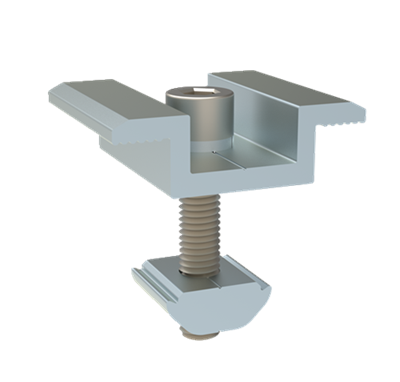

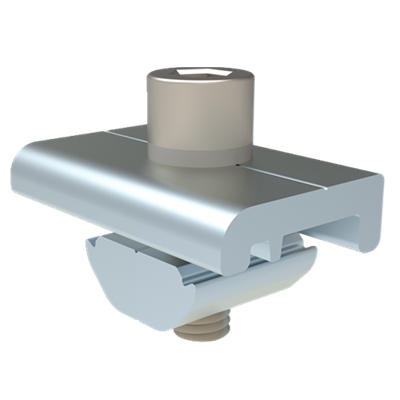

C: XHF-MC-35 Mid Clamp

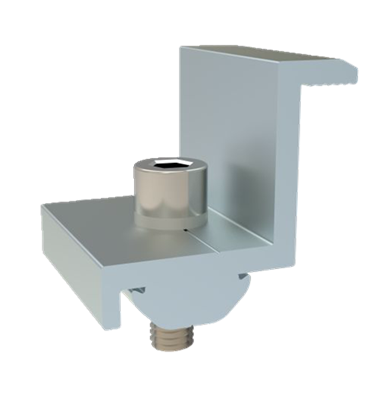

D: XHF-EC-35 End Clamp

E: XHF-BR-01#

F: XHF-AG3-CH02  H Connect

G: XHF-AG1-FS02 Foundation Base

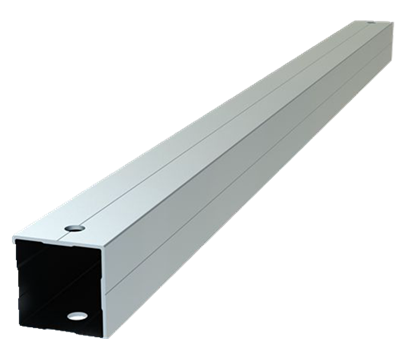

H: XHF-AG1-FL/RL/TL Front/Rear/Tilt Leg

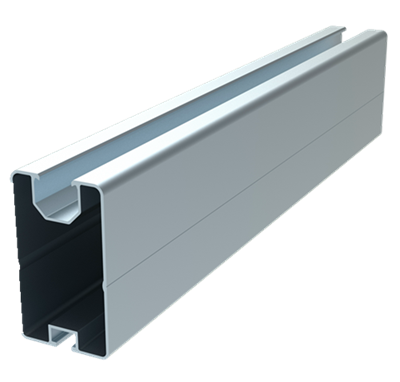

I: XHF-R01-1# Ground Rail

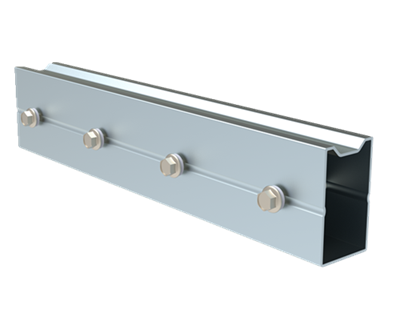

J: XHF-RS01  Rail Splice




Parameters
Application
Open Field Ground
Module Tilt Angle
5-20 degree
Max Wind Speed
60 m/s
Snow Load
1.4 KN/m2
Material
Aluminum 6005-T5
Carport Spots
Customized
Warranty
10 years warranty; 25 years service life.
Foundation
Ground Screw




Make use of the space effectively while generating electricity;
Economical multi-function structure, ideal to present image




1. Reduced power costs: owners can generate their own clean electricity on site instead of buying power from the utility company to reduce power costs. In addition, they can also sell extra electricity back to the grid to get more money.
2. Make full use of the space: install solar panels on solar carport is a perfect way to make full use of the valuable real estate.
3. Flexible Application: This system not only can be installed on ground screw for standard circumstance but also installed on concrete foundation for tricky terrain like soft or rocky ground.
4. Fast Installation: Most of parts are pre-assembled.

5. Bring more investment benefits

6. Long lifespan: All mounting structural components are made of high aluminum alloy, they are resistant to corrosion and are complete recyclable.

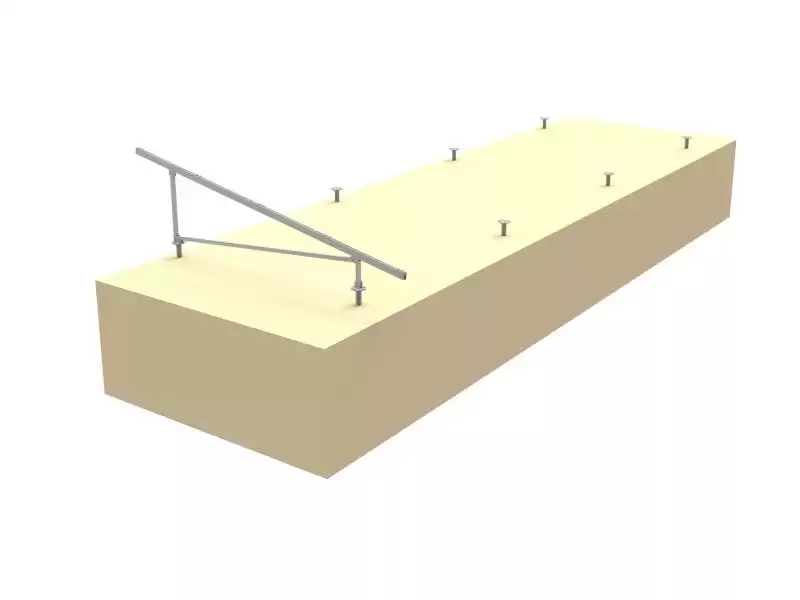

Step 1:

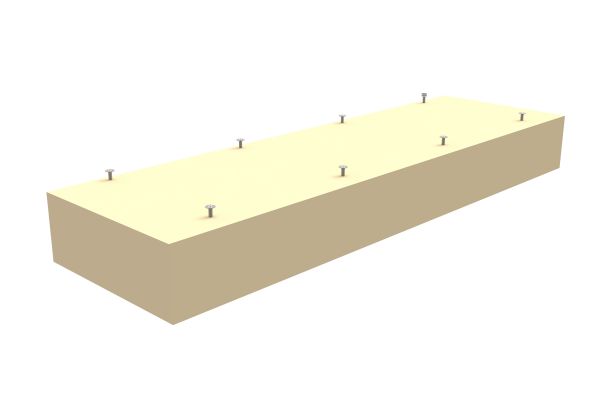

Drive the ground screw to the same depth

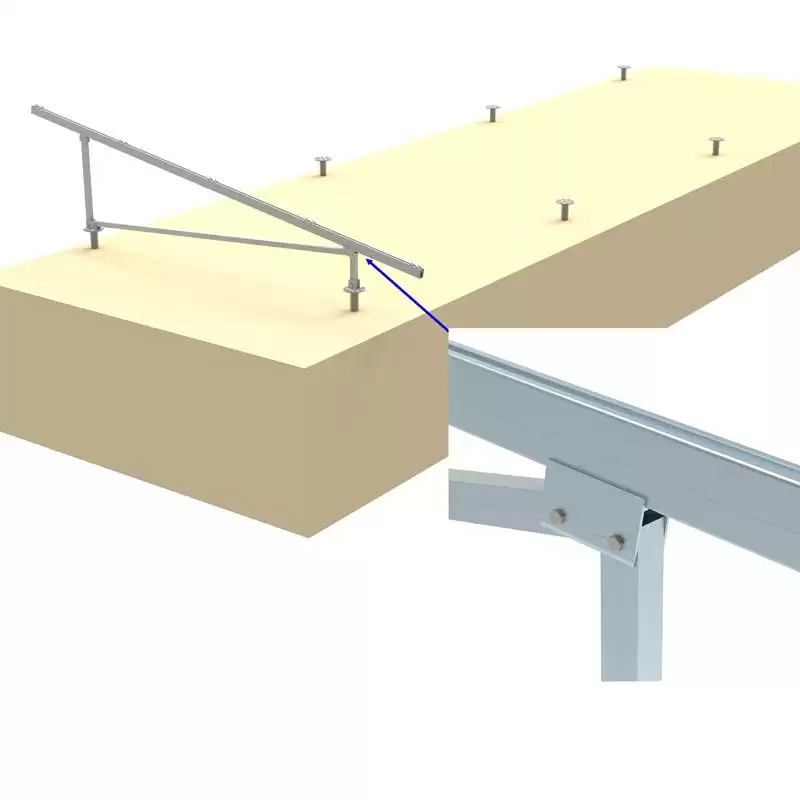

Step 2:

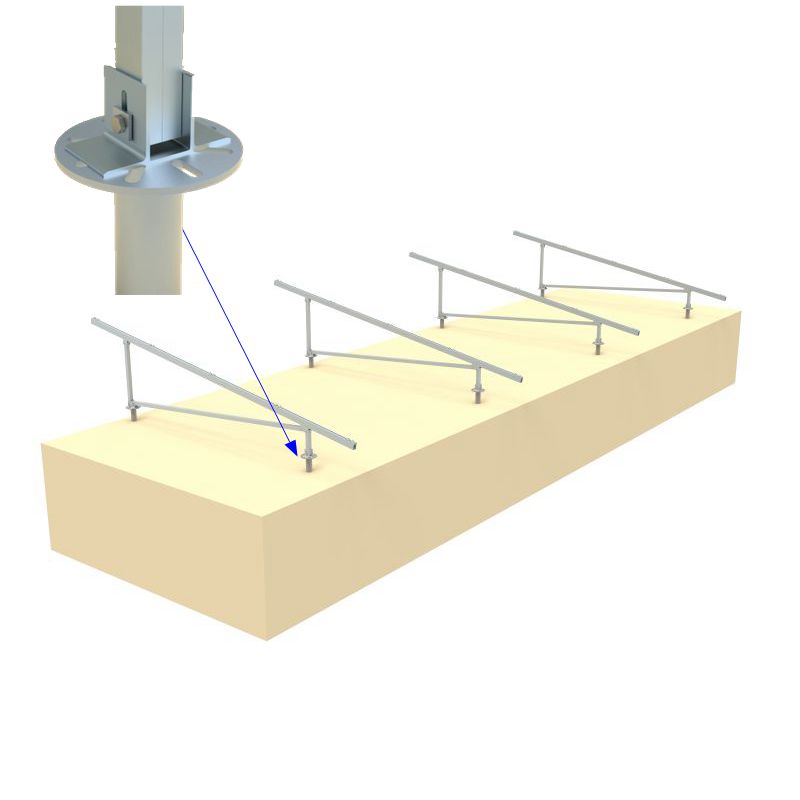

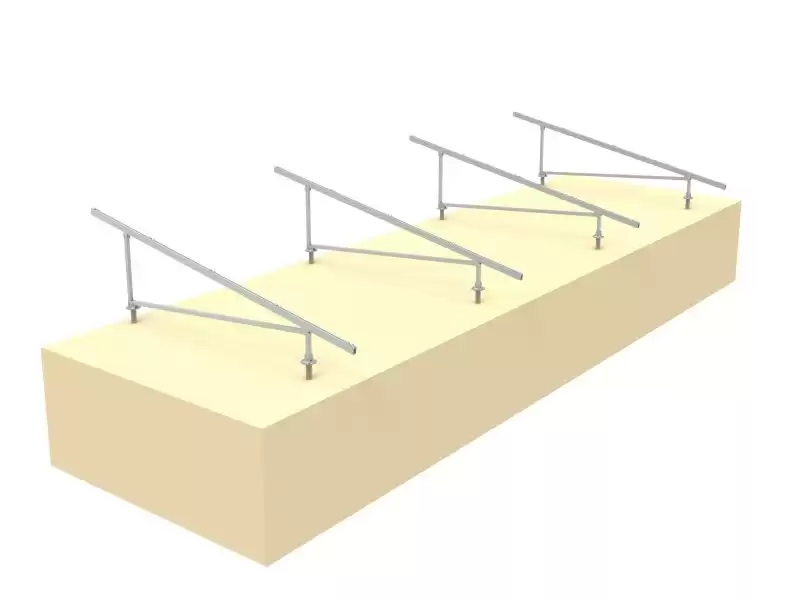

Fix pre-assembled beam

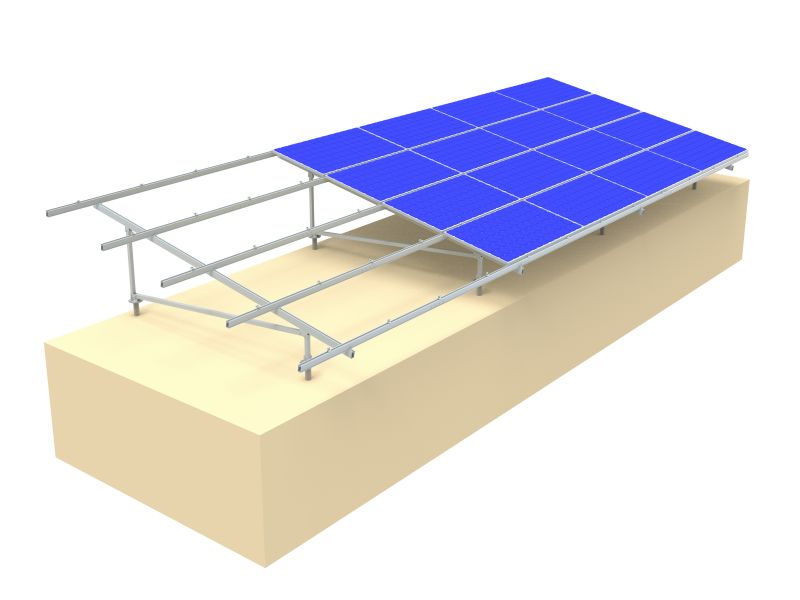

Step 3:

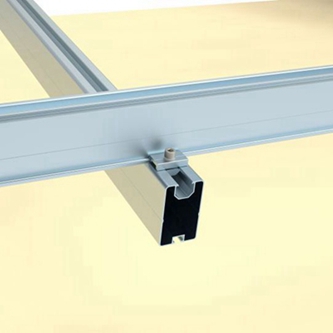

Fix  rails on beams

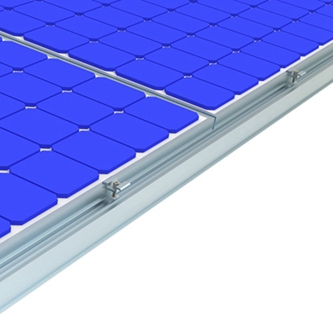

Step 4:
Fix panel on rail until finish





Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.


We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating PV mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.


Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.


Price
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
Quality
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
Market
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
Delivery time
7-30 days
Payment term
Flexible
Tech support
OEM,OGM
After Service
10 years warranty+ 25 long service
