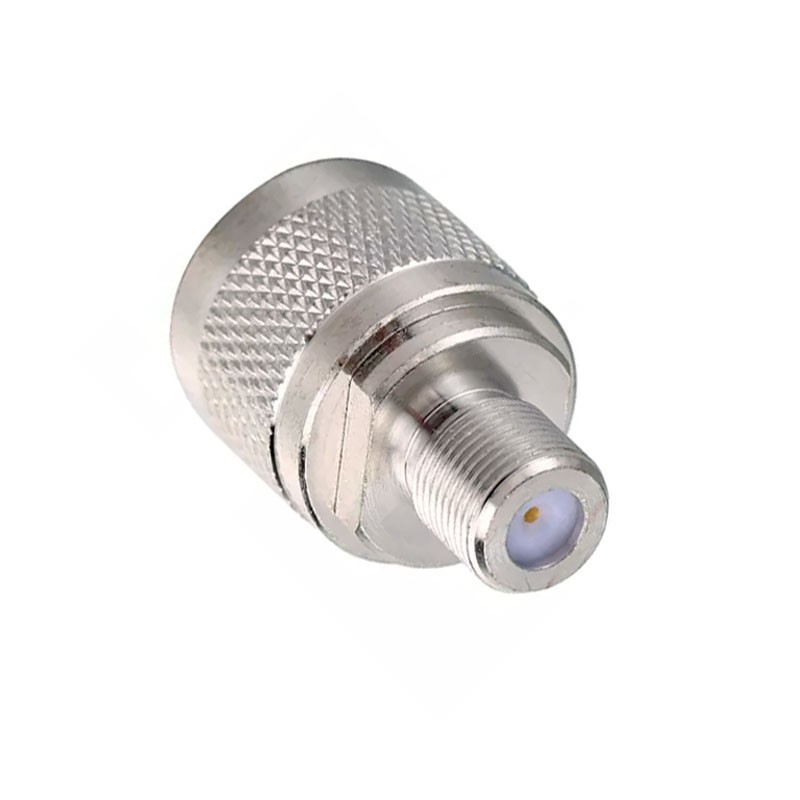

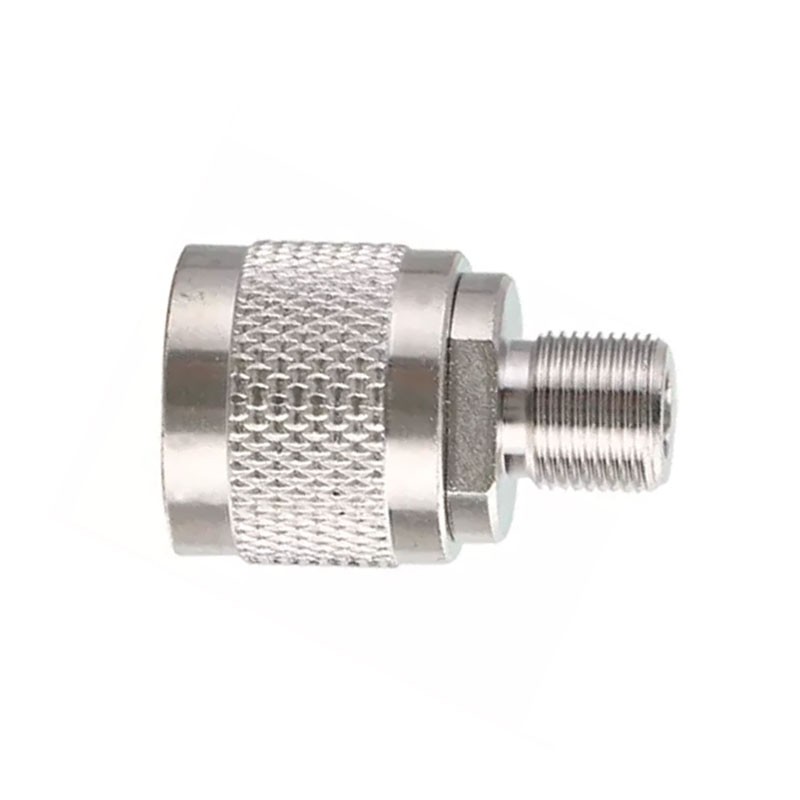

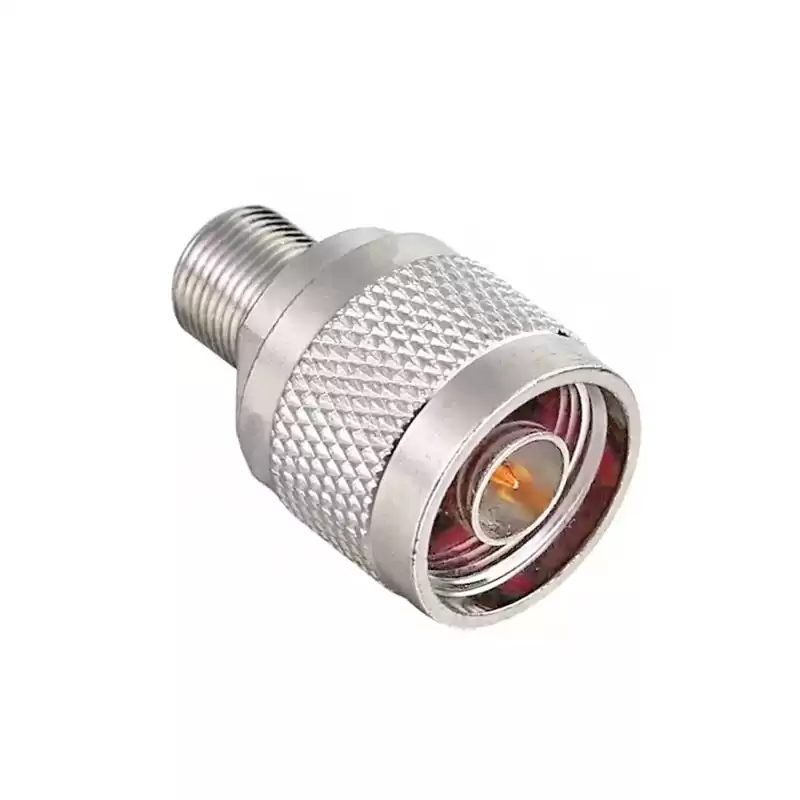

N Male to F Female Straight RF Connector Adapter
N type adapters Features：
- Allow to interface N connectors with N, QMA, QN, SMA, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7-16 DIN, 4.3-10, BNC, MCX, UHF, SMB, TNC or UHF connectors;
- Satisfy for a durable, weatherproof, medium-size RF adapter with consistent performance;
- High frequency range up to 8GHz;
- Threaded coupling mechanism, used in all systems where excellent RF and mechanical performance.
N Male to F Female Straight RF Connector Adapter
The N Type Adapter has N to F standard polarity adapter gender. The N to F adapters has female to female, female to male, male to female or male to male gender, it has 50ohm or 75ohm impedance standard polarity, and has straight body. This N male to F female adapter has a maximum frequency of 1GHz, and is a straight RF adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | N-Type |
| Adapter Side 1 Style | Plug/Male |
| Adapter Side 2 Series | F-Type |
| Adapter Side 2 Style | Jack/Female |
| Frequency (Max GHz) | 1 |
| Impedance (Ohms) | 50 or 75 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material | Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Base stations
- Broadcast systems
- Radar equipment
- Microwave Radio
- Outdoor antennas
- Wireless LAN
- Satellite systems
- Surge protection
