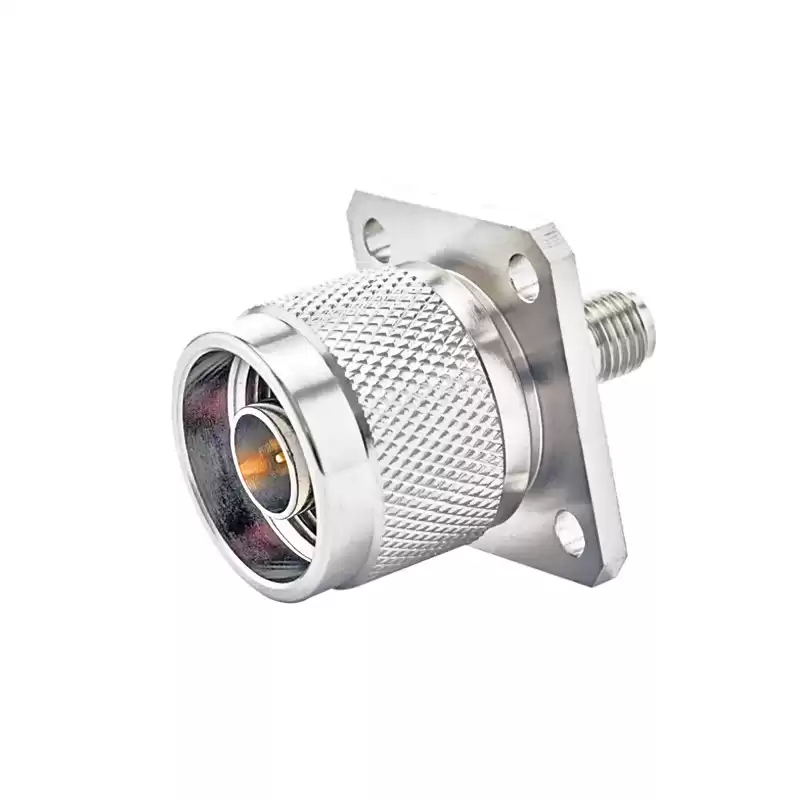

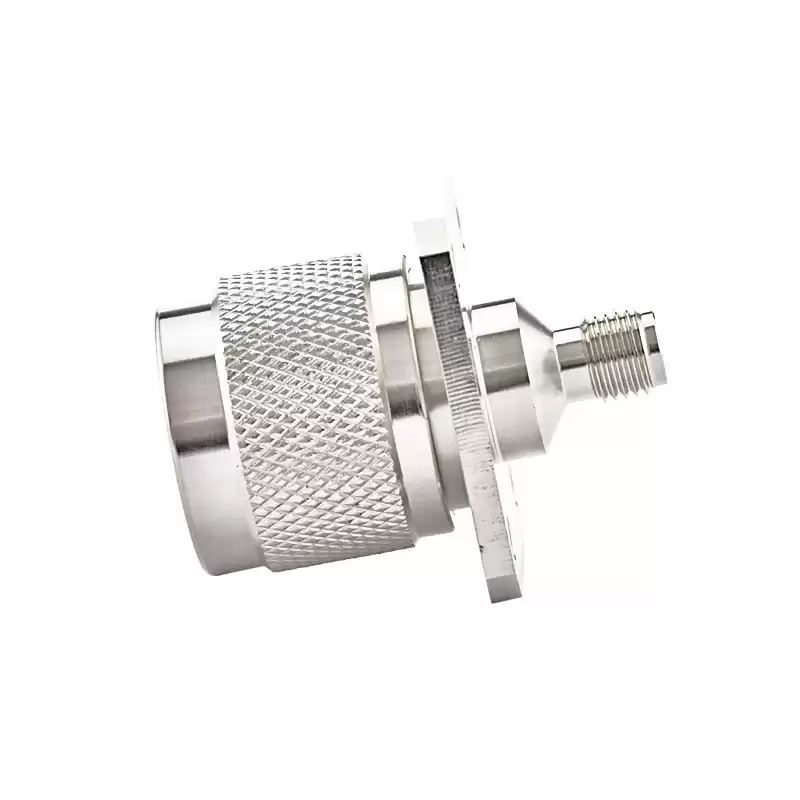

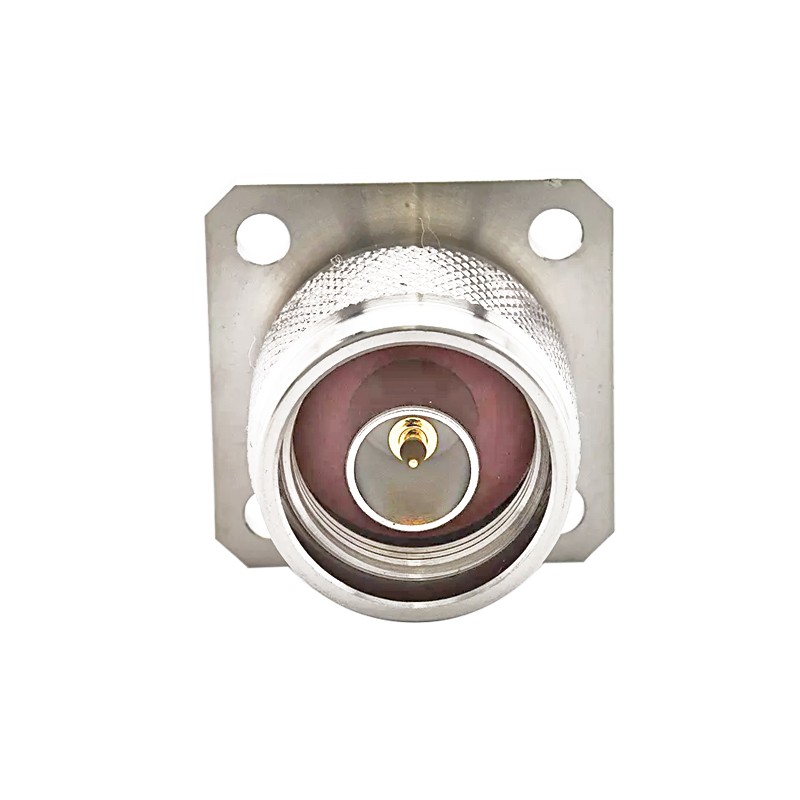

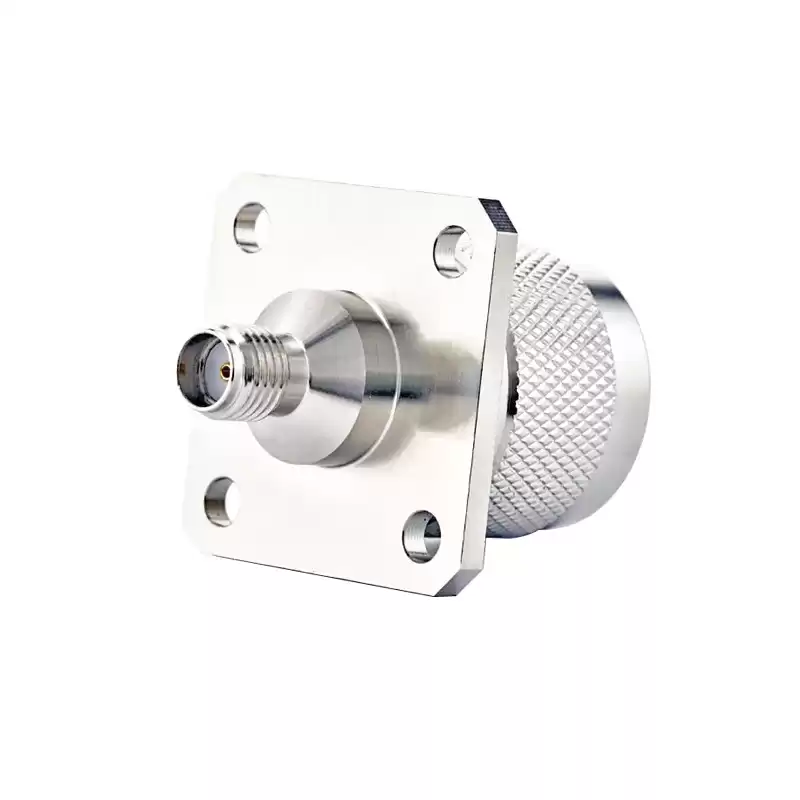

N Male to SMA Female 4 Hole Flange Mount Straight RF Connector Adapter
The N Type Adapter has N to SMA standard polarity adapter gender. The N to SMA adapters has female to female, female to male, male to female or male to male gender, and has bulkhead, 4 hole panel or mountless configurations. ROHO's N to SMA standard polarity adapters are available in standard interfaces; it has 50ohm impedance standard polarity, and has straight body. ROHO offers low PIM or high performance designs.This N male to SMA female adapter has a maximum frequency of 12.4GHz, and is a straight RF adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
N-Type |
| Adapter Side 1 Style |
Plug/Male |
| Adapter Side 2 Series |
SMA |
| Adapter Side 2 Style |
Jack/Female |
| Frequency (Max GHz) |
12.4 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
| Body Material |
Brass |
Body Finish
|
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Base stations
- Broadcast systems
- Radar equipment
- Microwave Radio
- Outdoor antennas
- Wireless LAN
- Satellite systems
- Surge protection
