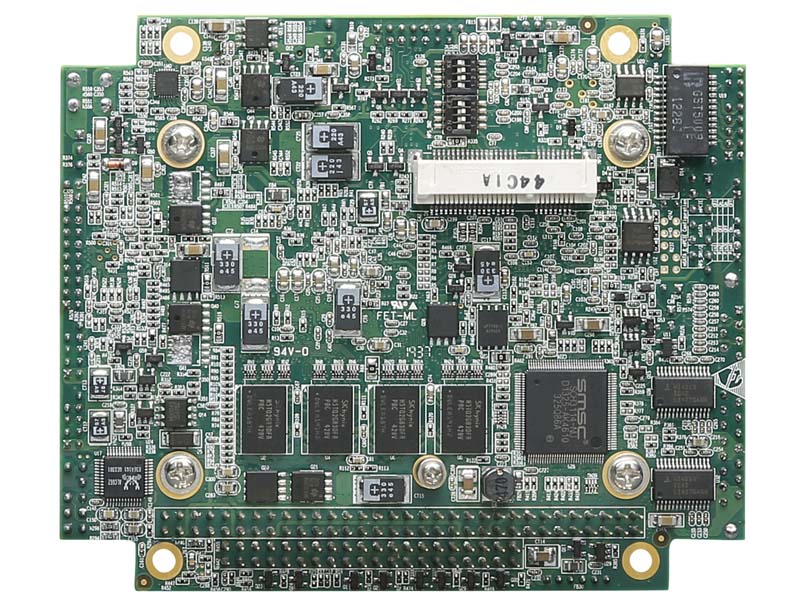

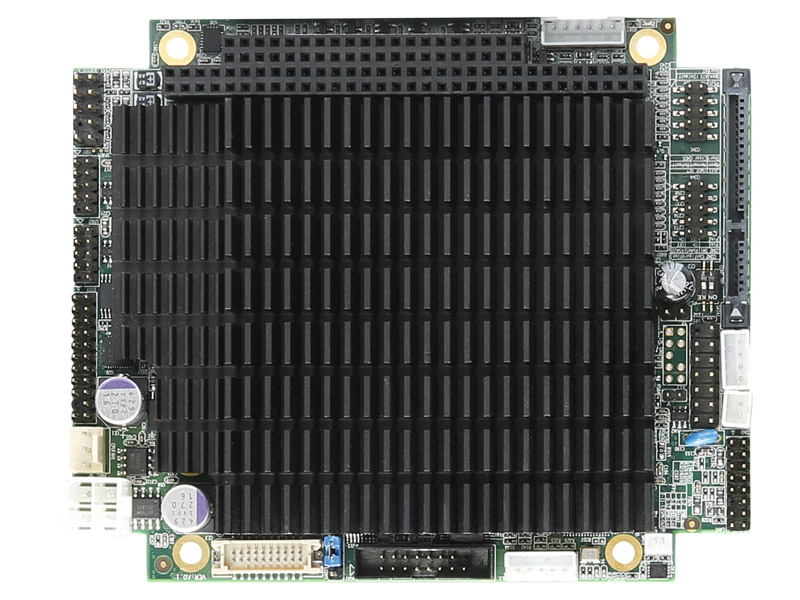

N2600 PC104 Motherboard 2G Memory 1LAN 4COM 4USB

104-N2600DL144

PC104 single board computer Motherboard, Soldered on Board Intel® N2600 CPU, 2G Memory, 1LAN 4COM 4USB



PC/104 Motherboard Soldered on Board Intel® N2600 CPU, 2G Memory, 1LAN 4COM 4USB



Product Introduction

Unleash unparalleled performance with our PC/104 Motherboard featuring a soldered-on board, powered by the robust Intel® N2600 CPU. Elevate your computing experience with 2GB of lightning-fast memory. Experience seamless multitasking and reliability, tailored to meet your industrial needs.



Product Features

■ Soldered on board Intel®N2600 CPU

■ Soldered on board 2G DDR3 Memory

■ 1×LAN gigabit network

■ VGA,LVDS interface

■ 4COM(2RS232 + 1RS422 / 485 + RS485)

■ 4USB2.0

■ 16bit GPIO

■ PC/104

■ 1〜255S watchdog

Specification

CPU/GPU

Soldered on board Intel® N2600 CPU

Memory

Soldered on board 2GB DDR3 SDRAM

Storage

1×SATA,1 MSATA(MINI PCIE optional)

Sound card

Realtek HD Audio

NIC

1×LAN gigabit network

Graphic card

CPU integrated graphic

Display interface

1×VGA,  1× LVDS

USB2.0

4

GPIO

16bit

COM

2 RS232 ,  1RS422/RS485,  1RS485

Board I / O

4USB2.0 ,  2RS232,  1RS422/485,  1RS485, VGA,  LAN,  Audio ,  CLR_CMOS ,

CPU fan power ,  GPIO,  Front panel ,  4P DC in,  LVDS,  invert,  PS/2 KB/MS

Expansion

PC / 104,MINI PCIE(optional)

System

Support Windows(WINXP,WIN 7 ...),Linux



Mechanical & Environmental

Power supply

DC 12V

Heat dissipation

Cooling fin

Size(L×W)

96mm×116mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environment humidity

0~90% air humidity,no condensation

Packing list

104-N2600DL144 motherboard×1,SATA data cable×1,SATA power cable×1,COM cable×4



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
