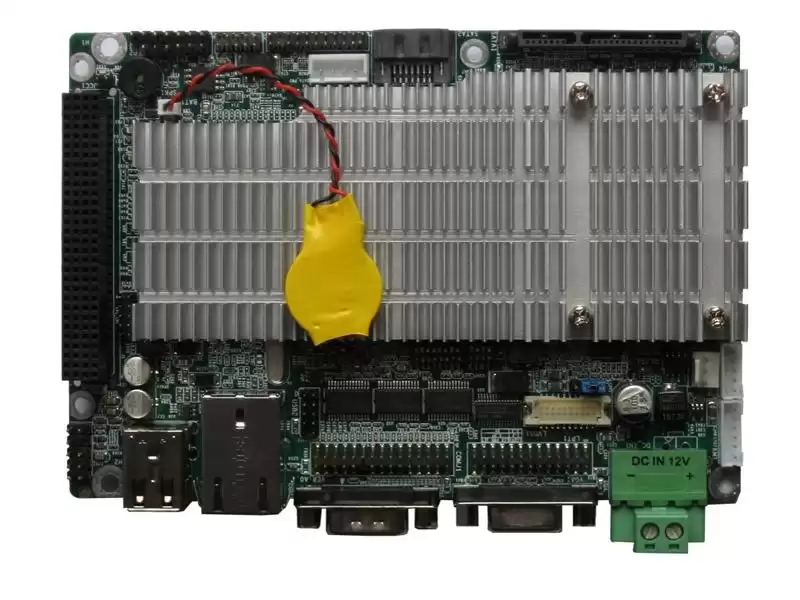

3.5 Inch Single Board Computer Soldered On Board Intel® N455 or N450 CPU And 1G Memroy, PCI-104(PC104 PLUS) Expend, 1LAN 4COM 6USB
Product Introduction
The 3.5" embedded board is created in an architecture of low power consumption with reliability required for various applications in rugged environments. The form factor is an integrated interface standard defined by Yanyue and has been used as one of our 3.5" embedded form factor single board computers to meet concerns about the lack of expansion interfaces in small form factor (SFF) single board computers.
Product Features
■ Soldered On-board Intel® N455 or N450 CPU
■ 1G DDR2 Memory Soldered on board
■ 1 Gigabit LAN
■ VGA, LVDS Display Interface
■ 4COM RS232 (COM2 supports RS422 / 485)
■ 6USB2.0, Support CF card
■ 16-bit GPIO
■ PCI-104(PC104 PLUS)
■ 1~255S reset watchdog
|
Specification
|
|
CPU/GPU
|
Soldered On-broad Intel® N455 or N450 CPU
|
|
Memory
|
Soldered On-broad1GB DDR2 SDRAM
|
|
Storage
|
2×SATA，1 CF slot
|
|
Sound card
|
Realtek HD Audio
|
|
Ethernet
|
1LAN(Gigabite Network)
|
|
Graphics Board
|
Integrated Intel HD graphics card
|
|
Display Interface
|
1×VGA, 1× LVDS
|
|
USB2.0
|
6
|
|
USB3.0
|
0
|
|
GPIO
|
16bit
|
|
COM
|
4COM(RS232)， COM2 Support RS422 / RS485
|
|
Backplane I / O
|

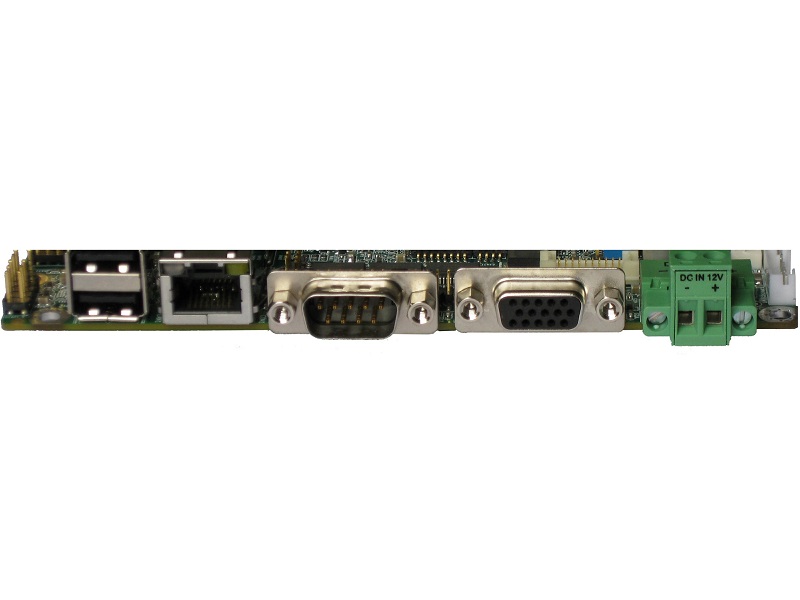

DC in, VGA, COM 1 RJ45 LAN, 2USB2.0
|
|
Board I / O
|
4USB , 3 COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO
Front panel , 4P DC in(optional), LVDS, invert, Print, PS/2 KB/MS
|
|
Expand
|
PCI-104(PC104 Plus)
|
|
System
|
Support Windows（WINXP，WIN 7 ...），Linux
|
|
Mechanical & Environmental
|
|
Power supply
|
DC 12V
|
Heat dissipation
|
Heat Sink
|
Size(L×W)
|
146mm×102mm
|
|
Working temperature
|
-15~55℃
|
Storage temperature
|
-40~75℃
|
Environmental humidity
|
0~90% air humidity,no condensation
|
|
Packing List
|
ES3-N4551DL146 Motherboard×1，SATA Data Cable×1，SATA Power Supply Cable×1，COM Cable×3，USB Cable x1
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
