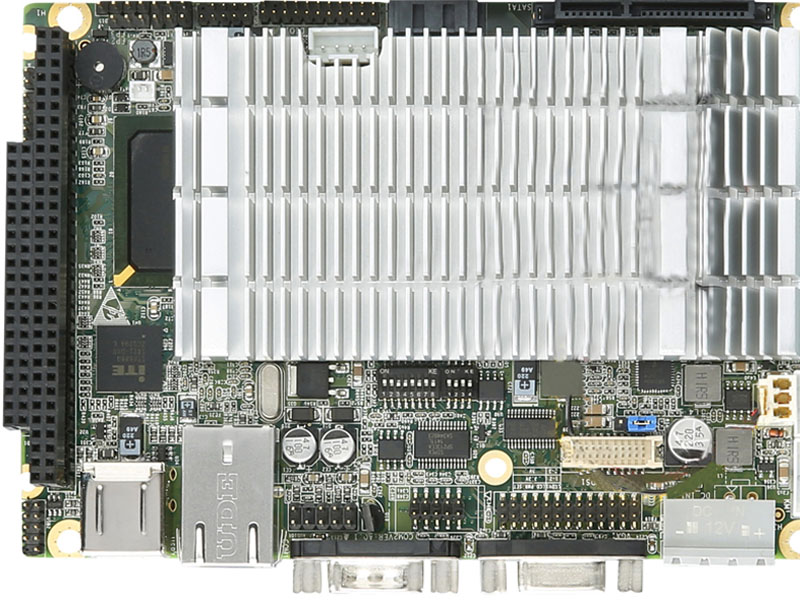

N455 3.5" Embedded Motherboard with 1G Memory 1LAN 2COM 6USB

ES3-N4552DL126

3.5" Embedded Motherboard, Soldered on Board Intel® N455/N450 CPU and 1G Memory,  PC/104 Expansion



ES3-N4552DL126

3.5" Embedded Motherboard, Soldered on Board Intel® N455/N450 CPU and 1G Memory,  PC/104 Expansion



Product Introduction

When it comes to 3.5" Embedded Motherboards, our commitment to excellence is unwavering. We prioritize customer satisfaction, and our product is backed by top-notch customer support to ensure you get the most out of your investment.



Product Features

■ Soldered on board Intel®N455/N450 CPU

■ Soldered on board 1G DDR2 Memory

■ 1×LAN gigabit network

■ VGA,LVDS interface

■ 2COM RS232(1 RS422 / 485 )

■ 6USB2.0

■ 16bit GPIO

■ PC/104

■ 1〜255S watchdog

Specification

CPU/GPU

Soldered on board Intel® N455 or N450 CPU

Memory

Soldered on board 1GB DDR2 SDRAM

Storage

2×SATA ,1 CF socket

Sound card

Realtek HD audio

NIC

1×LAN gigabit network

Graphic card

CPU integrated graphic

Display interface

1×VGA,  1× LVDS

USB2.0

6

GPIO

0

COM

16bit

Memory

2×RS232,/ COM2 support RS422 / RS485

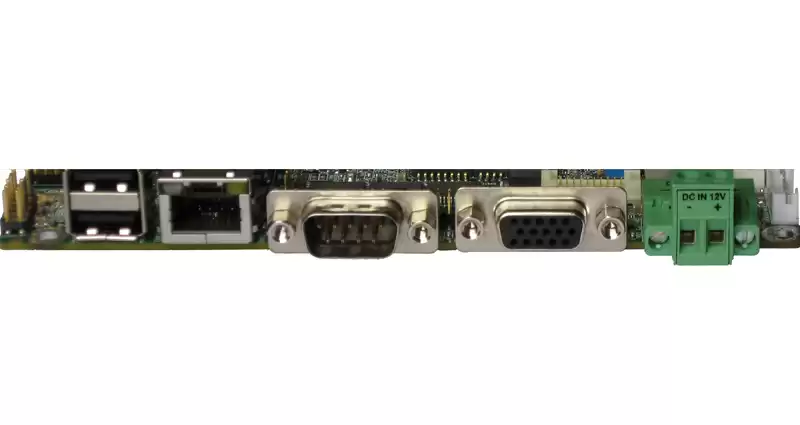

Backplane I / O

DC in,  VGA,  COM  1 RJ45 LAN,  2USB2.0

Board I / O

4USB ,  1 COM ,  front audio ,  CLR_CMOS ,  CPU fan power ,  System fan power , GPIO

Front panel ,  4P DC in(optional),  LVDS,  invert,  Print,  PS/2 KB/MS

Expansion

PC/104

System

Support Windows(WINXP,WIN 7 ...),Linux



Mechanical & Environmental

Power supply

DC 12V

Heat dissipation

Cooling fin

Size(L×W)

146mm×102mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environment humidity

0~90%空气湿度,无冷凝

Packing list

ES3-N4552DL126motherboard×1,SATA data cable×1,SATA power cable×1,COM cable×1



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.


Product Tags 3.5 inch Embedded Motherboard          N455 N450 single borad computer          3.5" Embedded Motherboard          N450 N455 3.5 inch motherboard          3.5" Board with pc104          N450 Embedded moteherboard
