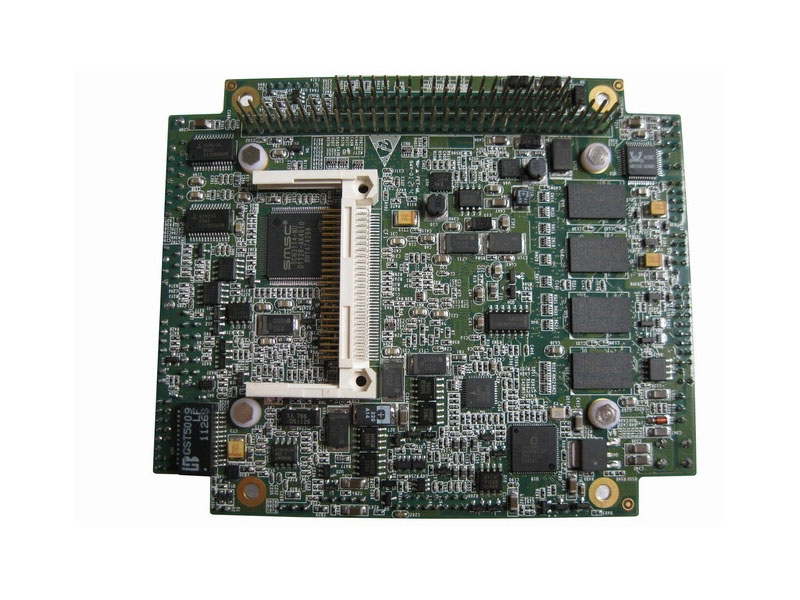

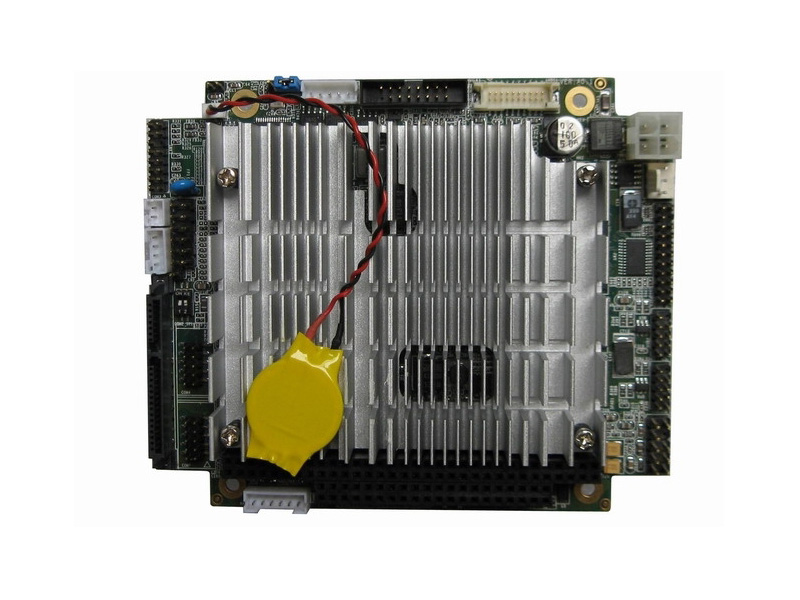

Single Board Computer PC104 Motherboard Soldered On Board Intel N455 or N450 CPU and 1G Memory, PC104 Expansion, 16bit GPIO
Product Introduction
104-N4552DL144 Single Board enable and accelerate high-performance device development. Our versatile, reliable solutions can be applied in a variety of industries with near endless functions. Infuse your device with powerful processing, real-time connectivity, and unwavering reliability, all in a module as small as a dime.
As product-ready solutions, our 104-N4552DL144 Single Board are fully tested and ready to be integrated into your devices. Jumpstart your product development with an off-the-shelf 104-N4552DL144 Single Board that already has the relevant regulatory certifications, then rest easy knowing our team provides US-based, in-house support for the entire product lifecycle.
Product Features
■ Intel® N455/N450 CPU on board
■ 1G DDR2 memory on board
■ 1 Gigabit LAN port
■ VGA, LVDS interface
■ 4COM (2RS232 + 1RS422 / 485 + RS485)
■ 4USB2.0
■ 16-bit GPIO
■ PC104 expansion
■ 1 to 255S reset watchdog
System
| CPU/GPU |
Fan Free Design of Intel N455 1.66G CPU, |
| Chipset |
Intel® 82801HBM(ICH8-M) |
| Memory |
1 gigabyte DDR2 memory, stable and reliable |
| Storage |
1×SATA , 1× CF card holder |
| Sound card |
Realtek HD Audio |
| Ethernet |
1 × Realtek RTL8111E gigabit network card |
| Display |
Chip integrated display card |
| LVDS |
Single channel 18/24-bit LVDS |
| Double display |
VGA+LVDS synchronous / asynchronous dual display |
| COM |
4×COM RS-232， of which 1 can be set to RS422/RS485, and 1 can be set to RS485 |
| USB |
4× USB pin |
| Backplane I / O |
None |
| Board I / O |
1×VGA pin, 1×LVDS pin, 1×Invert pin, 1×audio pin, 1×front panel pin, 1×buzzer |
| 4×COM pin, 4USB 2.0 pin, 1×GPIO pin (16 position), 1×LPT pin |
| 1×CLR_CMOS pin, 1×4-PIN DC power input interface, 1×CPU fan power outlet |
| Expand |
1 PCI104 extension (104-N4551); 1 PC104 extension (104-N4552) |
| Specific function |
Support for watchdog, diskless startup, network wakeup, power on and timing |
Mechanical & Environmental
| Power supply |
DC 12V |
Heat dissipation |
Fan |
Size(L×W) |
96mm×116mm |
| Working temperature |
-20~60℃ |
Storage temperature |
-40~80℃ |
Environmental humidity |
0~95% air humidity,no condensation |
| Packing list |
104-N455CMLDNA motherboard |
×1 |
VGA line |
×1 |
| Drive disc |
×1 |
P/S2 line |
×1 |
| COM line |
×4 |
Mesh line |
×1 |
Application area
Industrial BOX, industrial tablet computer, industrial automation, on-board computer, medical treatment, digital sign, advertisement machine, POS cash register, etc.
Order information
| 104-N4551CMLDNA PC/104 motherboard with N455 or N450 CPU, 1G memory, PCI104(PC104 PLUS) extension, 1LAN 4COM 4USB |
| 104-N4552CMLDNA PC/104 motherboard with N455 or N450 CPU, 1G memory, PC104 extension, 1LAN 4COM 4USB |
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
