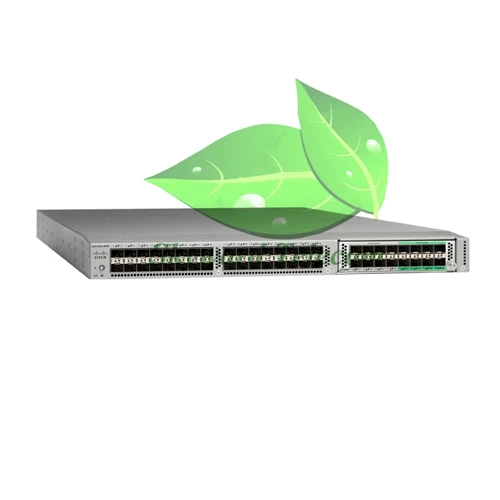

N5K-C5548UP-FA Nexus 5548 UP Chassis. 32 10GbE Ports. 2 PS. 2 Fans

Today-*-s data centers are increasingly filled with dense rack-mount and blade servers that host powerful multicore processors. The rapid increase in in-rack computing density and the increasing use of virtualization software combine to accelerate the demand for 10 Gigabit Ethernet and consolidated I/O: applications for which the Cisco Nexus 5000 series switches are an excellent match. With low latency, front-to-back cooling, and rear-facing data ports, the Cisco Nexus 5000 series is designed for a broad range of physical, virtual, storage access, and high-performance computing environments, thus giving customers the flexibility to meet and scale their data center requirements in a gradual manner and at a pace that aligns with their business objectives.The switch series, using cut-through architecture, supports line-rate 10 Gigabit Ethernet on all ports while maintaining consistently low latency independent of packet size and services enabled. It supports a set of network technologies known collectively as Data Center Bridging (DCB) that increases the reliability, efficiency, and scalability of Ethernet networks. These features allow the switches to support multiple traffic classes over a lossless Ethernet fabric, thus enabling consolidation of LAN, SAN, and cluster environments. Its ability to connect Fiber Channel over Ethernet (FCoE) to native Fiber Channel protects existing storage system investments while dramatically simplifying in-rack cabling.In addition to supporting standard 10 Gigabit Ethernet network interface cards (NICs) on servers, the Cisco Nexus 5000 series integrates with multifunction adapters called converged network adapters (CNAs) that combine the functions of Ethernet NICs and Fiber Channel host bus adapters (HBAs), making the transition to a single, unified network fabric transparent and consistent with existing practices, management software, and OS drivers. The Cisco Nexus 5000 series is designed for data center environments with cut-through technology that enables consistent low-latency Ethernet solutions, with front-to-back cooling, and with data ports in the rear, bringing switching into close proximity with servers and making cable runs short and simple. The switch series is highly serviceable, with redundant, hot-pluggable power supply and fan module.The Cisco Nexus 5548UP Switch delivers innovative architectural flexibility, infrastructure simplicity, and business agility, with support for networking standards. For traditional, virtualized, unified, and high-performance computing (HPC) environments, it offers a long list of IT and business advantages.



N5K-C5548UP-FA Overview


N5K-C5548UP-FA  is Nexus 5548 UP Chassis, including 32 fixed unified ports, Front-to-Back Airflow, 2 750W AC Power Supplies, Fan Trays, 1 Expansion Slot. Unified ports support traditional Ethernet, Fibre Channel (FC), and Fibre Channel over Ethernet (FCoE).


N5K-C5548UP-FA Specification


Brand Cisco
Part number  N5K-C5548UP-FA
Product Description Nexus 5548 UP Chassis. 32 10GbE Ports. 2 PS. 2 Fans
Product Type Switch Chassis
Ethernet Technology 10 Gigabit Ethernet
Number of Total Expansion Slots 33
Expansion Slots 1
Expansion Slot Type SFP+
Performance  Layer 2 hardware forwarding at 960 Gbps or 714.24 mpps; Layer 3 performance of up to 160 Gbps or 240 mpps
Form Factor 1RU
Fixed Ports 32 fixed unified ports
Power Supplies 2 x 750W AC Power Supplies
PoE (RJ-45) Port No
Fan Modules 2
Airflow Front-to-back (port-side exhaust) cooling;The Cisco Nexus 5548UP alternatively supports back-to-front (port-side intake) cooling (all fan and power supply modules in the same chassis must support the same direction of airflow)
Manageable Yes
Physical (height x width x depth) 4.4 x 43.9 x 74.9 cm
Weight(with two 1100W power supplies, 3 unified port expansion modules, and 4 fan modules) 15.88 kg
Warranty One year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request


Product Tags nexus 5548 up chassis 32 10gbe ports 2 ps2 fans          nexus 5548 up chassis 32 10gbe ports          nexus 5548 up chassis          cisco nexus 5548 up chassis          nexus 5548 ports          ps 2 port          nexus n5k          ps 2 port to usb          ps 2 port mouse
