How do you know the filter effect level of your
N95/disposable face mask at 99%/95%/90% or Not Approved at all ???
I. Particulate matter filtration efficiency test Meltblown cloth PFE filtration efficiency tester Meltblown cloth detector Introduction

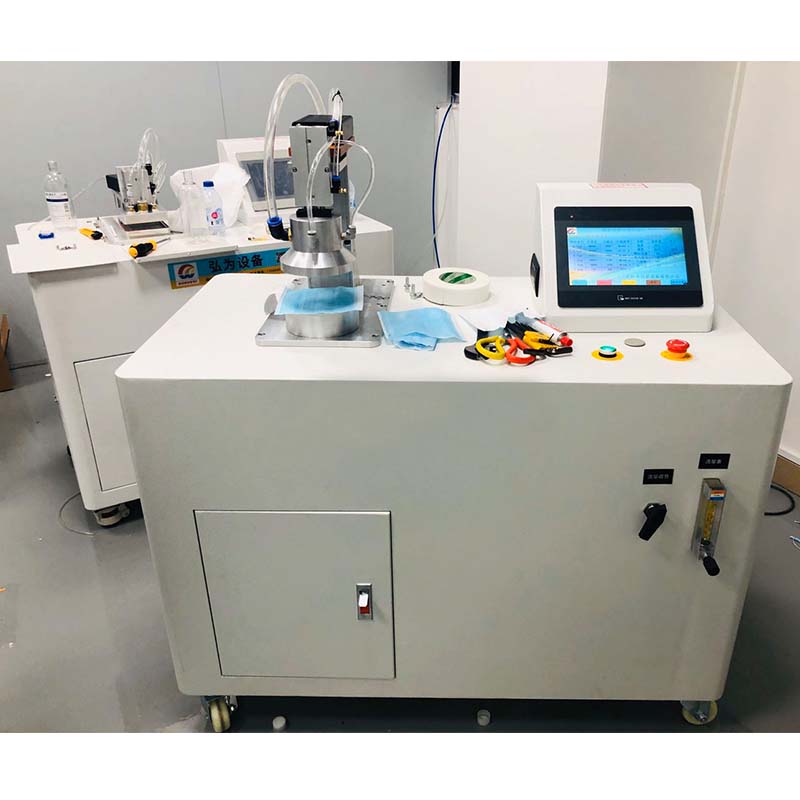

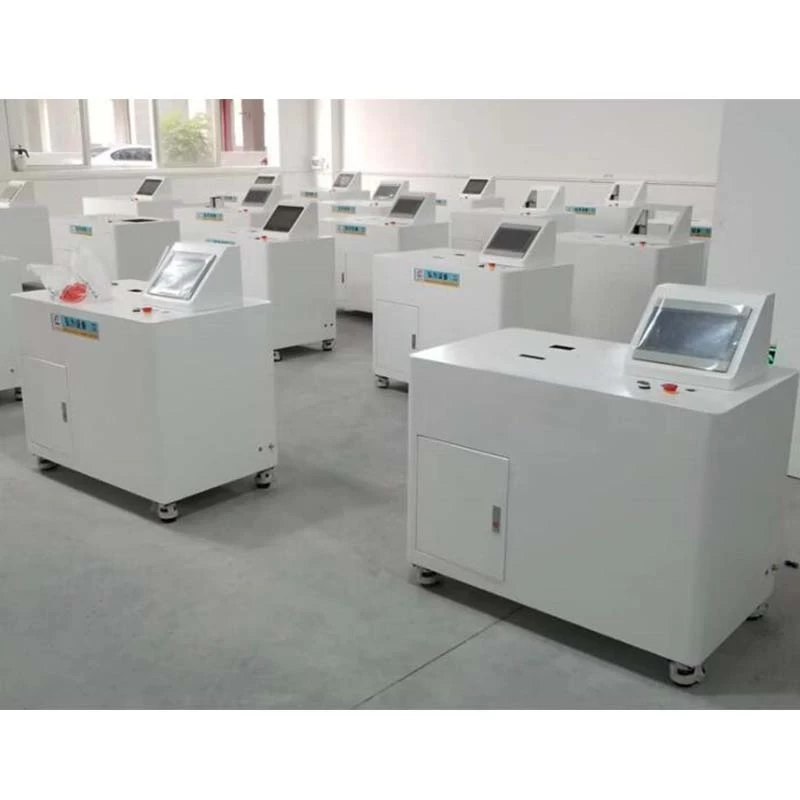

The BM-1000 filter material comprehensive performance tester is designed and manufactured according to the standards of YY0469-2004 "Technical Requirements for Medical Surgical Masks" and GB2626-2006 "Respiratory Protection Products Self-Suction Filtering Anti-Particle Respirator" through the exploration and experiment of the process flow . At the same time, it also refers to the advanced design concepts of similar international equipment (such as American TSI), based on the principle of "European standard EN1822-3: 1998 single-sheet filter material test", but it is also suitable for the test status of related domestic industries.
The performance of ventilation resistance, airflow resistance, particulate filter efficiency (PFE) and other performance measurements of various filter materials, melt-blown cloths, medical masks and various labor protection products can be performed with DEHS aerosol generator or NaCl aerosol generator or atmosphere, respectively . It has a humanized design, has the characteristics of simple operation, convenient use and wide application range. It can provide complete data parameters for sample sealing immediately.
II, The particulate matter filtration efficiency test meltblown cloth PFE filtration efficiency tester meltblown cloth detector configuration
01. DEHS aerosol generator * 1 set
02. NaCl salt generator * 1 set
03. Laser dust particle counter * 2 sets (2.83 l / min)
04. Micro differential pressure meter (import) * 1 (0-1000Pa digital display)
05. Flowmeter * 2 (10-100 liters / min)
06. High-pressure fan * 1 set
07. Electrostatic Neutralizer * 1 set
08. Special spray air pump * 1 set
09. Oil-free air compressor * 1 set (200 l / min) (accessory)
10. Standard fixture * 1 pair (effective test area 100 cm2)
11. Control valve * 6
12. 50 cm2 (round) area board * 1 pair (accessory)
13. Test software CD * 1 (accessory)
14. Computer * 1 set (accessory)
III, the particulate matter filtration efficiency test melt blown cloth PFE filtration efficiency tester melt blown cloth detector technical parameters
Applicable filter material
⑴ Glass fiber filter material
⑵ PP filter material
⑶ Membrane filter

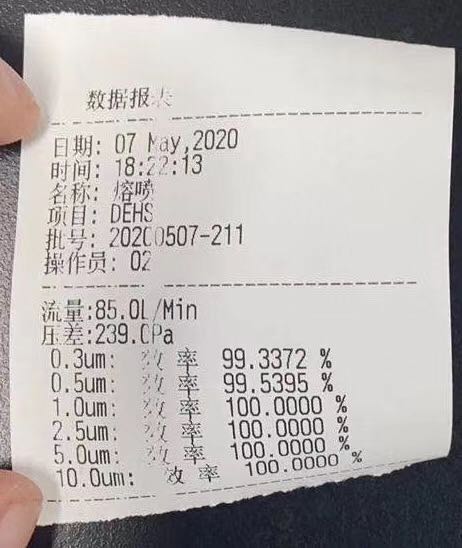

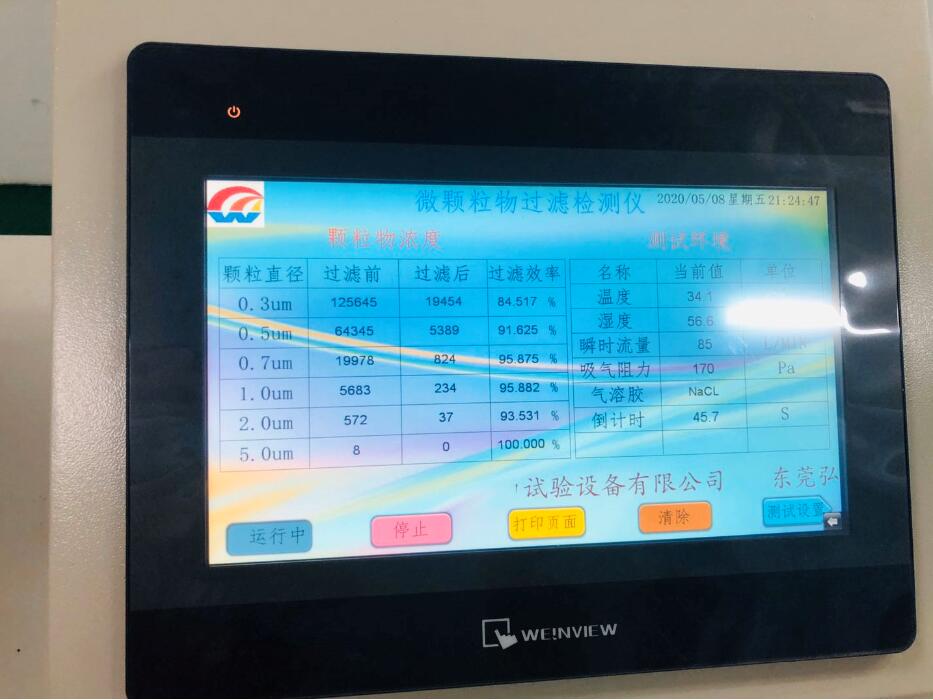

Detection particle size range 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 μm (six levels)
Flow range 20 ～ 100 l / min
Detection resistance range 0 ～ 1000 Pa (standard configuration)
Dust source
⑴ Aerosol (DEHS)
⑵ Sodium salt (2% NaCl solution)
⑶ Atmosphere
Effective test area 100 cm2
Electrostatic neutralization device heating power 300W / 220V
Power supply 220V / 50 Hz
System power consumption <1500W
Dimensions 910 mm (width) × 780 mm (depth) × 1400 mm (height)
It is used to detect the filtration efficiency of particulates such as masks and filter materials.
Standards compliant
GB 2626 Respiratory protective equipment Self-suction filter anti-particulate respirator
GB / T 32610-2016 daily protective mask technical specifications,
GB 19083-2010 Technical requirements for protective masks
GB 19082-2009 Technical requirements for disposable protective clothing
YY 0496-2011 surgical mask

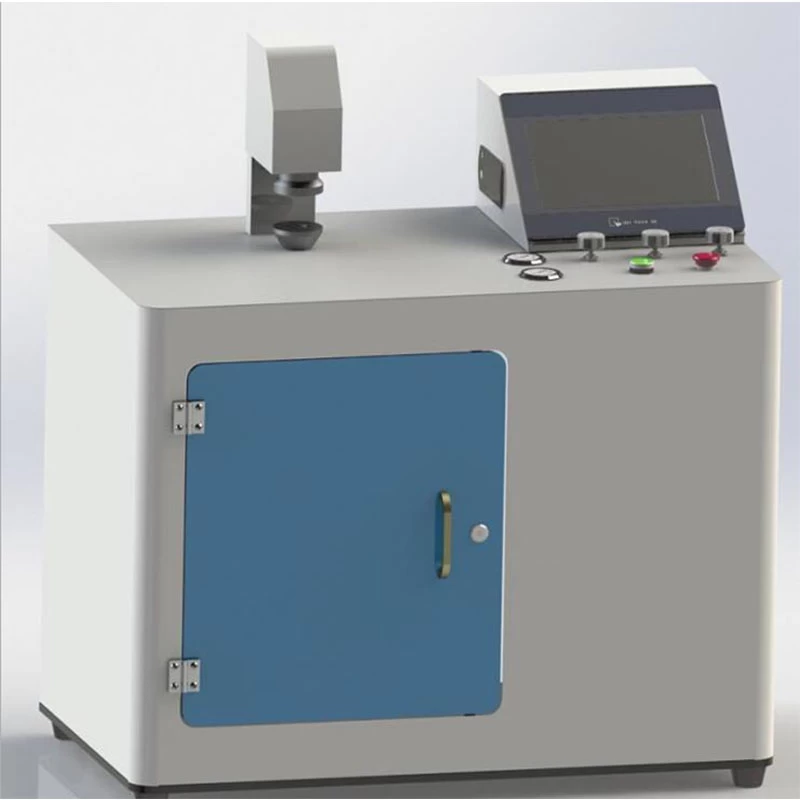

IV, Technical Parameters
1. Flow range: (0 ～ 100) L / min, accuracy 1%
2. Filtration efficiency: (0.001 ～ 99.999)%
4. Test area: 100cm² (optional 28cm²)
5. Aerosol: Sodium chloride (DOP, DEHS, paraffin oil, corn oil are optional)
6. Aerosol concentration: no more than 30mg / m³ (salty), no more than 30mg / m³ (oily)
7. Counting median diameter: salty particles (0.075 ± 0.02) um, oily particles (0.185 ± 0.02) um
8. Geometric standard deviation of particle size distribution: salty particles ≤1.86 oily particles ≤1.60
9. Dynamic detection range: 0.001-100mg / m³ accuracy 1%
10. Power: AC220V 50Hz / 1.2KW
11. Product size: length * width * height (800mm * 560mm * 1080mm)
V, Main configuration list
1. One host
2. One set of mask test fixture
3. One set of aerosol generator
4. Two laser-induced fluorescent particle counters
5. One set of digital gas flowmeter
6. One set of mute vacuum pump with integrated pumping and exhausting
