NF-N95 Face Mask Production Equipment Customized
demand specifications
|
Customized demand specifications
|
|
Equipment name: NF-N95 mask production equipment
|
Equipment Model：NF-N95MPE
|
Version NO.【Customer Name】
|
|
一、Brief introduction：
|
|
1. Application scenario:
|
|
Automatic production of four-layer folding masks.
|
|
2. Basic functions:
|
|
A. Folding masks are produced by the whole machine in automatic
assembly line.
|
|
B. Automatically install the nose bridge, edge
banding, forming and welding.
|
|
C. Automatically printing logo, cutting ear straps,
ultrasonic welding.
|
|
D. Automatic folding, welding, cutting, leveling and shipping.
|
|

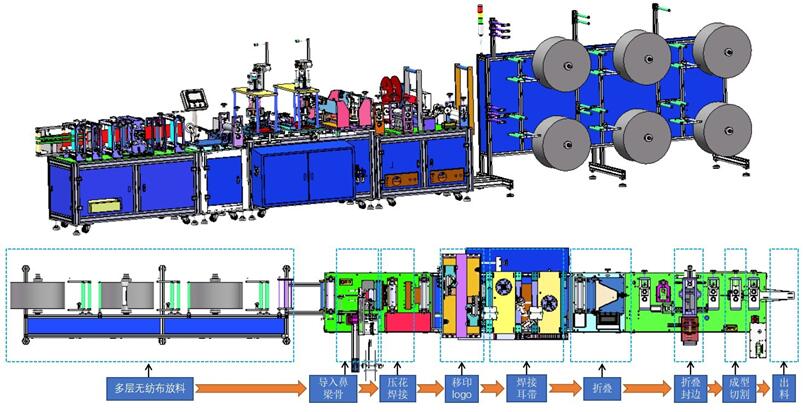

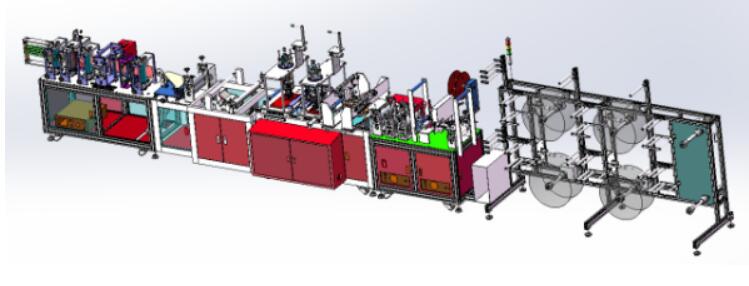

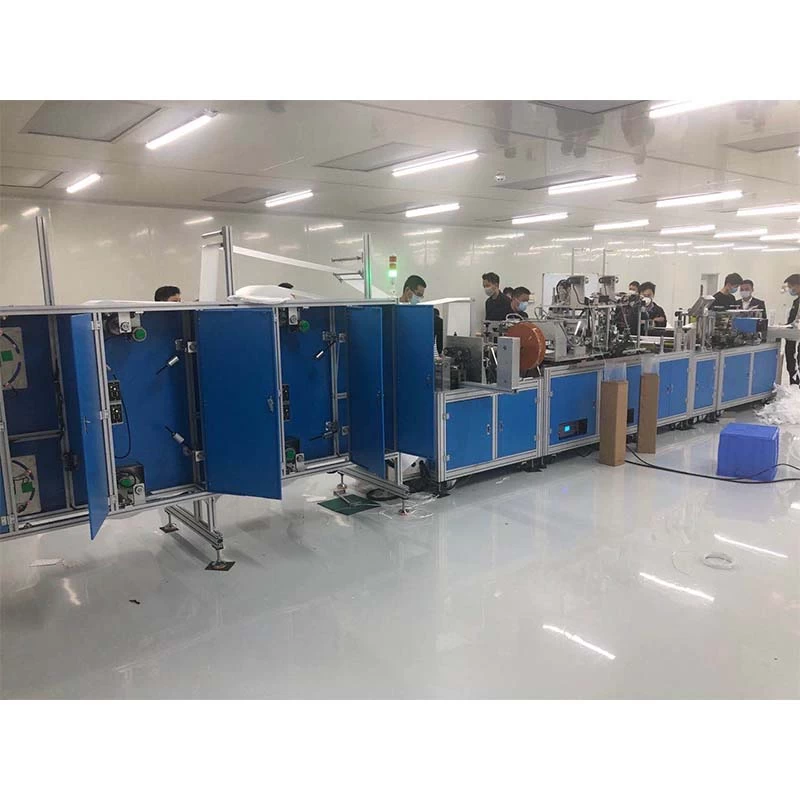

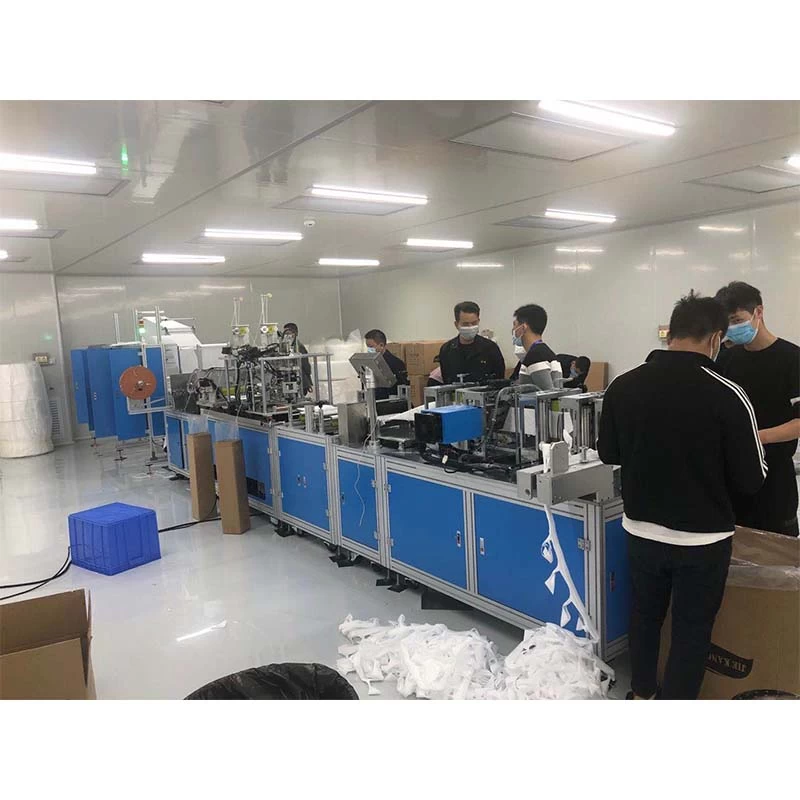

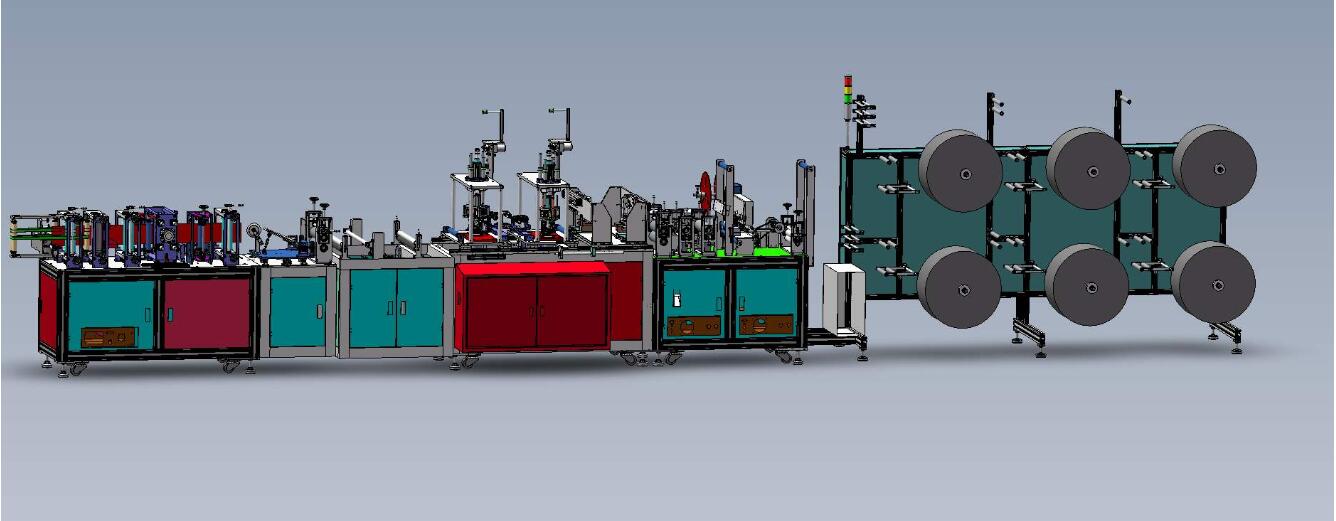

2. Equipment process flow:
|
|

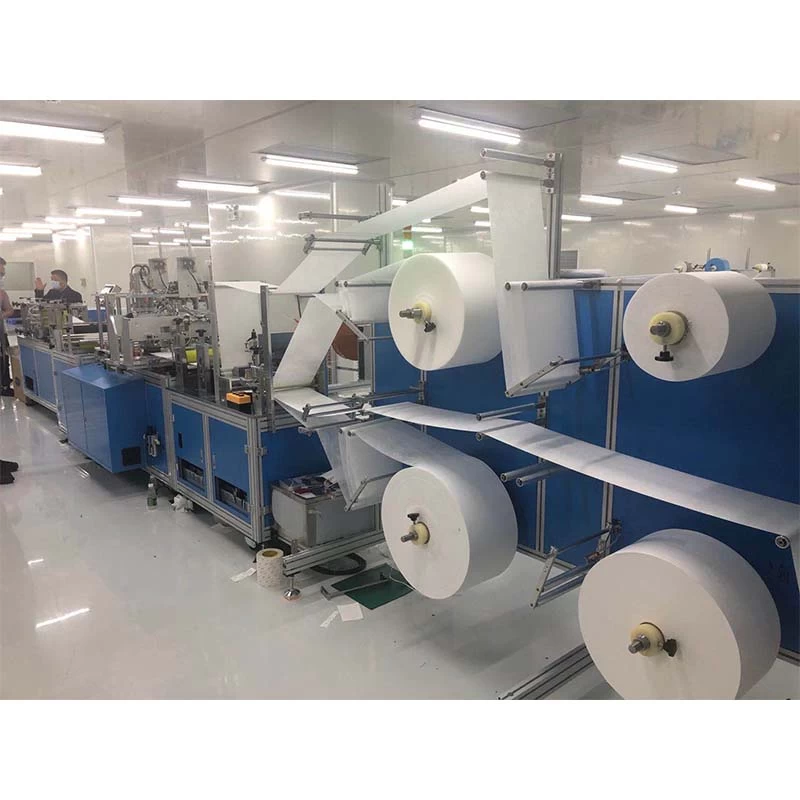

Multi-roll fabrics are stacked and unloaded,
conveyed by rollers → fixed-length cutting and conveying of nose bridge bones
→ welding and edge sealing by ultrasonic welding machine → double-head
printing mechanism automatic printing logo → double-head ear belt ultrasonic
welding mechanism welding ear belt → plastic folding mechanism Folding → folding
forming ultrasonic welding → automatic leveling, cutting and forming, waste
collection → assembly line discharge.
|
|
3. Main technical parameters:
|
|
Raw material reference
|
Suitable for mask type
|
Folding N95 mask
|
|
Suitable for mask layer
|
Suitable for all 4 layers
|
|

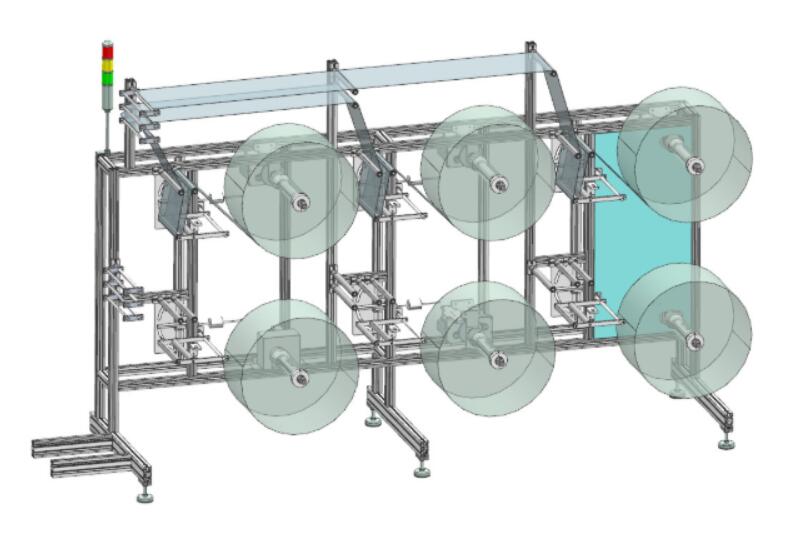

Suitable for non-woven fabrics size
|
1. Material width: about 250mm
2. Coil outer diameter: maximum Φ700mm
3. Barrel inner diameter: 3 inches ± 3mm
|
|
Bridge of nose
|
1. Coil outer diameter: maximum Φ350mm
2. Barrel inner diameter: greater than 6 inches
3. Material tray width: less than 100mm
Note: It is recommended to use plastic with iron
wire
|
|
Elastic ear straps
|
1. Coil outer diameter: maximum Φ400mm
2. Inner diameter of barrel: greater than φ10mm
3. Barrel width: less than 110mm
Note: The breaking strength is not less than 10N
|
|
Electronic control system
|
PLC
|
□Panasonic □XinJie □Inovance □Delta □Other【 】
|
|
Servo
motor
|
□Delta □XinJie □Inovance □Bergda □Other【 】
|
|
Power
grid stability
|
EMI
power filter
|
|
Power protection
|
Leakage circuit breakers
|
|
Pneumatic system
|
cylinder
|
□AIRTAC□Stars □SMC □Other【 】
|
|
Pressure
regulation
|
□AIRTAC□Bovac □Other【 】
|
|
The
electromagnetic valve
|
□SMC □AIRTAC
□CKD □Other brand
|
|
Air
filter
|
□AIRTAC□Chelic
□Stars □SMC □Other【 】
|
|
Transmission system
|
Rail
slider
|
□HIWIN
□PMI □TBI □Zero Nine □Other【 】
|
|
Bearing
|
□GB □NSK □ShangLong □Other
|
|
Geared
motor
|
□DongMa □TaiBang □MingPai □BeiJi □GB □Other【 】
|
|

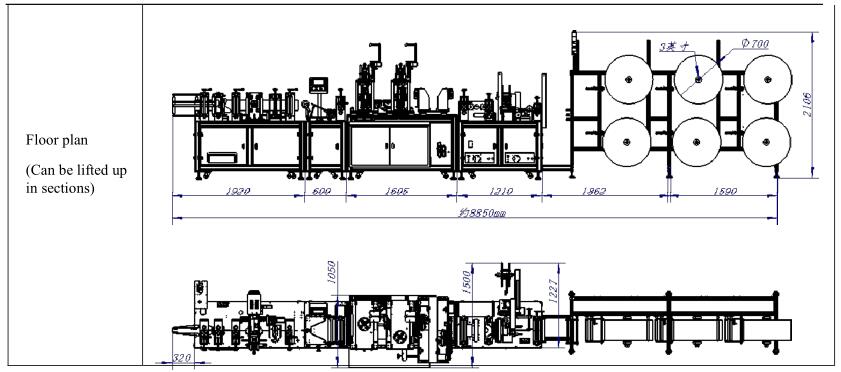

Equipment Specifications
|
Overall
dimensions
|
About 8800MM (length) * 1500MM (width) * 2150MM
(height)
|
|
Move
the whole line
|
Floor-mounted
roller movement
|
|
Whole
weight
|
About
1350kg
|
|
Facilities
|
Power
supply
|
Three-phase 380V ± 10% / 50Hz / 15Kw, the main power
line is more than four square
|
|
Environmental
requirements
|
No flammable, explosive and corrosive gas 25 ℃ ± 5
℃; 40 ~ 85% RH
|
|
Air supply
|
1. 0.5 ~ 0.7Mpa, dry air source.
2. Flow rate per minute ≤150L.
3. The whole line requires one φ10 trachea interface.
|
