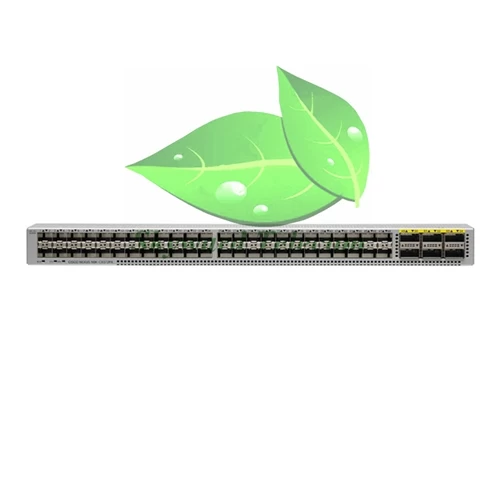

N9K-C9372PX-E Nexus 9300 with 48p 10G SFP+ and 6p 40G QSFP+

The Cisco Nexus 9372PX-E Switch is a 1-rack unit switch that supports forty-eight 1 Gigabit and 10 Gigabit SFP+ downlink ports, six 40 Gigabit QSFP+ uplink ports, one 100/1000 network management ports, one RS-232 console port for setting the initial switch configuration and two USB ports for saving or loading switch configurations. This versatile modular switch comes with advanced networking features like ACL support, HSRP support, IGMP snooping, MSTP support, PVRST, QoS, vPC technology, VRF, VLAN support and VXLAN tunnel endpoints support. It can be placed on the desktop or mounted on the wall to save space. With a latency of 1 to 2 microseconds, the network switch supports 1.44 Tbps of bandwidth in a 1 RU form factor.Offers a flexible switching platform for 3-tier and spine-leaf architectures as a leaf nodeGigabit switch can be deployed in small business, enterprise and service provider architecturesCisco NX-OS Software is designed for performance, scalability and manageabilityHighly efficient design for a reliable performance



N9K-C9372PX-E Overview


Cisco Nexus 9372PX-E Switch (N9K-C9372PX-E) is a minor hardware revision of the Cisco Nexus 9372PX. Enhancements include hardware capability for IP-based endpoint group (EPG) classification in Cisco ACI mode.


N9K-C9372PX-E Specification


Brand Cisco
Part number  N9K-C9372PX-E
Product Description Nexus 9300 with 48p 10G SFP+ and 6p 40G QSFP+
Ports 48 fixed 1/10GBASE-T and 6 QSFP+ ports
Form factor 1 RU
Throughput (Tbps) 1.44
Supported speeds 1/10 Gigabit Ethernet speeds
40 Gigabit Ethernet uplink port 6 fixed QSFP+ ports
Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.
The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations
Typical power(AC & DC) 210W
Maximum power(AC & DC) 537W
Maximum number of longest prefix match (LPM) routes 128000
CPU, SSD, and memory Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
Buffer (MB) 37
Operating System NX-OS, ACI
Fans 4
Physical (H x W x D) 4.4 x 43.9 x 57.1 cm
Acoustics 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed
Weight(without power supplies or fans) 10.1 kg
Warranty One year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request
