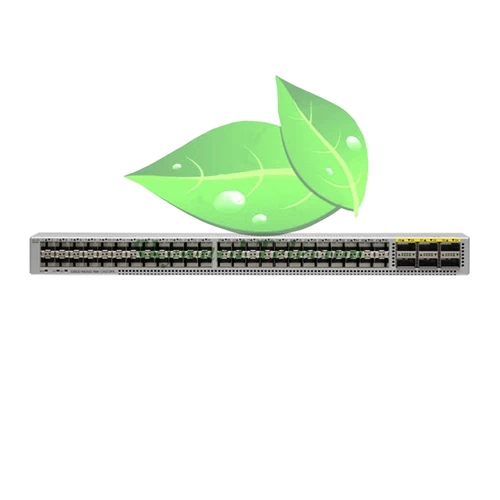

N9K-C9372TX-E Nexus 9300 with 48p 1/10G-T and 6p 40G QSFP+

The Cisco Nexus 9372TX Switch offers a line-rate layer 2 and layer 3 feature set in a compact form factor. It offers a flexible switching platform for both 3-tier and spine-leaf architectures as a leaf node. With the option to operate in Cisco NX-OS or Application Centric Infrastructure (ACI) mode, it can be deployed within small business, enterprise, and service provider architectures.

Facebook Twitter Pinterest LinkedIn 分享
N9K-C9372TX-E Overview


The Cisco Nexus 9372TX-E Switch (N9K-C9372TX-E) is a minor hardware revision of the Cisco Nexus 9372TX. Enhancements include hardware capability for IP-based EPG classification in Cisco ACI mode.


N9K-C9372TX-E Specification


Brand Cisco
Part number  N9K-C9372TX-E
Product Description  Nexus 9300 with 48p 1/10G-T and 6p 40G QSFP+
Ports 48 fixed 1/10GBASE-T and 6 QSFP+ ports
Form factor 1 RU
Throughput (Tbps) 1.44
Supported speeds 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
40 Gigabit Ethernet uplink port 6 fixed QSFP+ ports
Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.
The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations
Power supplies (up to 2) 650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power(AC & DC) 374.5W
Maximum power(AC & DC) 694W
Maximum number of longest prefix match (LPM) routes 128000
CPU, SSD, and memory Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance
Buffer (MB) 37
Operating System NX-OS, ACI
Fans 4
Physical (H x W x D) 4.4 x 43.9 x 57.1cm
Acoustics 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed
Weight（without power supplies or fans） 10.25 kg
Warranty One year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request
