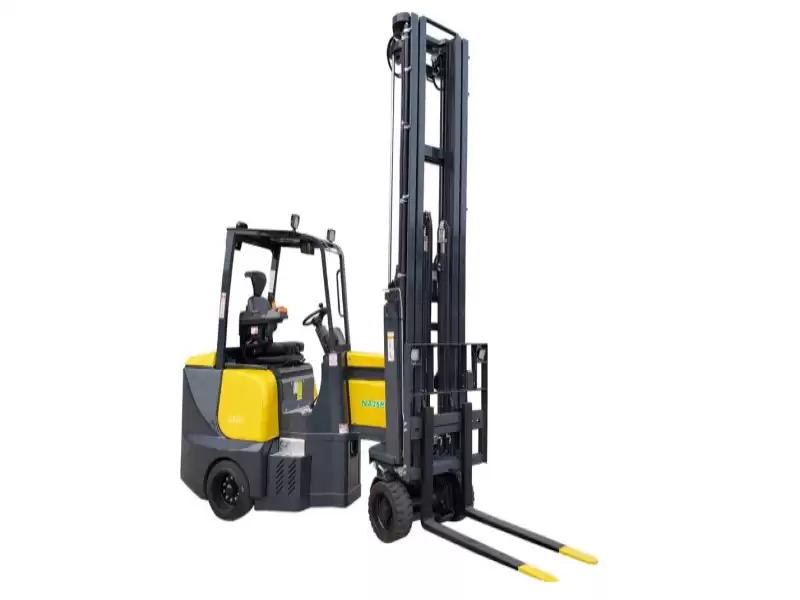

The NA series battery narrow aisle forklift provides the lowest
cost of ownership while maximizing space and productivity to benefit every
users. NA articulated forklifts are designed to withstand
heavy-duty use both inside and outside, it can drive on any floor surface,
eliminating double handling, moving pallet from lorry to racks in one step.
Comparing to reach trucks, NA series VNA trucks create 30% more
pallet positions, comparing of counterbalance forklifts, it creates 50% more
pallet positions. So NA series VNA articulated forklifts can save users
much time, space and money.
Configurations
|
Standard parts
|
Optional parts
|
|
Fingertip
armrest
|
Wireless camera
and monitor
|
|
Electro-hydraulic
proportional valve
|
Lithium ion
battery
|
|
80V AC ZAPI
controller
|
Double deep
forks
|
|
80V AC
lifting&;driving motor
|
Weighing forks
|
|
80V 400AH lead
acid battery and customized charger station
|
Height
pre-selector
|
|
LED &; warning
light
|
Cabin
|
|
Cooling fans
|
White tyres
|
|
Triplex full
free mast
|
Quad mast
|
|
Integral side
shift
|
Fork positioner
|
|
Load backrest
|
|
|
Black solid
tyres
|
|
|
Backup mirror
|
|
|
Suspension seat
with safety belt and OPS system
|
|
|
Guiding lasers
|
|
Specifications
|
Model
|
Unit
|
NA25
|
|
Capacity
|
KG
|
2500
|
|
Mast lift
height
|
MM
|
4300-12400
|
|
Mast free lift
height
|
MM
|
1365-4686
|
|
Mast closed
height
|
MM
|
2265-5665
|
|
Mast
full extended height
|
MM
|
5561-13739
|
|
Overall length(excluding
forks)
|
MM
|
2780
|
|
Ground clearance
|
MM
|
50
|
|
Overhead guard
height
|
MM
|
2270
|
|
Chassis width
rear
|
MM
|
1400
|
|
Chassis width
front
|
MM
|
980
|
|
Load center
|
MM
|
600
|
|
Wheelbase
|
MM
|
1735
|
|
Seat height
|
MM
|
1220
|
|
Mast tilt
angle(back/fwd)
|
DEGREE
|
3/1
|
|
Front chassis
rotate angle(left/right)
|
DEGREE
|
220
|
|
Ground speed
|
KM/H
|
16
|
|
Lift
speed(load/unload)
|
M/S
|
0.44/0.5
|
|
Front tyre size
|
MM
|
412x174
|
|
Rear tyre size
|
MM
|
457x170
|
|
Grade
ability(load/unload)
|
%
|
18/20
|
|
Battery
voltage/capacity
|
V/AH
|
80/500
|
|
Weight including
battery
|
KG
|
5150
|
|
Weight excluding
battery
|
KG
|
7400
|
|
Traction motor
|
KW
|
19.5
|
|
Lifting motor
|
KW
|
15
|
|
Min net working
aisle width
|
MM
|
1900
|
|
Transfer aisle
width
|
MM
|
2700
|
