Key Properties:
-
High saturate induction reduce volume of transformers
-
High permeability and low coercivity improve efficiency
-
lower exciting power and reduce copper loss
-
Low core loss reduce temperature rise of transformers
-
Excellent thermal stability with the serving temperature of -55°C-130°C for long time
-
LOWEST CORE LOSS :P <6W/Kg @ 20KHz,0.5T , P<9W/Kg @ 20KHz, 1T, P<5W/Kg @ 35KHz,0.5T, P<14W/Kg @ 35KHz,1T
-
High Bs =1.4T , low Br <10mT, Low Hc <1A/m , u=10000
|
Basic Parameter
|
Nanocrystalline Core
|
Ferrite Core
|
|
Saturation Magnetostriction Induction Bs(T)
|
1.25
|
0.5
|
|
Residual Magnetic Field Density Br (T) (20KHz)
|
<0.20
|
0.2
|
|
Core Losse (20KHz, 0.2T) (W/kg)
|
<3.4
|
7.5
|
|
Core Losse (20KHz, 0.5T) (W/kg)
|
<35
|
Can not be used
|
|
Core Losse (20KHz, 0.3T) (W/kg)
|
<40
|
Can not be used
|
|
Permeability (20KHz) (Ge//Oe)
|
>2x104
|
2x103
|
|
Coercive Force (A/m)
|
<1.60
|
6
|
|
Saturated Magnetostrictive Coefficient λs
|
<2x10-6
|
4x10-6
|
|
Resisitivity (µΩcm)
|
80
|
1X106
|
|
Curie Temperature (°C)
|
570
|
<200
|
|
Occupation efficiency
|
>0.70
|
---
|

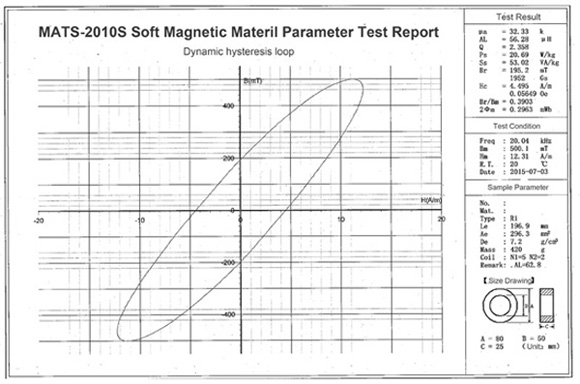

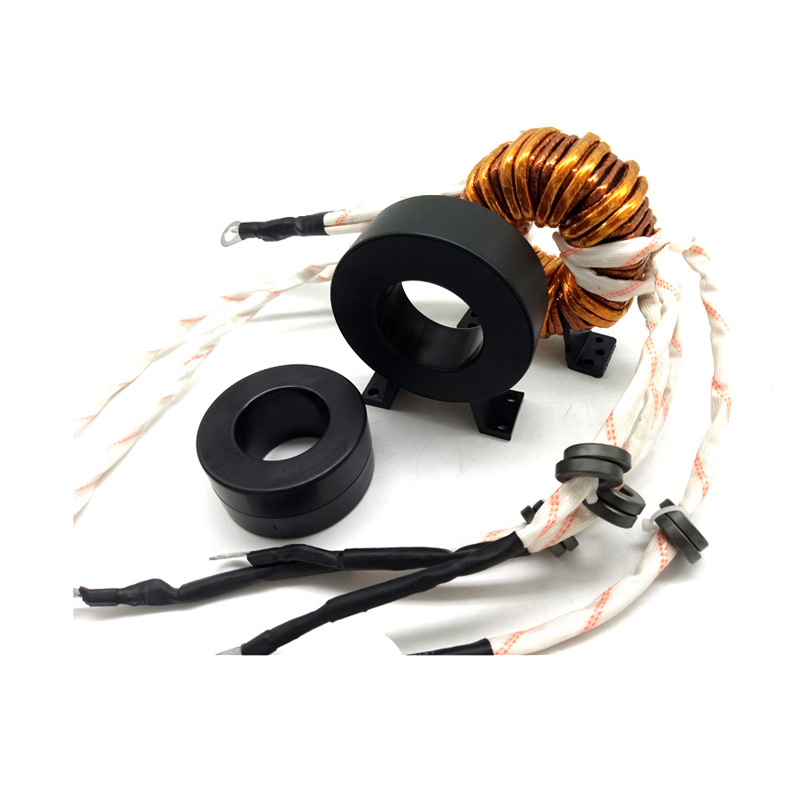

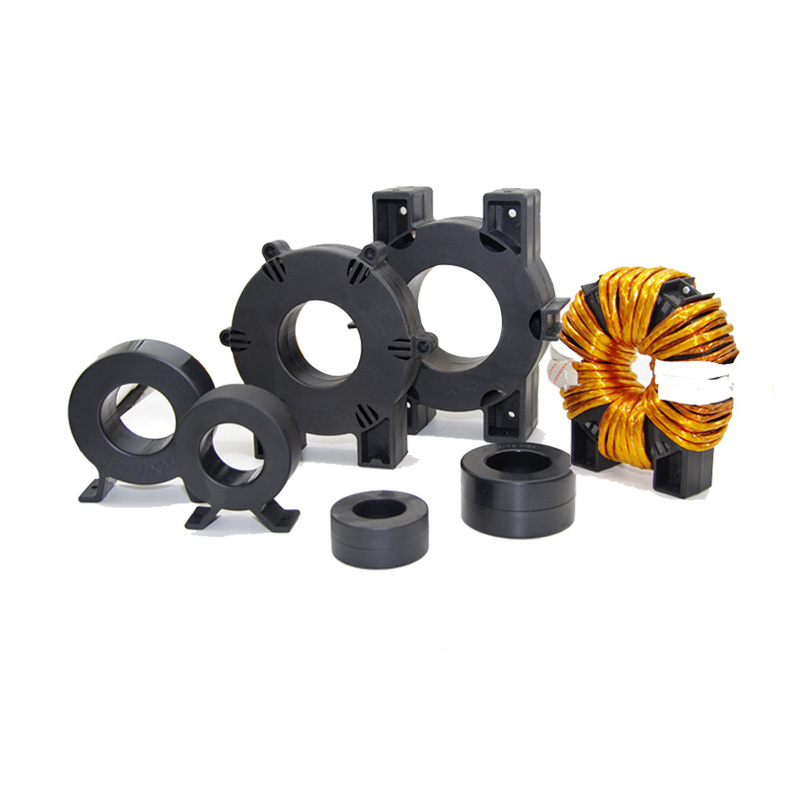

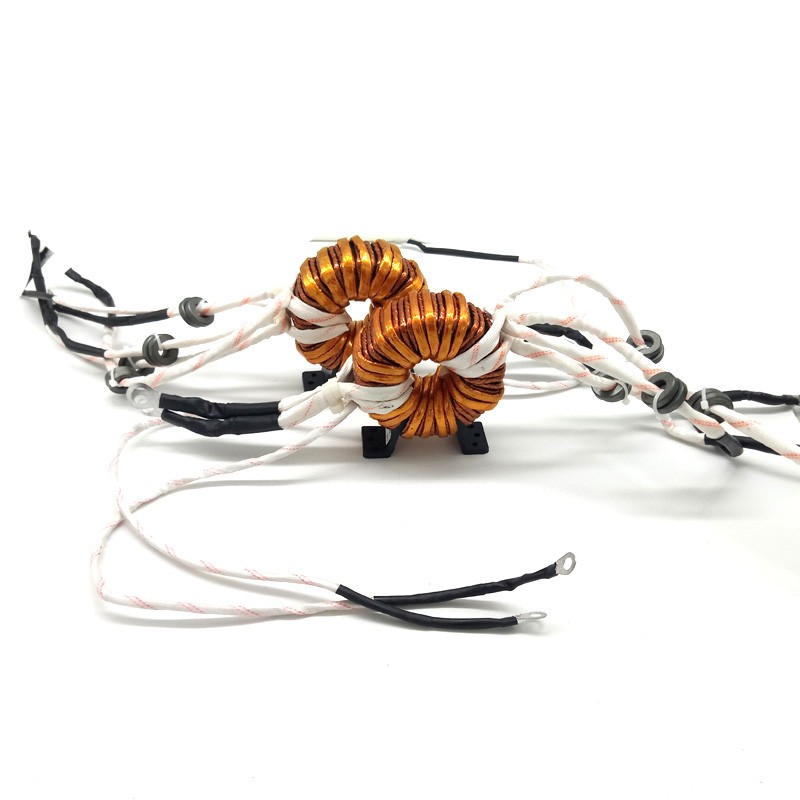

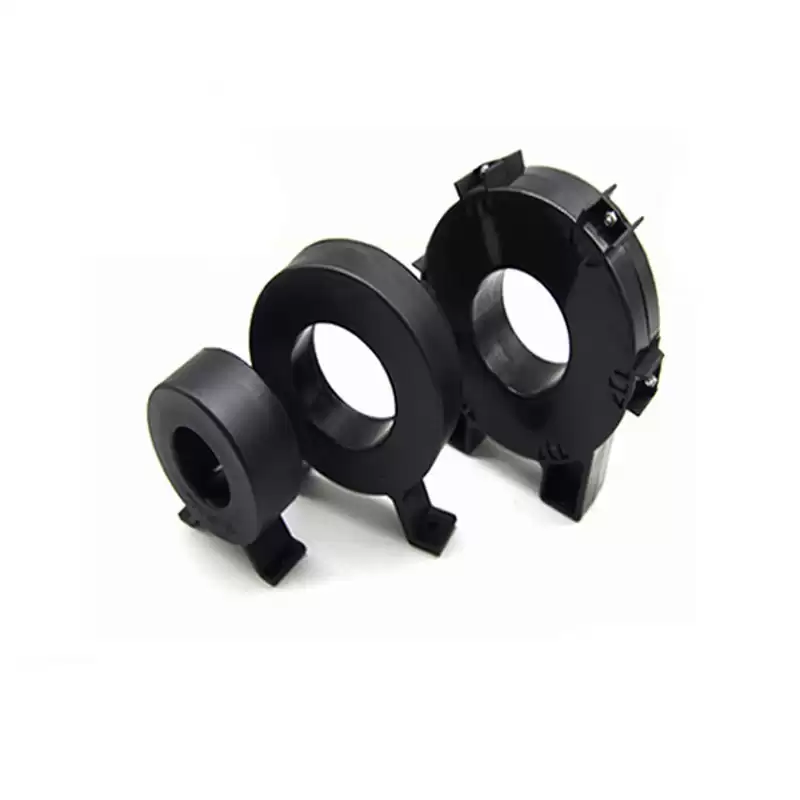

Product Description:
Our Nanocrystallie core is widely used for High Frequency Power Transformers in Welding Machine, Solar Inverter.
Standard Nanocrysatalline Core for HF power Transformer Price list Download here.
Main Application:
-
Inverter welding machines
-
X-Ray and laser source power supplies
-
Communication power supplies
-
High frequency heating systems
-
Electrolytic and plating power supplies
