Key Properties:
-
Inherit the simple structure of the traditional C cores
-
Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
-
Energy conservation & environment protection, huge potential market
Main Option:
-
Magnetic Material: Silicon Steel ( CRGO); Nanocrystalline
-

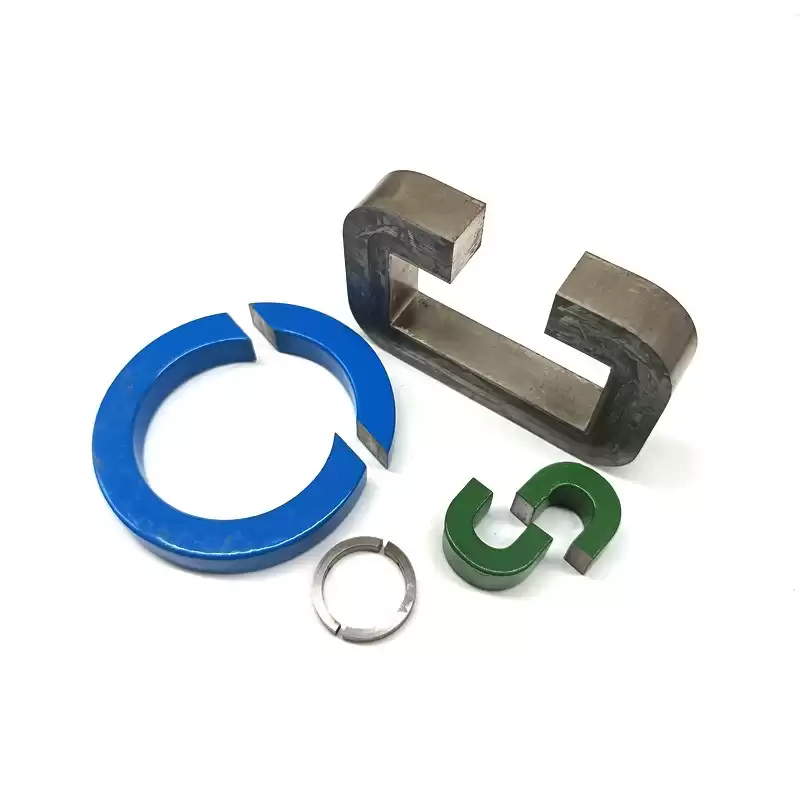

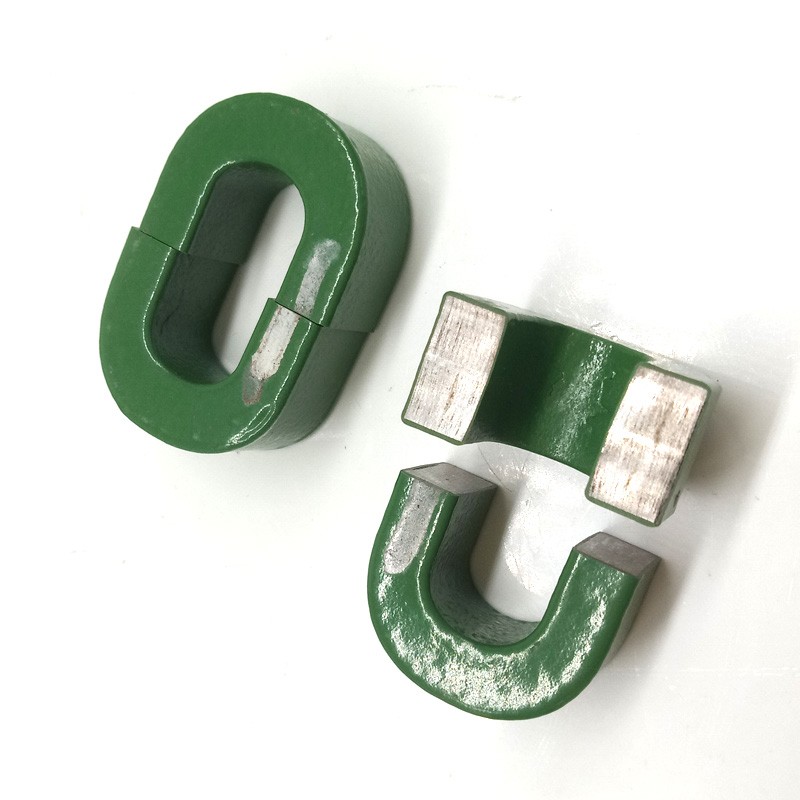

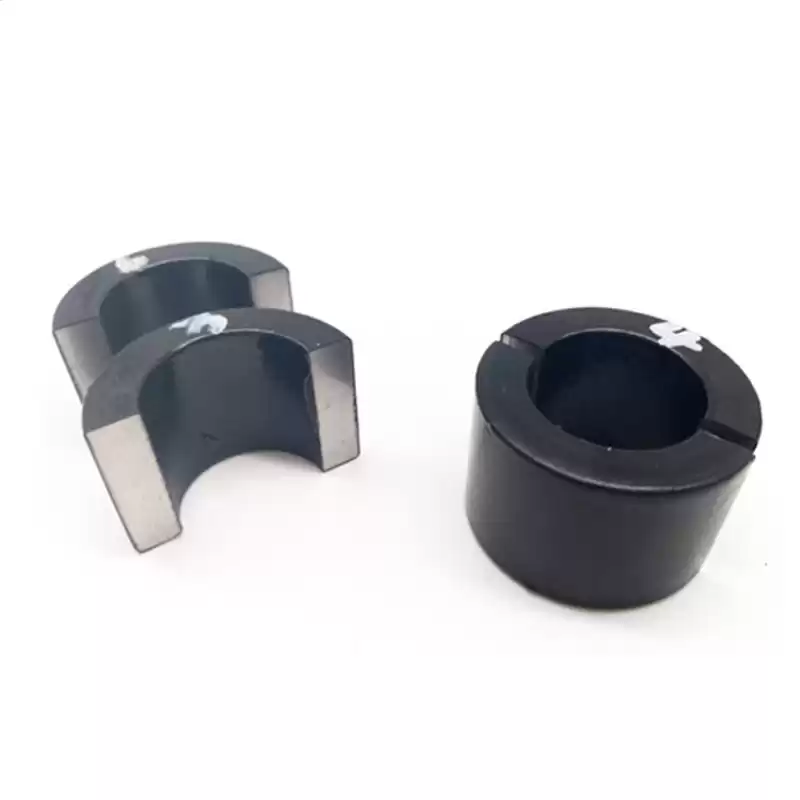

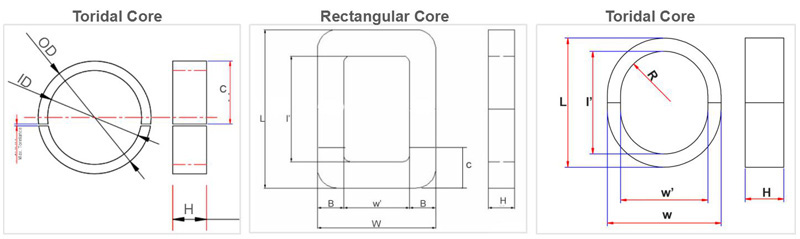

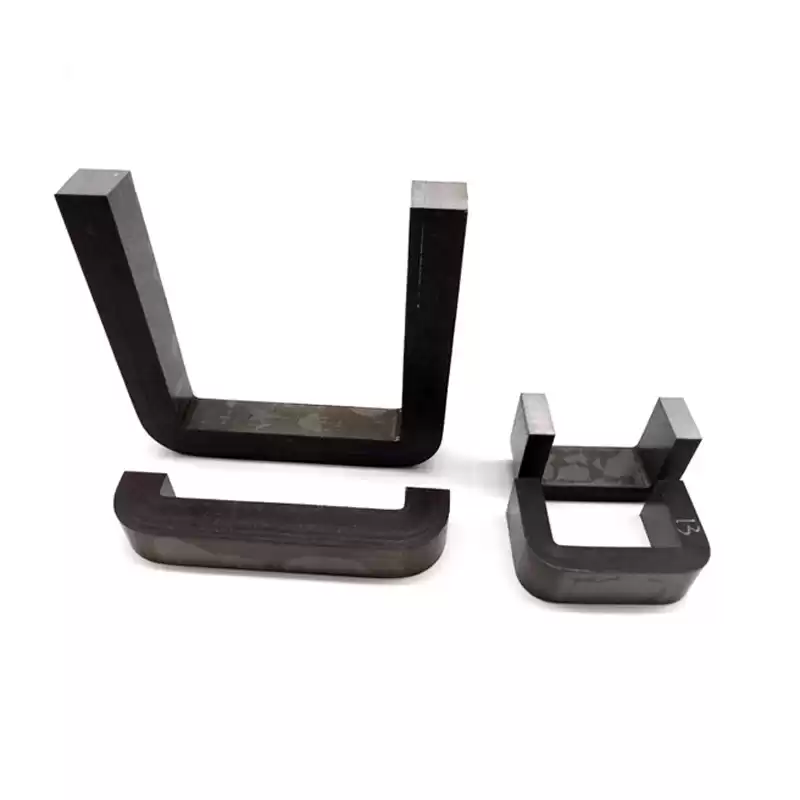

Core Shape Design: Toridal Core, Rectangular Core, Oval Core
-
Cutting Location: Average Cutting, Un-equal Cutting
|
Typical Specification
|
Silicon Steel
|
Nano Crystalline
|
|
Bs (T)
|
2
|
1.2
|
|
HC (Oe)
|
0.5
|
0.1
|
|
Initial Permeability (µo)
|
1500
|
>100000
|
|
Max. Permeability (µm)
|
2 x 104
|
1 x 106
|
|
Resistivity
|
50
|
80
|
|
Curie Temperature (°C)
|
750
|
570
|
|
Crystallization
|
-
|
510/570
|
Main Application:
Widely used in high frequency, high power transformers for converters, in drives, traction, power supplies.
Produce Description:
We supply Nanocrystalline Cut Core and Split current transformers based on clients request, information request including:
1. Core Material:
2. Detailed Size ( based on drawing):
