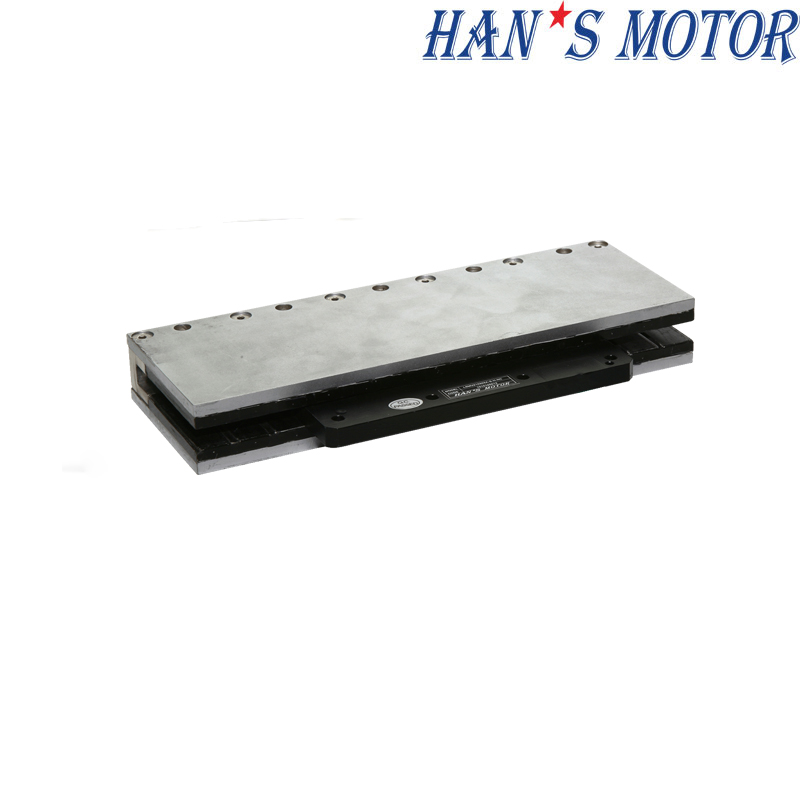

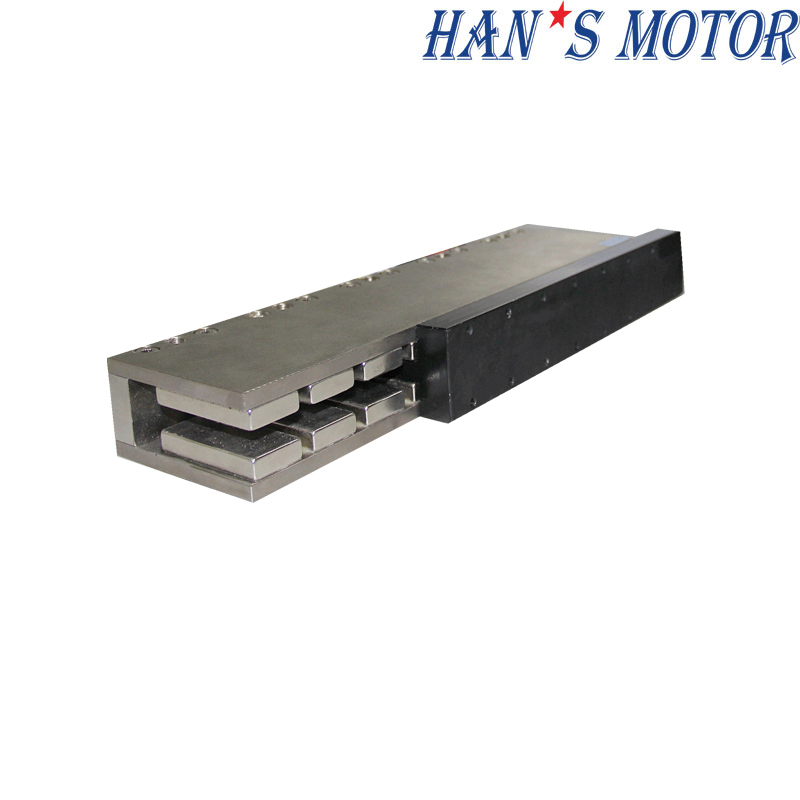

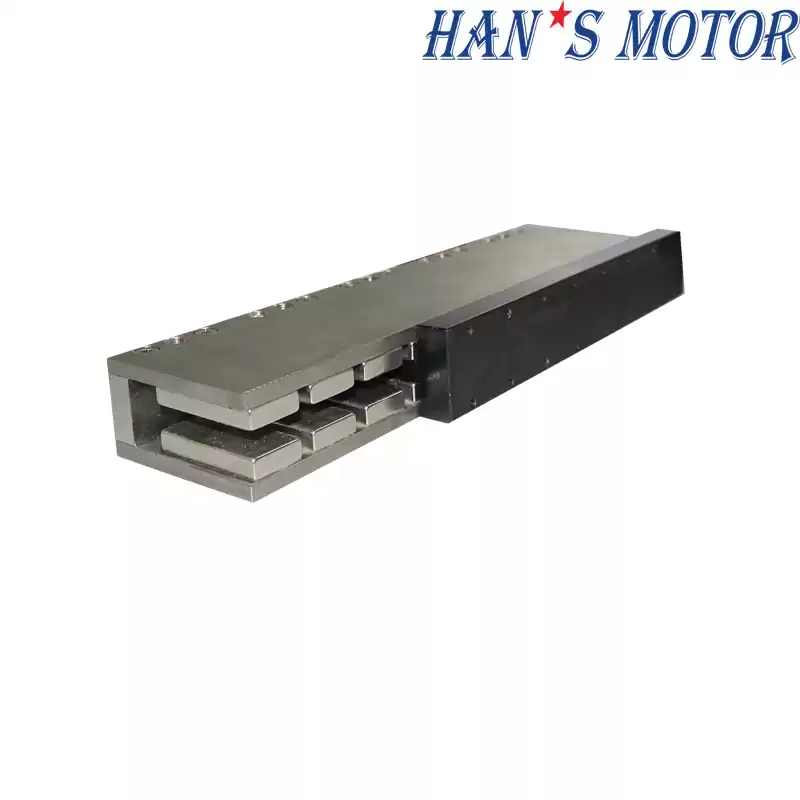

Product name：Nanoscale precision micro linear motor LSMU7 high thrust linear motion system for display panel device
Specifications
Mover Spec: LSMU710xxxx-x-H-NC-N-D00.5
|
101A-S
|
201A-S
|
201A- P
|
301A-S
|
301A- P
|
401B-S
|
401B- P
|
801A-S
|
801A- P
|
Performance Parameters
|
Symbol
|
Unit
|
Series
|
Series
|
Parallel
|
Series
|
Parallel
|
Series
|
Parallel
|
Series
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
7
|
14
|
14
|
22
|
22
|
29
|
29
|
58
|
58
|
Peak Force
|
Fp
|
N
|
36
|
72
|
72
|
108
|
108
|
144
|
144
|
288
|
288
|
Motor Constant
|
Km25
|
N//Sqrt (W)
|
2.8
|
4.0
|
3.8
|
4.9
|
4.7
|
5.7
|
5.5
|
8.1
|
7.8
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
9.0
|
17.7
|
19.6
|
26.4
|
29.4
|
35.1
|
38.1
|
70.0
|
74.1
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
1.15
|
1.15
|
2.30
|
1.15
|
2.30
|
1.15
|
2.30
|
1.15
|
2.30
|
Peak Current (1S)
|
Ip
|
Arms
|
5.8
|
5.8
|
11.5
|
5.8
|
11.5
|
5.8
|
11.5
|
5.8
|
11.5
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
6.3
|
12.5
|
6.3
|
18.8
|
9.4
|
25.0
|
12.5
|
50.0
|
25.0
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrm/rad /s
|
2.1
|
5.2
|
2.1
|
6.3
|
3.1
|
8.3
|
4.2
|
16.7
|
8.3
|
Electrical Resistance (25℃，±5%）P-P
|
R
|
Ω
|
3.3
|
6.5
|
1.8
|
9.7
|
2.7
|
12.9
|
3.5
|
25.7
|
6.8
|
Inductance (25℃，±20%）P-P
|
L
|
mH
|
0.8
|
1.6
|
0.4
|
2.4
|
0.6
|
3.2
|
0.8
|
6.4
|
1.6
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
Magnetic Attraction
|
Fa
|
kN
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
Vmax,Fc@Vbus=310Vdc
|
Vmax,Fc
|
m/s
|
58.4
|
28.7
|
58.3
|
18.7
|
38.6
|
13.7
|
28.7
|
6.2
|
13.7
|
Vmax,Fp@Vbus=310Vdc
|
Vmax,Fp
|
m/s
|
52.1
|
23.3
|
51.7
|
13.5
|
32.4
|
8.6
|
22.9
|
1.2
|
8.3
|
Vmax,0@Vbus=310Vdc
|
Vmax,0
|
m/s
|
59.7
|
30.1
|
59.7
|
20.0
|
40.0
|
15.0
|
30.1
|
7.5
|
15.0
|
Mover Mass
|
Mp
|
Kg
|
0.06
|
0.12
|
0.12
|
0.18
|
0.18
|
0.23
|
0.23
|
0.46
|
0.46
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
3.9
|
3.9
|
3.9
|
3.9
|
3.9
|
3.9
|
3.9
|
3.9
|
3.9
|

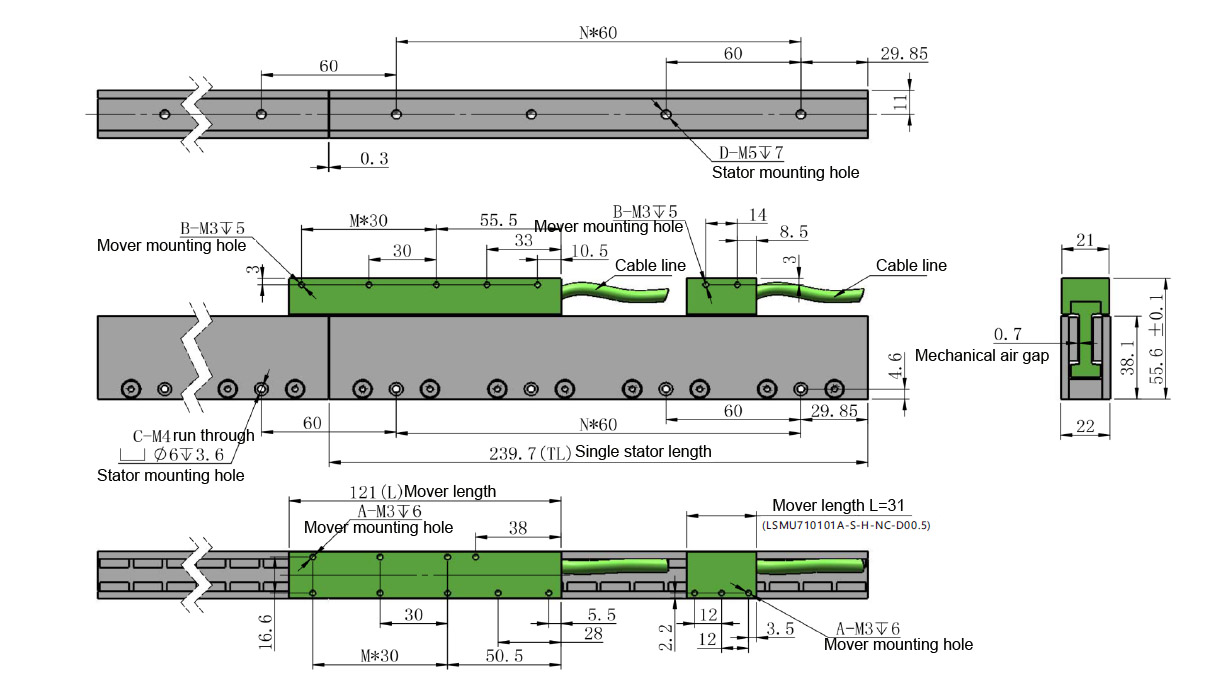

Dimension

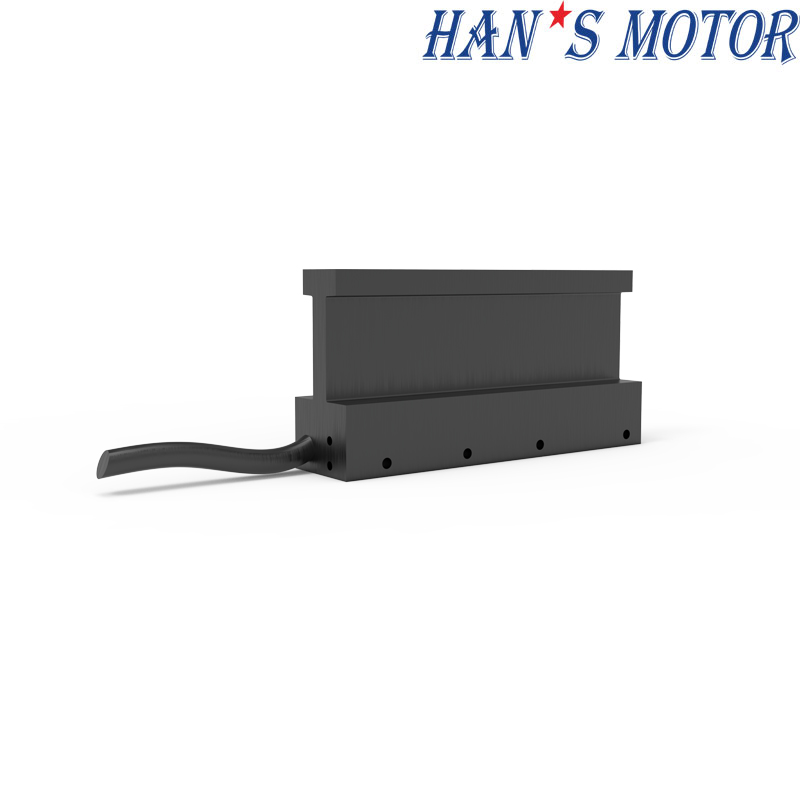

Mover Length
|
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
Mover mounting hole B
|
|
LSMU710101A-S-H-NC-N-D00.5
|
31
|
0
|
3
|
2
|
LSMU710201A-S-H-NC-N-D00.5
|
61
|
0
|
5
|
5
|
LSMU710201A-P-H-NC-N-D00.5
|
5
|
5
|
LSMU710301A-S-H-NC-N-D00.5
|
91
|
1
|
7
|
7
|
LSMU710301A-P-H-NC-N-D00.5
|
7
|
7
|
LSMU710401B-S-H-NC-N-D00.5
|
121
|
2
|
9
|
9
|
LSMU710401B-P-H-NC-N-D00.5
|
9
|
9
|
LSMU710801A-S-H-NC-N-D00.5
|
241
|
6
|
17
|
17
|
LSMU710801A-P-H-NC-N-D00.5
|
17
|
17
|
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter d of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.

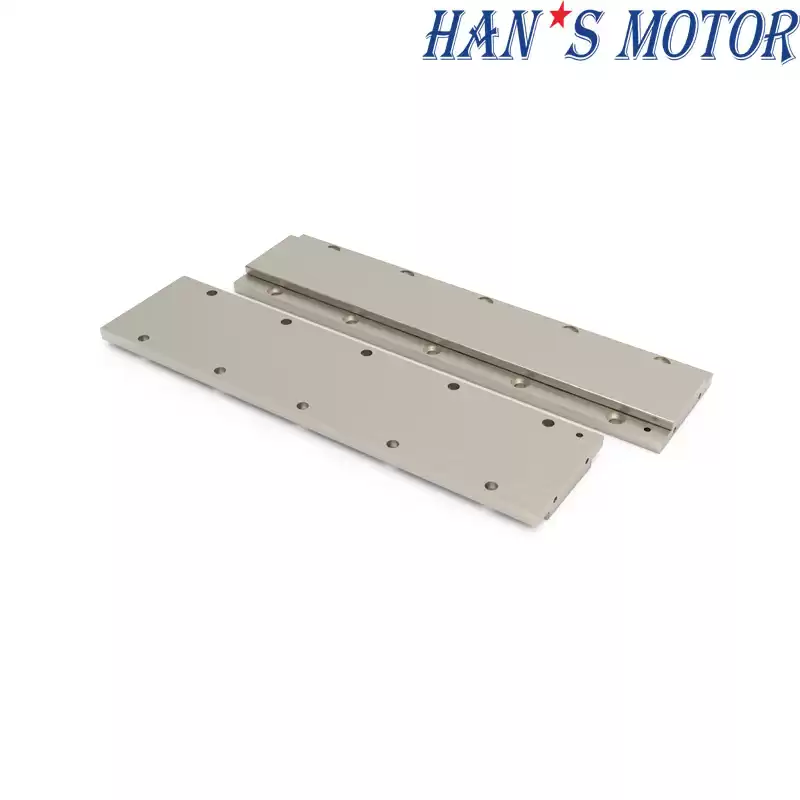

Stator Length
|
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole C
|
Stator mounting hole D
|
|
LSMU7201A
|
239.7
|
3
|
4
|
4
|
LSMU7202A
|
299.7
|
4
|
5
|
5
|
LSMU7203A
|
119.7
|
1
|
2
|
2
|
LSMU7204A
|
179.7
|
2
|
3
|
3
|
Suitable for any mover of this series, stator installation mode can be selected.
Advantages:
1. Using balanced double magnetic track, no gravity effect, more safe and easy to operate.
2. Zero cogging effect, keep moving more stable and maintain higher accuracy.
3. Stator can be connected, stroke can be extended indefinitely.
4. No core represents higher acceleration and deceleration.

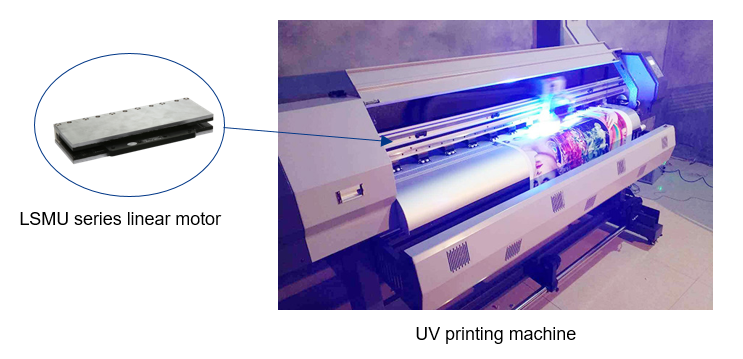

Application Case：Print Industry
In the printing equipment, long stroke, high mobility stability. Linear motor has the characteristics of unrestricted stroke, small ripple etc. Printing equipment using linear motor structure can achieve long stroke, high precision printing.
