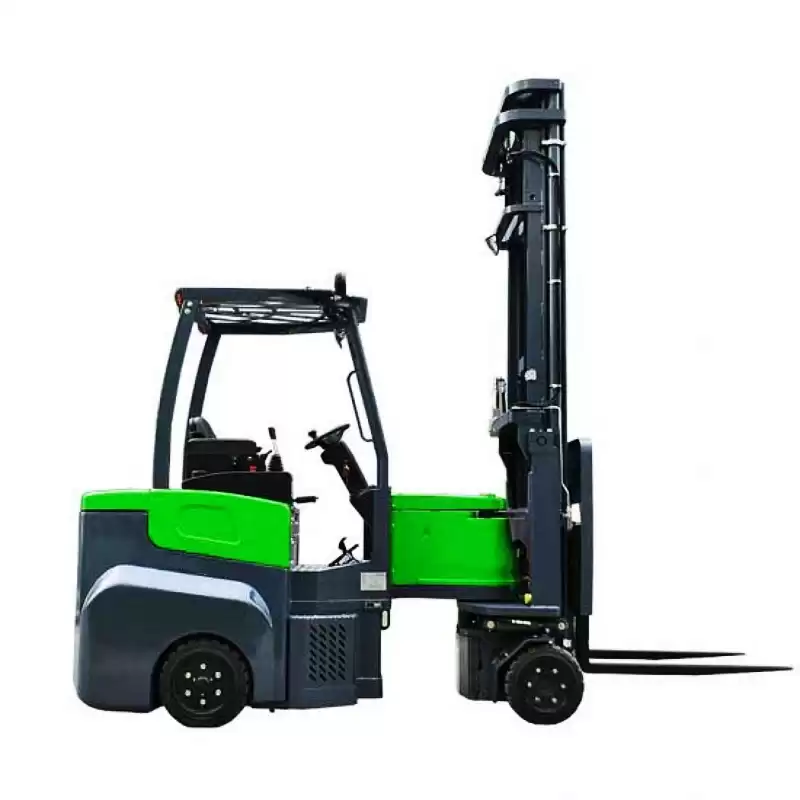

Narrow Asile Electric Articulated forklift Truck
The load capacity ranges of NVJ series articulated forklift can be 1.5-2.5 tons and the max lifting height can be 12.5m. Adopting front single drive mechanical differential bridge design, maintenance free full AC motor, large speed ratio gearbox which provides a greater climbing ability. It mainly to meet customers' demand of efficiency priority, medium and heavy duty working conditions, high lifting speed, high driving speed, large capacity battery, excellent ergonomics, easy operation, safety and excellent performance.

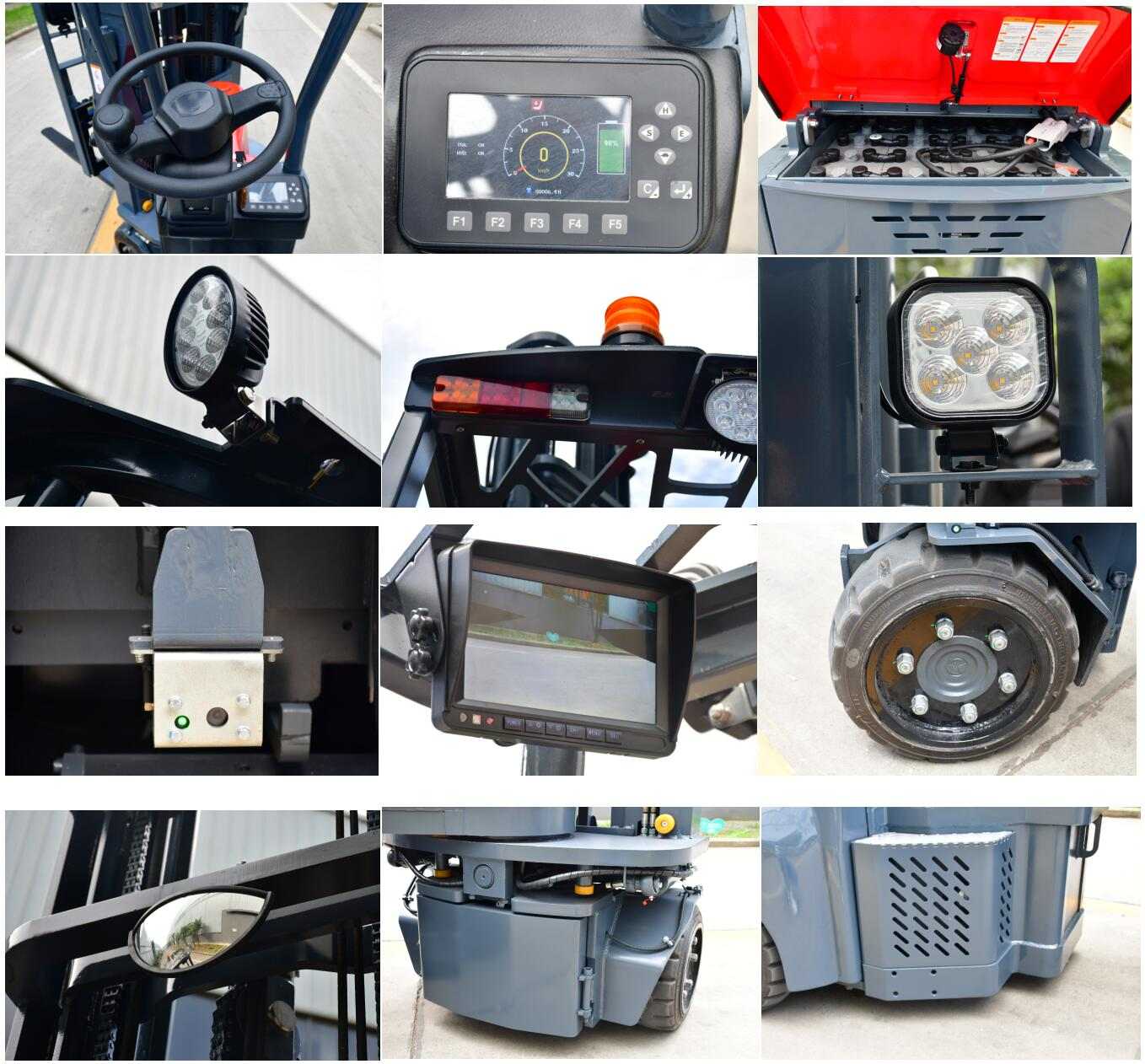

Main Features:
1.Adopting new concept and novel streamlined design, the visual effect is greatly improved.
2.Adopting wide view mast design with wireless camera and video display.
3.International advanced AC controller system enables the forklift to be controlled by computer program for walking, steering, lifting, and tilting.
4.Large-angle fully opened cover and removable rear door panel are convenient for battery replacement and maintenance.
5.AC motor has no maintenance cost such as replacing carbon brush. Reliability and long service life can be guaranteed with high-efficiency AC power system, complete protection functions, speed sensor and temperature sensor.
6.Safety is greatly improved by OPS function as standard configuration.
7.Equipped with high-brightness laser light, the operator can have a reliable reference when stacking in very narrow aisle.

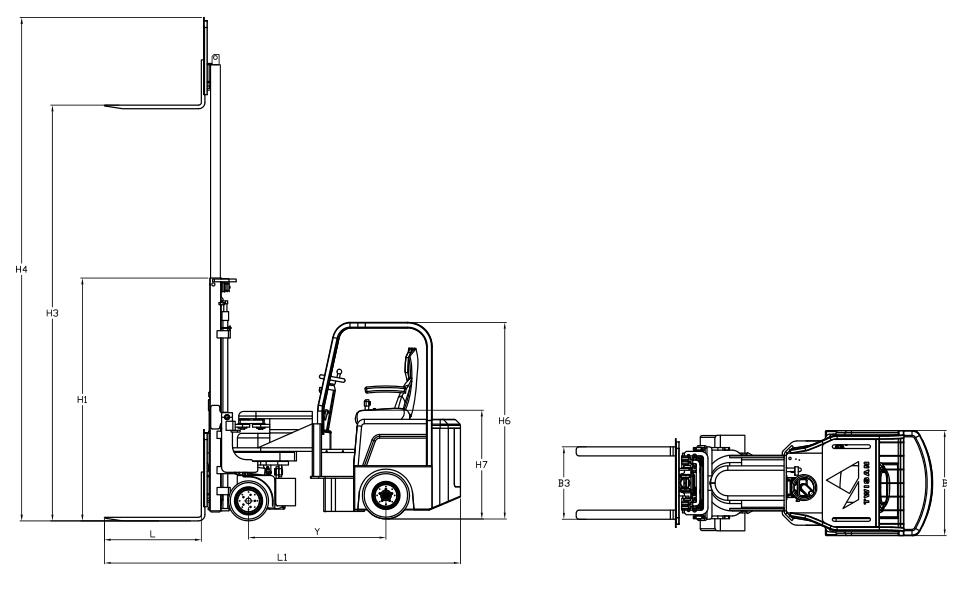

Specification:
| |
| |
Loading Capacity |
kg |
1500 |
2000 |
2500 |
|
| Load Center Distance |
mm |
500 |
500 |
500 |
| Standard lifting height |
mm |
6000 |
6000 |
6000 |
| Fork lenghth |
mm |
1070 |
1070 |
1070 |
| Turning angel |
° |
≤205 |
≤205 |
≤205 |
| Weight with battery |
kg |
6000 |
6500 |
7300 |
| Drive motor power |
kw |
7.5 |
11 |
11 |
| Oil pump motor power |
kw |
8.5 |
12 |
12 |
| Battery type |
|
Lead-acid battery |
Lead-acid battery |
Lead-acid battery |
| Battery voltage |
V |
48 |
80 |
80 |
| Battery capacity |
Ah |
600 |
750 |
750 |
| |

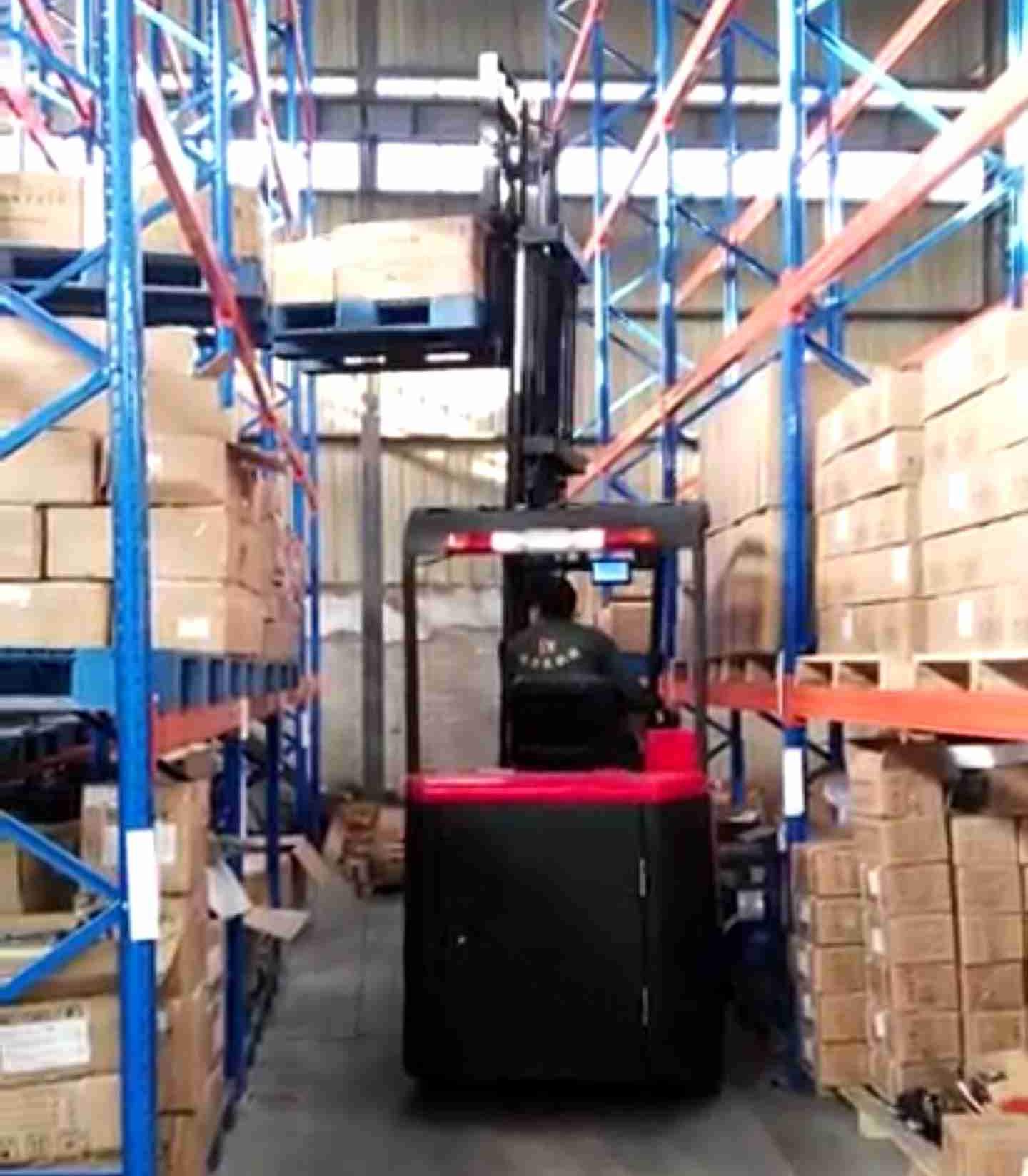

Application:
1.Cold warehouse
2.Food
3.Medical
4.Electronics
5.Hardware
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
