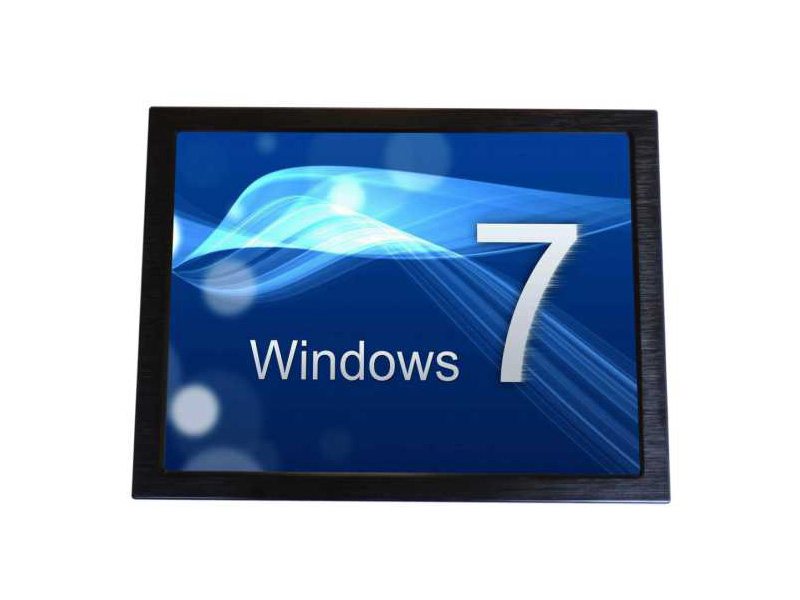

Narrow bezel 17 Inch Industrial Touch Screen Panel PC
Product Introduction
Yanyue IPPC-1705T Panel PC has a variety of touch control and display solutions for industrial automation, AI, IoT, commercial smart terminal, etc. And we offer OEM/ODM customization services in terms of appearance, screen size, screen types, and function modules.
| Specifications |
Optional Configurations |
| Front Panel |
Aluminum panel, brushed and oxidized natural color |
Other colours can be customized |
| Back Chassis |
1.2mm steel plate, Silver |
Other colours can be customized |
| LCD Screen |
17" TFT, LED backlight; Resolution 1280*1024; Dot matrix: 0.297*0.297; Max. colour: 16.2M; Brightness: 300cd/㎡; Contrast ratio: 800:1; Response time: 16ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85°). |
| Touch Screen |
Resistive screen |
Customizable Capcitive screen |
| Adaptive Motherboard |
Low Power ITX Motherboard in Yanyue |
All yanyue low-power ITX motherboards are available |
| CPU/GPU |
Intel i5 3317U |
Optional 3rd/4th/6th/7th Generation i3/i5/i7 U Series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G,Max up to 32G notebook memory |
| Hard Disk |
128G MSATA |
Optional 32G/64G/256G/512G mSATA;2.5"
500G/1T/2T HDD and 512G/1T SSD |

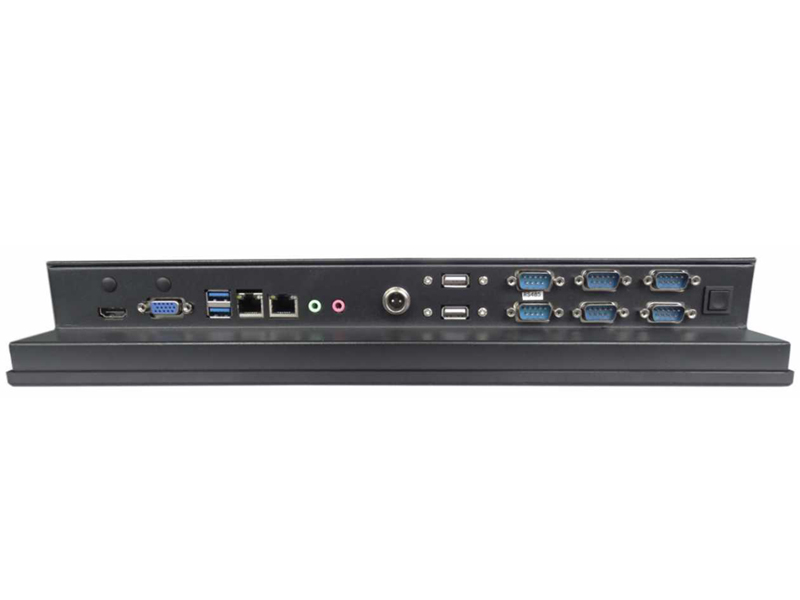

| Interfaces |
DC12V；4USB； 2RJ45(Gigabite）；VGA；HDMI; Audio out； MIC in；2 antenna holes; 6COM; DC Airline plug |
Optional 8USB or 6COM or 1LPT; customizable wide voltage input |
| Ethernet |
2LAN(Gigabite Network) |
|
| Display Interface |
VGA + HDMI |
|
| Size |
384(length)* 317(width)* 52(thickness)mm |
Net/Gross Weight |
5/6KG |
| Power Supply |
12V@5A Adapter |
|
| Installation Mode |
Recessed screw mount;Recessed hook mounting; VISA wall mount |
Product Features
■Ultra-low power consumption, thin design
■Brushed aluminum alloy panel
■IP64 waterproof rating
■Optional Soldered onboard I3/I5/I7 U series CPU motherboard
■ Standard 2LAN 4COM 4USB, other interfaces can be OEM
■ Support mSATA SSD and 2.5” SSD/HDD Simultaneous installation
■ Multiple mounting options available
■ Resistive touch screen
| Work and Environment |
| Working Temperature |
（-20～60）℃ |
Storage Temperature |
-40～75℃ |
Environmental Humidity |
0~90% air humidity, no condensation |
| IP Rating |
Panel IP64 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

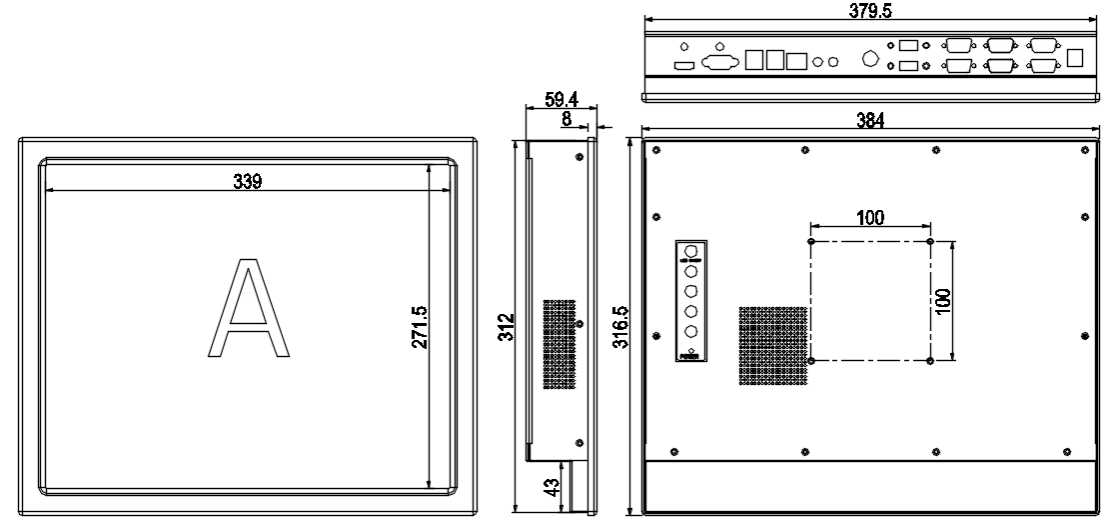

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
