Product name：Natural Cooling Tubular Linear Motor For Roller Garage Door
Specifications
Mover Spec.
|
LSMSS02-12-36-01
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
Continuous Force (Tmax）
|
Fc
|
N
|
2
|
Peak Force (1S)
|
Fp
|
N
|
6
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
5.5
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
8.4
|
Continuous Current
|
Ic
|
Arms
|
1.5
|
Peak Current (1S)
|
Ip
|
Arms
|
9.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
11.0
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
11.0
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
2.7
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
2
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
18
|
Magnetic Attraction
|
Fa
|
kN
|
0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
330
|
Vmax,Fc@Ubus=310Vdc
|
Vmax,Fc
|
m/s
|
71.7
|
Vmax,Fp@Ubus=310Vdc
|
Vmax,Fp
|
m/s
|
67.0
|
Vmax,0@Ubus=310Vdc
|
max,0
|
m/s
|
73.8
|
Mover Mass
|
Mp
|
Kg
|
0.045
|
Stator Mass within unit length
|
Ms
|
Kg
|
0.03
|

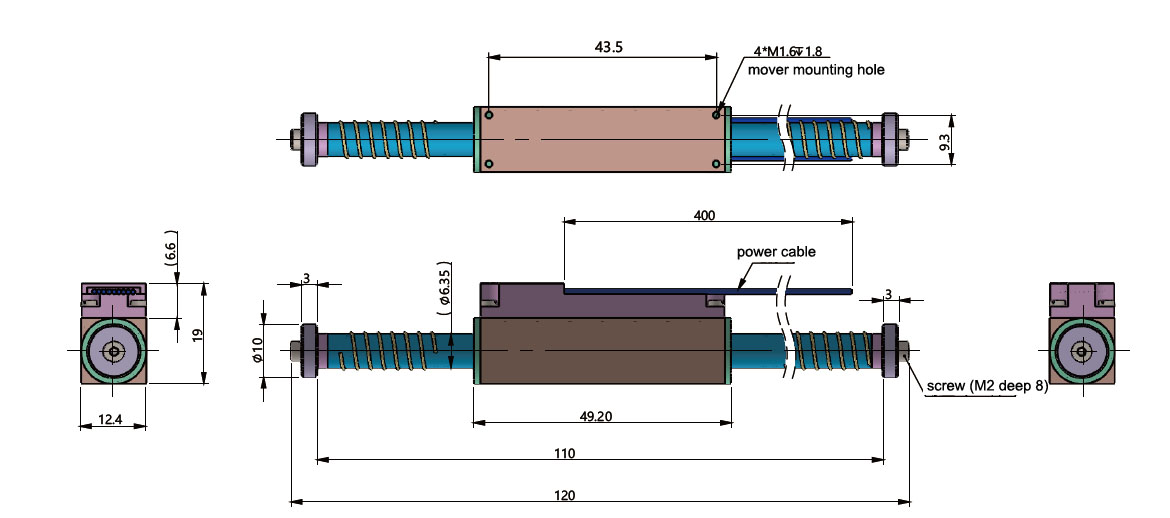

Dimension
Advantages:
1. Compact structure, easy to maintenance
2. High acceleration, maximum up to 10g
3. Wide speed range, can from a few microns to a few meters per second
4. High repetition accuracy. The accuracy depends on the position detection element, with appropriate feedback device can up to sub-micron level
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
