The product description
It is suitable for the recovery and utilization of associated gas in marginal oil well, and can be used as gas source for gas lift, discharged into external gas pipeline or sold as commercial gas into filling station after being pressurized and transported by trailer.
Product parameters
Technical parameters
|
The serial number
|
Inlet pressure
|
specifications
|
Volume flow
|
Equipped with power
|
Cooling way
|
|
1
|
0.05
|
W-5.6/0.5-250
|
500
|
160kW
|
Water cooled
|
|
2
|
0.1
|
W-7.5/(1-2)-250
|
900-1350
|
280kW
|
Water cooled
|
|
3
|
0.15-0.2
|
DF-4.7/(1.5-2)-250
|
700-840
|
185kW
|
Air cooling
|
|
4
|
0.15-0.3
|
W-3.6/(1.5-3)-250
|
540-860
|
160kW
|
Water cooled
|
|
5
|
0.1-0.3
|
D-3.45/(1-3)-250
|
410-830
|
185kW
|
Water cooled
|
|
6
|
0.2-0.4
|
DF-3.85/(2-4)-250
|
690-1150
|
220kW
|
Air or water cooled
|
|
7
|
0.2-0.5
|
DF-2.86/(2-5)-250
|
510-1020
|
185kW
|
Air or water cooled
|
|
8
|
0.3-0.5
|
VF-3.2/(3-5)-250
|
770-1150
|
200kW
|
Air or water cooled
|
|
9
|
0.4-0.6
|
DF-2.4/（4-6）-250
|
720-1000
|
185kW
|
Air or water cooled
|
|
10
|
0.6-1.2
|
DF-1.95/(6-12)-250
|
820-1520
|
220kW
|
Air or water cooled
|
|
11
|
0.8-1.6
|
DF-1.3/(8-16)-250
|
700-1320
|
160kW
|
Air or water cooled
|
|
12
|
0.8-1.6
|
DF-1.6/(8-16)-250
|
860-1320
|
220kW
|
Air or water cooled
|
|
13
|
1.0-1.5
|
DF-2/(10-15)-250
|
1320-1920
|
250kW
|
Air or water cooled
|
|
14
|
1.5-2.5
|
DF-0.58/(15-25)-250
|
550-900
|
90kW
|
Air or water cooled
|
|
15
|
1.5-2.5
|
DF-1.55/(15-25)-250
|
1500-2400
|
280kW
|
Air or water cooled
|
|
16
|
3.0-4.0
|
MF-1.35/(30-40)-250
|
2500-3700
|
315kW
|
Air or water cooled
|
|
17
|
0.1-0.3
|
DF-4/(1-3)-250
|
500-1000
|
185kW
|
Air cooling
|

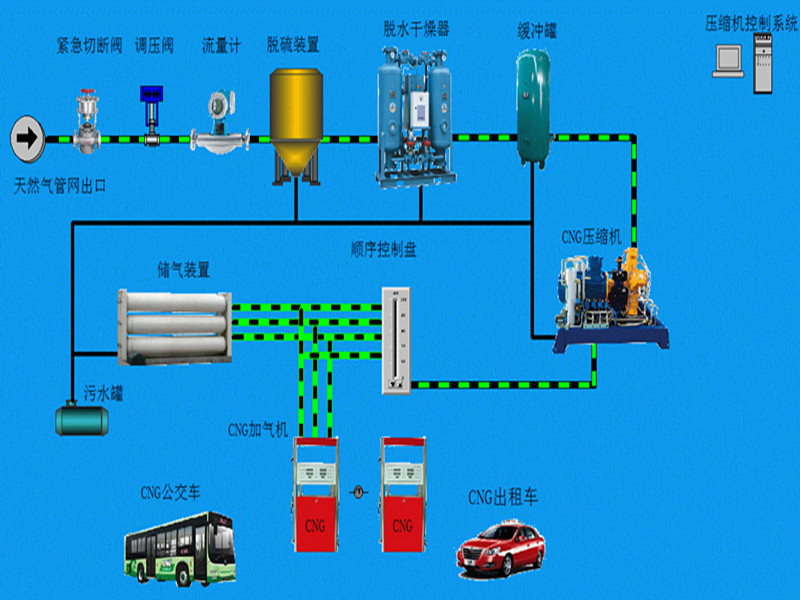

The natural gas is input by pipeline, pressurized by standard station compressor, and then directly inflated for CNG automobile or stored in fixed gas storage cylinder group (well).Filling station process system: pressure regulating and measuring device, desulfurization and dehydration device, natural gas compressor, CNG gas storage facility, sequence control device, CNG gas feeding facility, on-site safety and explosion protection device of gas feeding facility, electrical control device, CNG pipeline and components, etc
Product advantage
1.Easy operation and management, only high pressure gas is injected as required.
2.Low cost, no electricity (use natural gas).Less investment
3Adopt the technology of German mannesmann demag, the product reliability is high.
4.The whole skid-mounted structure, low noise, easy to install in the city, saving investment.
