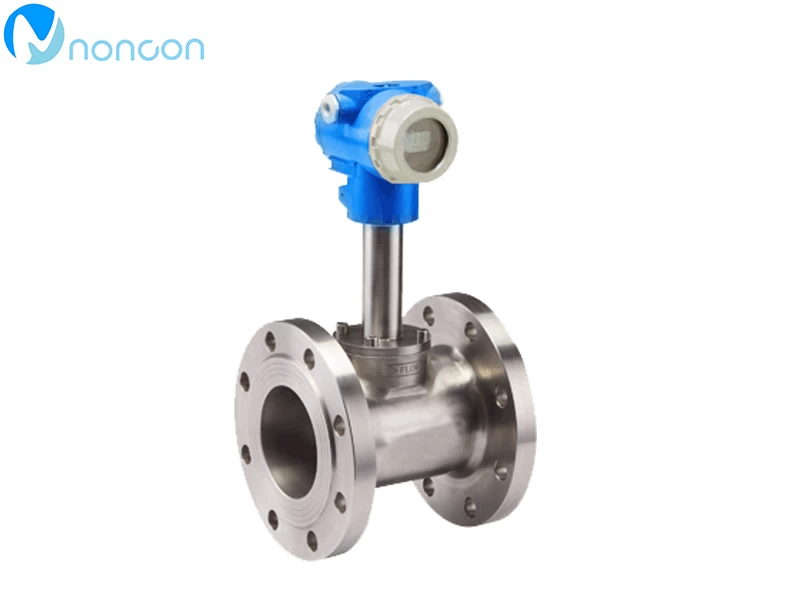

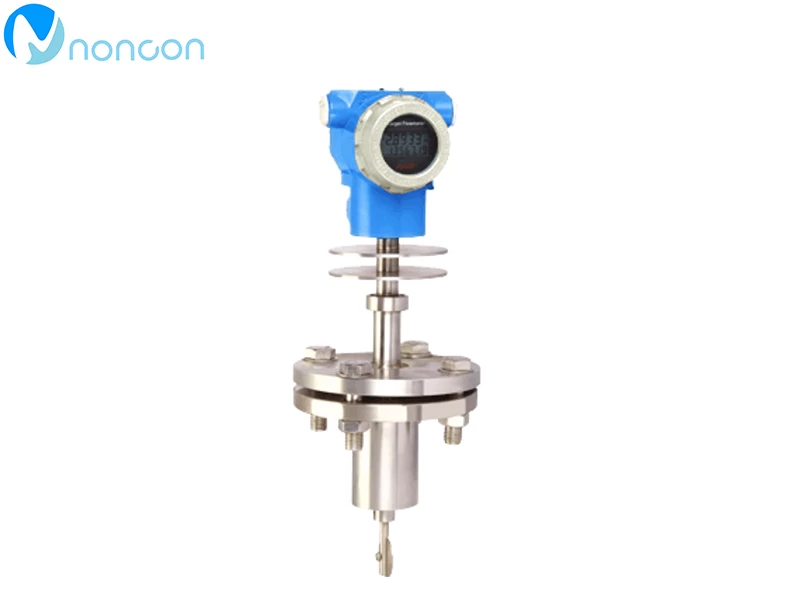

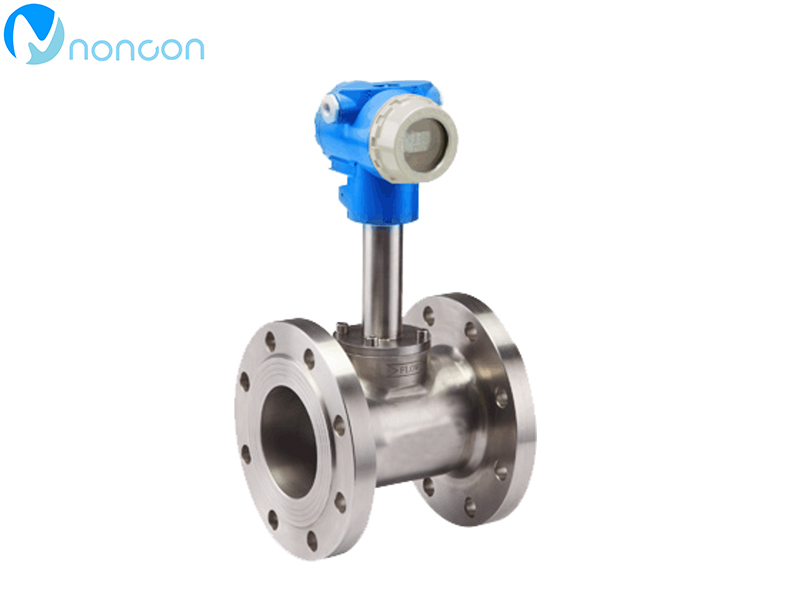

Features
Using capacitive force sensor is the new product key core to realize high precision, high stability, completely changed the original strain type target flowmeter temperature drift is big, poor ability to resist overload (shock), such as static sealing point restrictions, not only played a target flowmeter the original technical advantages, at the same time have comparable to volumetric flowmeter measurement accuracy, together with its unique anti-jamming performance, resistance to impurities, in addition to substitute for conventional flow measurement can measure flow problems, especially in small flow, high viscosity, easy clot blocking, high and low temperature, strong corrosion, strong vibration, flow measurement has the very good adaptability in difficult conditions.At present, it has been widely used in various fields such as metallurgy, petroleum, chemical industry, energy, food and environmental protection.
Selection table and model specification
1、Selection table Table 1
|
Model
|
Explain
|
|
NBL—
|
¨
|
¨
|
¨
|
¨
|
¨
|
¨
|
¨
|
¨
|
¨
|
¨
|
Intelligent target flowmeter
|
|
Instrument type
|
|
|
|
|
|
|
|
|
|
|
A*:Taper pipe thread type A:Pipe flange type B:Clip type C:plug-in D:Online removable E:Other
|
|
Medium type
|
|
Y:Liquid Q:Gas z:Steam
|
|
Instrument path
|
|
10~5000mm
|
|
Medium temperature
|
|
D: Low temperature(-30℃~-200℃)
C: Normal temperature (-20℃~+80℃)
Z: Medium temperature(+80℃~+200℃)
G:High temperature(+200℃~+500℃)
|
|
Nominal pressure
|
|
A:0.6MPa B:1.0MPa C:1.6MPa D:2.5MPa E:4.0MPa F:5.0MPa G:10.0MPa H:15.0MPa I:20.0MPa J:25.0MPa K:42.0MPa L:2.0MPa M:6.3MPa N:11.0MPa O:16.0MPa P:26.0MPa
|
|
Compensation form
|
|
P:Pressure compensation T:Temperature compensation
|
|
Output form
|
|
N:No output (built-in lithium battery display display)
S:Pulse output
I:4~20mA Current output (two-wire system)
R：Communication output
G:GPRS Wireless remote transmission
|
|
Explosion-proof structure
|
|
X:Intrinsically safe type
Y:Flameproof type
|
|
Shell material
|
|
T:Carbon steel N:Stainless steel
Q:Special materials
|
|
Sensor material
|
|
1：Hastelloy 2：Titanium
3：304 stainless steel
|
2、Selection example
NBL - AQ100CDPIXN means: the target flowmeter is pipeline flanged, the measuring medium is gas, the nominal diameter is 100mm, the medium temperature is normal temperature, the nominal pressure is 2.5mpa (flange specification) with pressure compensation, 4~20mA current output, the explosion-proof mark is Ben an, the measuring tube material is stainless steel.
Measurement range selection of Flowmeter
1、Standard water flow measurement range table Table 2
|
Nominal diameter
DN(mm)
|
Measuring range (gauge pressure) Nm³/h
|
|
0.01MPa
|
0.1
MPa
|
0.2
MPa
|
0.3
MPa
|
0.4
MPa
|
0.6
MPa
|
0.8
MPa
|
1.0
MPa
|
2.0
MPa
|
|
15
|
2 ~ 20
|
4 ~40
|
6 ~ 60
|
8 ~ 80
|
10~100
|
14~140
|
18~180
|
22~220
|
42~420
|
|
20
|
3 ~ 30
|
6 ~ 60
|
9 ~ 90
|
12~120
|
15~150
|
21~210
|
27~270
|
33~330
|
63~630
|
|
25
|
5 ~ 50
|
10~100
|
15~150
|
20~200
|
25~250
|
35~350
|
45~450
|
55~550
|
105~1050
|
|
32
|
8 ~ 80
|
16~160
|
24~240
|
32~320
|
40~400
|
56~560
|
72~720
|
88~880
|
168~1680
|
|
40
|
13~130
|
26~260
|
39~390
|
42~420
|
65~650
|
91~910
|
117~1170
|
143~1430
|
273~2730
|
|
50
|
20~200
|
40~400
|
60~600
|
80~800
|
100~1000
|
140~1400
|
180~1800
|
220~2200
|
420~4200
|
|
65
|
35~350
|
70~700
|
105~1050
|
140~1400
|
175~1750
|
245~2450
|
315~3150
|
385~3850
|
735~7350
|
|
80
|
50~500
|
100~1000
|
150~1500
|
200~2000
|
250~2500
|
350~3500
|
450~4500
|
550~5500
|
1050~10500
|
|
100
|
80~800
|
160~1600
|
240~2400
|
320~3200
|
400~4000
|
560~5600
|
720~7200
|
880~8800
|
1680~16800
|
|
125
|
130~ 1300
|
260~2600
|
390~3900
|
420~4200
|
650~6500
|
910~9100
|
1170~11700
|
1430~14300
|
2730~27300
|
|
150
|
180~1800
|
360~3600
|
540~5400
|
720~7200
|
900~9000
|
1260~12600
|
1620~16200
|
1980~19800
|
3780~37800
|
|
200
|
300~3000
|
600~6000
|
900~9000
|
1200~12000
|
1500~15000
|
2100~21000
|
2700~27000
|
3300~33000
|
6300~63000
|
|
250
|
500~5000
|
1000~10000
|
1500~15000
|
2000~20000
|
2500~25000
|
3500~35000
|
4500~45000
|
5500~55000
|
10500~105000
|
|
300
|
750~7500
|
1500~15000
|
2250~22500
|
3000~30000
|
3750~37500
|
5250~52500
|
6750~67500
|
8250~82500
|
15750~157500
|
|
350
|
1000~10000
|
2000~20000
|
3000~30000
|
4000~40000
|
5000~50000
|
7000~70000
|
9000~90000
|
11000~110000
|
21000~210000
|
|
400
|
1300~13000
|
2600~26000
|
3900~39000
|
4200~42000
|
6500~65000
|
9100~91000
|
11700~117000
|
14300~143000
|
27300~273000
|
|
450
|
1700~17000
|
3400~34000
|
5100~51000
|
6800~68000
|
8500~85000
|
11900~119000
|
15300~153000
|
18700~187000
|
35700~357000
|
|
500
|
2000~20000
|
4000~40000
|
6000~60000
|
8000~80000
|
10000~100000
|
14000~140000
|
18000~180000
|
22000~220000
|
42000~420000
|
|
550
|
2500~25000
|
5000~50000
|
7500~75000
|
10000~100000
|
12500~125000
|
17500~175000
|
22500~225000
|
27500~275000
|
52500~525000
|
|
600
|
3000~30000
|
6000~60000
|
9000~90000
|
12000~120000
|
15000~150000
|
21000~210000
|
25000~250000
|
33000~330000
|
52500~525000
|
|
700
|
4000~40000
|
8000~80000
|
12000~120000
|
16000~160000
|
20000~200000
|
28000~280000
|
36000~360000
|
44000~440000
|
84000~840000
|
|
800
|
5000~50000
|
10000~10000
|
15000~150000
|
20000~200000
|
25000~250000
|
35000~350000
|
45000~450000
|
55000~550000
|
105000~1050000
|
|
900
|
6500~65000
|
13000~13000
|
19500~195000
|
26000~260000
|
32500~325000
|
45500~455000
|
58500~585000
|
71500~715000
|
136500~1365000
|
|
1000
|
8000~80000
|
16000~16000
|
24000~240000
|
32000~320000
|
40000~400000
|
56000~560000
|
72000~720000
|
88000~880000
|
168000~1680000
|
Note：Actual pressure drop=（Actual flow / full scale flow）²×Full range maximum pressure drop.
2、Type selection calculation

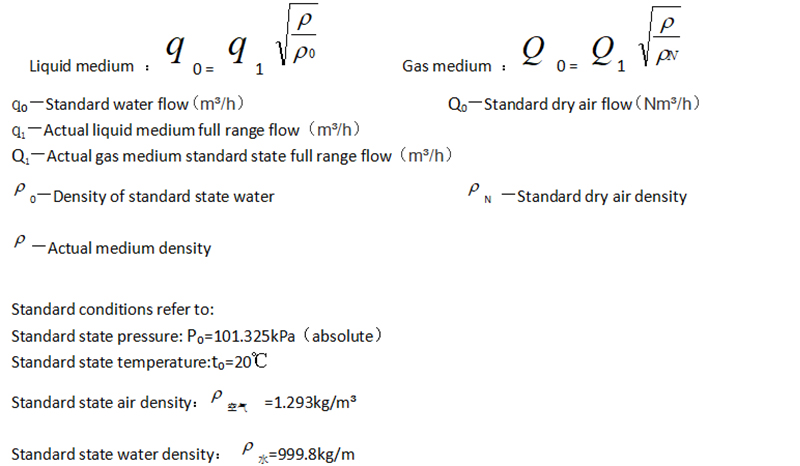

The selection of all NBL series target flowmeters shall be calculated to convert the actual flow rate into the equivalent standard flow rate, and then select the appropriate caliber and model according to the table.
The formula is as follows：
3、Standard dry air flow measurement range table Table 3
|
Nominal diameter
DN(mm)
|
Measuring range (gauge pressure) Nm³/h
|
|
0.01MPa
|
0.1
MPa
|
0.2
MPa
|
0.3
MPa
|
0.4
MPa
|
0.6
MPa
|
0.8
MPa
|
1.0
MPa
|
2.0
MPa
|
|
15
|
2 ~ 20
|
4 ~40
|
6 ~ 60
|
8 ~ 80
|
10~100
|
14~140
|
18~180
|
22~220
|
42~420
|
|
20
|
3 ~ 30
|
6 ~ 60
|
9 ~ 90
|
12~120
|
15~150
|
21~210
|
27~270
|
33~330
|
63~630
|
|
25
|
5 ~ 50
|
10~100
|
15~150
|
20~200
|
25~250
|
35~350
|
45~450
|
55~550
|
105~1050
|
|
32
|
8 ~ 80
|
16~160
|
24~240
|
32~320
|
40~400
|
56~560
|
72~720
|
88~880
|
168~1680
|
|
40
|
13~130
|
26~260
|
39~390
|
42~420
|
65~650
|
91~910
|
117~1170
|
143~1430
|
273~2730
|
|
50
|
20~200
|
40~400
|
60~600
|
80~800
|
100~1000
|
140~1400
|
180~1800
|
220~2200
|
420~4200
|
|
65
|
35~350
|
70~700
|
105~1050
|
140~1400
|
175~1750
|
245~2450
|
315~3150
|
385~3850
|
735~7350
|
|
80
|
50~500
|
100~1000
|
150~1500
|
200~2000
|
250~2500
|
350~3500
|
450~4500
|
550~5500
|
1050~10500
|
|
100
|
80~800
|
160~1600
|
240~2400
|
320~3200
|
400~4000
|
560~5600
|
720~7200
|
880~8800
|
1680~16800
|
|
125
|
130~ 1300
|
260~2600
|
390~3900
|
420~4200
|
650~6500
|
910~9100
|
1170~11700
|
1430~14300
|
2730~27300
|
|
150
|
180~1800
|
360~3600
|
540~5400
|
720~7200
|
900~9000
|
1260~12600
|
1620~16200
|
1980~19800
|
3780~37800
|
|
200
|
300~3000
|
600~6000
|
900~9000
|
1200~12000
|
1500~15000
|
2100~21000
|
2700~27000
|
3300~33000
|
6300~63000
|
|
250
|
500~5000
|
1000~10000
|
1500~15000
|
2000~20000
|
2500~25000
|
3500~35000
|
4500~45000
|
5500~55000
|
10500~105000
|
|
300
|
750~7500
|
1500~15000
|
2250~22500
|
3000~30000
|
3750~37500
|
5250~52500
|
6750~67500
|
8250~82500
|
15750~157500
|
|
350
|
1000~10000
|
2000~20000
|
3000~30000
|
4000~40000
|
5000~50000
|
7000~70000
|
9000~90000
|
11000~110000
|
21000~210000
|
|
400
|
1300~13000
|
2600~26000
|
3900~39000
|
4200~42000
|
6500~65000
|
9100~91000
|
11700~117000
|
14300~143000
|
27300~273000
|
|
450
|
1700~17000
|
3400~34000
|
5100~51000
|
6800~68000
|
8500~85000
|
11900~119000
|
15300~153000
|
18700~187000
|
35700~357000
|
|
500
|
2000~20000
|
4000~40000
|
6000~60000
|
8000~80000
|
10000~100000
|
14000~140000
|
18000~180000
|
22000~220000
|
42000~420000
|
|
550
|
2500~25000
|
5000~50000
|
7500~75000
|
10000~100000
|
12500~125000
|
17500~175000
|
22500~225000
|
27500~275000
|
52500~525000
|
|
600
|
3000~30000
|
6000~60000
|
9000~90000
|
12000~120000
|
15000~150000
|
21000~210000
|
25000~250000
|
33000~330000
|
52500~525000
|
|
700
|
4000~40000
|
8000~80000
|
12000~120000
|
16000~160000
|
20000~200000
|
28000~280000
|
36000~360000
|
44000~440000
|
84000~840000
|
|
800
|
5000~50000
|
10000~10000
|
15000~150000
|
20000~200000
|
25000~250000
|
35000~350000
|
45000~450000
|
55000~550000
|
105000~1050000
|
|
900
|
6500~65000
|
13000~13000
|
19500~195000
|
26000~260000
|
32500~325000
|
45500~455000
|
58500~585000
|
71500~715000
|
136500~1365000
|
|
1000
|
8000~80000
|
16000~16000
|
24000~240000
|
32000~320000
|
40000~400000
|
56000~560000
|
72000~720000
|
88000~880000
|
168000~1680000
|
Note：Dry air in table is 20℃, 0.101MPa standard dry air flow rate under absolute pressure.
