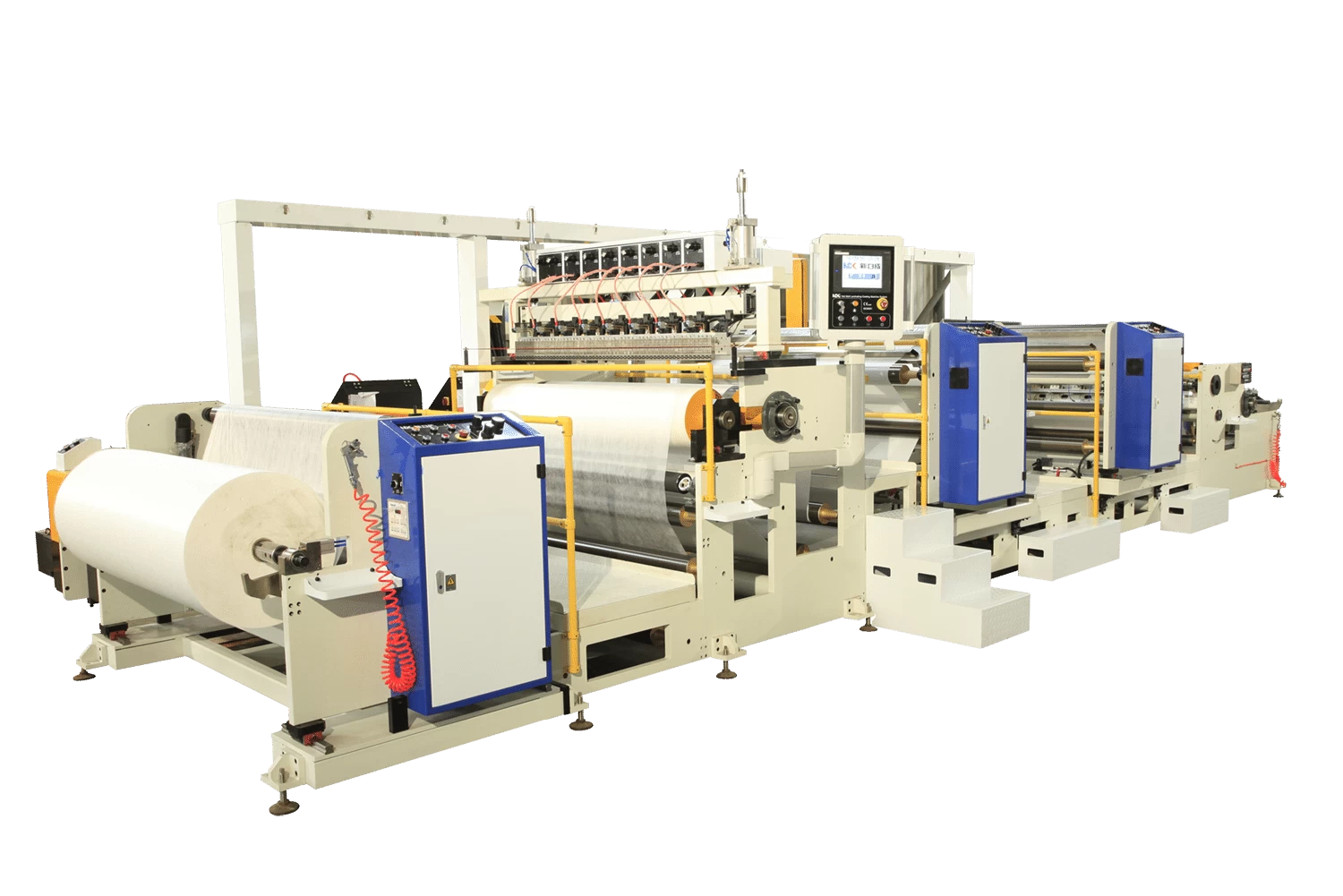

HOT MELT LAMINATING MACHINE
Basic Info
Model NO.: NTH1600
Hot Melt Application: Spray Coating for Nonwoven/ Filter Materials
Certificate: Ce,ISO Certificates
Coating Type: Non-Streak Coating(with Rotary Bar)
Samples Testing: Free
Unwinder Diameter: 1200mm
Rewinder Diamer: 1200mm
Trademark: NDC
Transport Package: Spray Coating Machine Packed in Cartons
Specification: 17000mm x 6000mm x 2600mm
Origin: China
HS Code: 84778000
Product Description
|
Device Name
|
Medical Isolation Cloth Hot Melt Coating Machine Hot Glue Machine
|
|
Power
|
AC380V, 3-phase, 4-wire As required
|
|
Max. Web Width:
|
1600mm
|
Coating width:
|
1600mm
|
|
Design Speed
|
250m/min
|
Production Rate
|
200m/min
|
|
Adhesive
|
SIS.EVA
|
Viscosity
|
10000CPS
|
|
Working temp.of Coating Die
|
120 ºC-180 ºC
|
|
Application in
|
Nonwoven spray coating/Filter materials Laminating
|
|
Coating Die
|
non-contact fiber spray coating applicator
|
|
Delivery
|
By Sea
|
|
Dimension: 17000mm x 6000mm x 2600mm
|
|
Color of Framework and Unit
|
ivory-white (No.RAL0015)
|
|
Operation
|
Touch Screen
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
35T
|
Main characteristic
1,This hot melt coating machine is constructed with 80mm wall panels & steel links and processed by CNC boring & milling machine center with fine appearance and high precious strength.
2,This hot melt coating machine is equipped with turrerts unwinders and rewinder or single unwinder and rewinder, laminating unit, spraying coating system ,driving system, auto-control system,pneumatic system and web guidance and designed scientifically and logically for the convenience of maintenance and upgrade with excellent quality.
3, PLC Control system with touch screen makes operation more easier and accurate.

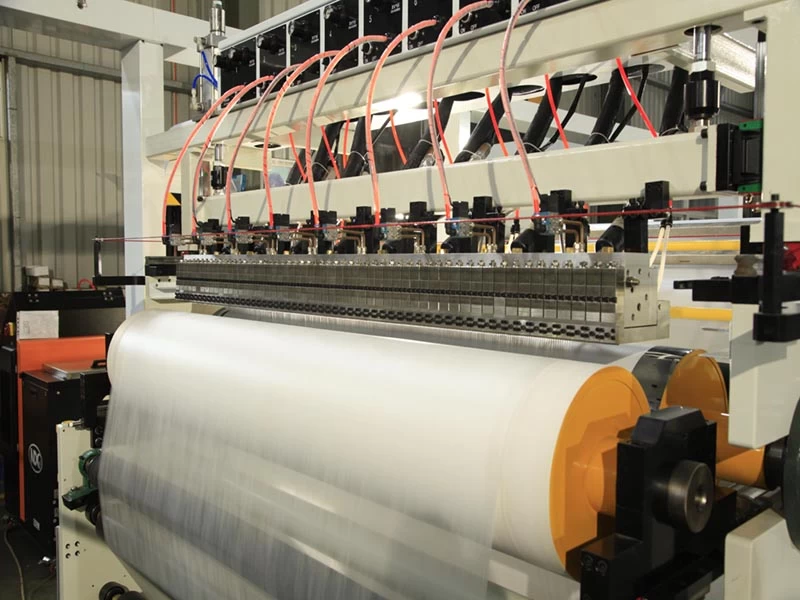

4,High quality advanced hot melt coating/spary coating applicator. External aluminum alloy heating module design for coating die can prevent carbonation from local high temperature.

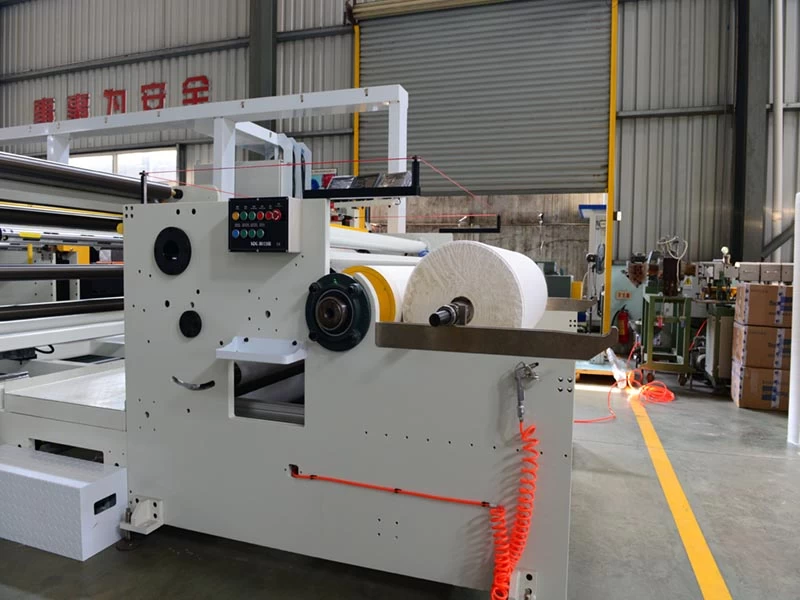

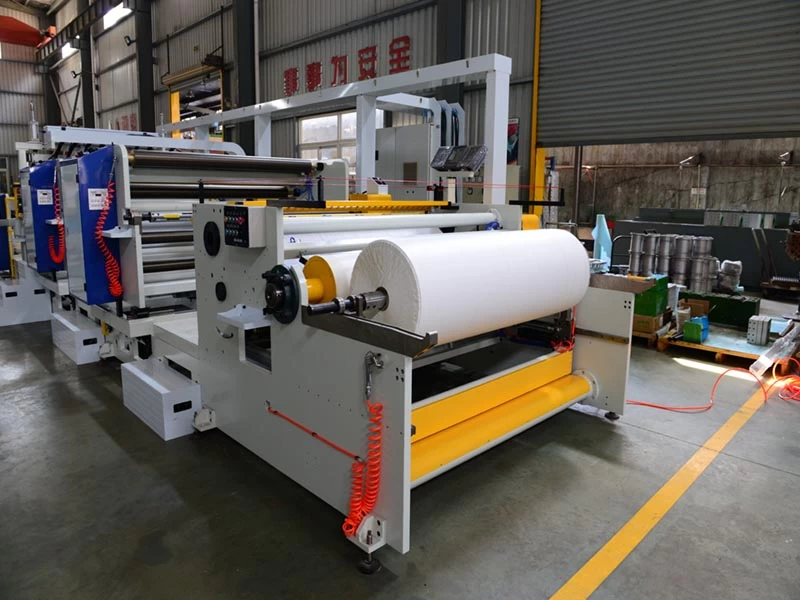

5,Unwinder diameters:1200mm, Rewinder diameters:1200mm. Or As required.
6,Electrical control system (With CE Standard)
