Basic Info
Model NO.: TB1200
Customized: Accepted
Effective Coating Width: 1300mm or as Required
Unwinder: Turrets/Single Unwinder
Rewinder: Turrets/Single Rewinder
Hot Melt Application: Paper or Film Coating and Lamination
Certificate: CE,ISO Certificates
Coating Type: Non-Streak Coating(with Rotary Bar)
Samples Testing: Free
Unwinder Diameter: 1200mm
Rewinder Diamer: 1100mm
Trademark: NDC
Transport Package: Coating Machine Packed in Cartons
Specification: 15000mm x 6000mm x 2600mm
Origin: China
HS Code: 84778000
Product
Description
|
Device Name
|

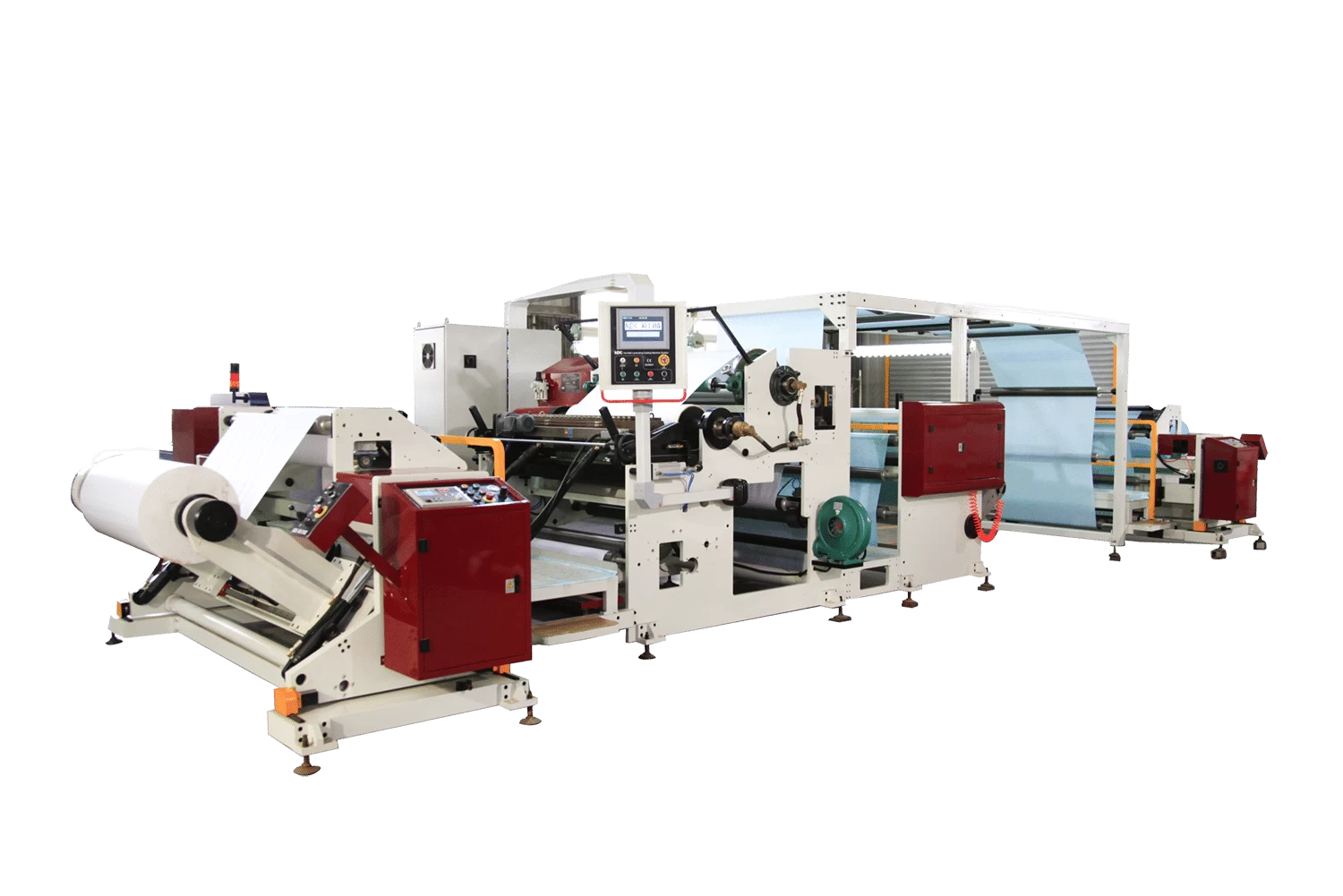

Film Coating Machine Hot Melt Coater
|
|
Power
|
AC380V, 3-phase, 4-wire As required
|
|
Max. Web Width:
|
1300mm
|
Coating width:
|
1300mm
|
|
Design Speed
|
300m/min
|
Production Rate
|
250m/min
|
|
Adhesive
|
SIS
|
Viscosity
|
10000CPS
|
|
Working temp.of Coating Die
|
120 ºC-180 ºC
|
|
Application in
|
Adhesive Label and Tape/ Paper and Film Coating
|
|
Coating Die
|
Non-streak Coating(Slot Die With Smooth Bar)
|
|
Delivery
|
By Sea
|
|
Dimension: 15000mm x 6000mm x 2600mm
|
|
Color of Framework and Unit
|
ivory-white (No.RAL0015)
|
|
Operation
|
Touch Screen
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
35T
|
Main characteristic
1,This hot melt
coating machine is constructed with 80 mm wall panels & steel links and
processed by CNC boring & milling machine center with fine appearance
and high precious strength.
2,This hot melt
coating machine is equipped with turrerts unwinder and
rewinder, laminating unit, coating system ,driving system, auto-control
system,pneumatic system and web guidance and designed
scientifically and logically for the convenience of maintenance and upgrade with
excellent quality.
3, PLC Control
system with touch screen makes operation more easier and accurate.
4,High quality
advanced hot melt coating/ spray coating applicator. External aluminum
alloy heating module design for coating die can prevent carbonation from local
high temperature.
5,Unwinder
diameters: 1200mm, Rewinder diameters : 1100mm.
6,Electrical
control system (With CE Standard)
