Basic Info
Model NO.: NTH1600
Hot Melt Application: Spray Coating for Nonwoven/ Filter Materials
Certificate: Ce,ISO Certificates
Coating Type: Non-Streak Coating(with Rotary Bar)
Samples Testing: Free
Unwinder Diameter: 1200mm
Rewinder Diamer: 1200mm
Trademark: NDC
Transport Package: Spray Coating Machine Packed in Cartons
Specification: 17000mm x 6000mm x 2600mm
Origin: China
HS Code: 84778000
Product
Description
|
Device Name
|

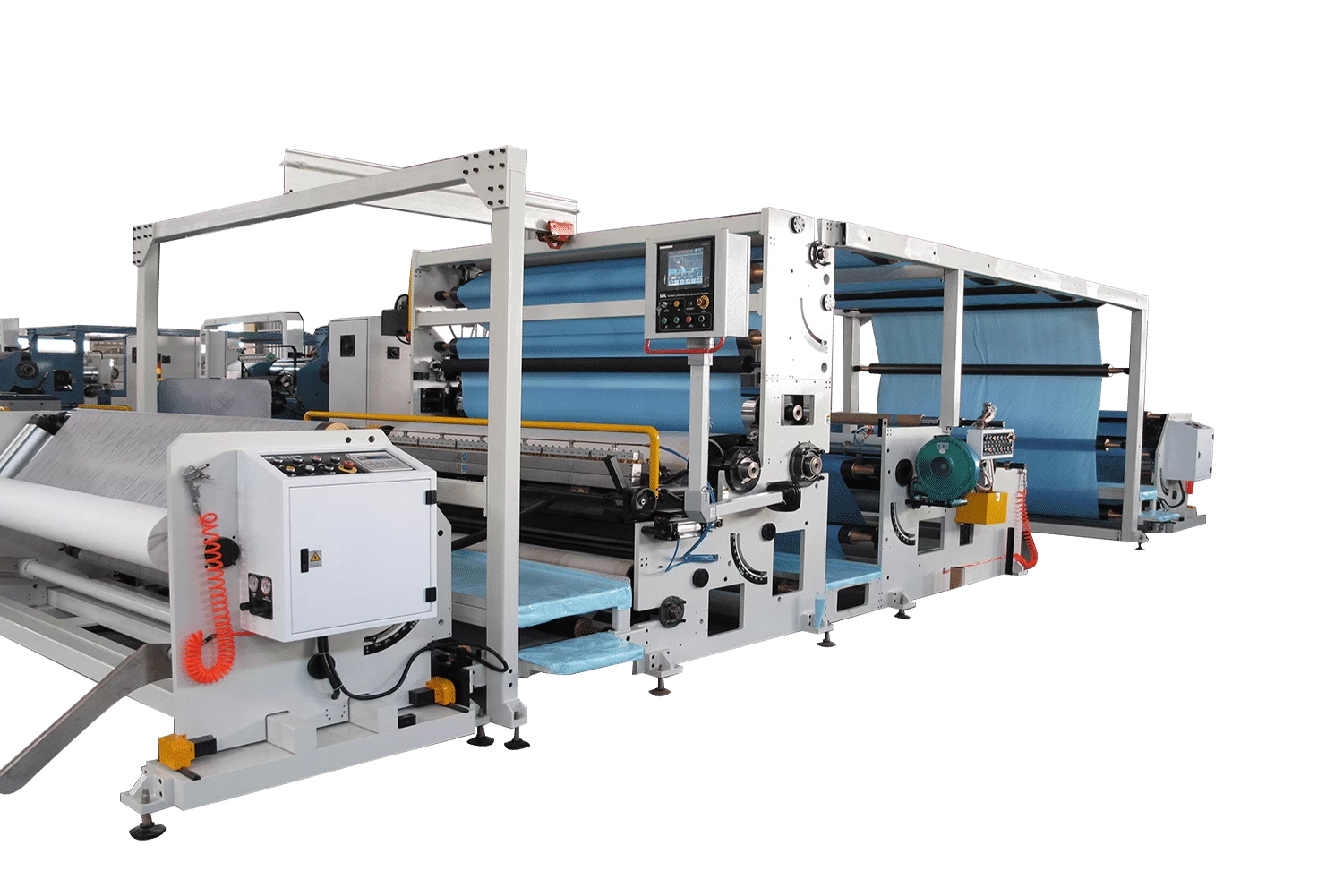

Medical Nonwoven Application Hot Melt Coater High Quality Stable Performance
|
|
Power
|
AC380V, 3-phase, 4-wire As required
|
|
Max. Web Width:
|
1600mm
|
Coating width:
|
1600mm
|
|
Design Speed
|
250m/min
|
Production Rate
|
200m/min
|
|
Adhesive
|
SIS.EVA
|
Viscosity
|
10000CPS
|
|
Working temp.of Coating Die
|
120 ºC-180 ºC
|
|
Application in
|
Nonwoven spray coating/Filter materials Laminating
|
|
Coating Die
|
non-contact fiber spray coating applicator
|
|
Delivery
|
By Sea
|
|
Dimension: 17000mm x 6000mm x 2600mm
|
|
Color of Framework and Unit
|
ivory-white (No.RAL0015)
|
|
Operation
|
Touch Screen
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
35T
|
Main characteristic
1,This hot melt
coating machine is constructed with 80mm wall panels & steel links and
processed by CNC boring & milling machine center with fine appearance
and high precious strength.
2,This hot melt
coating machine is equipped with turrerts unwinders and rewinder or single
unwinder and rewinder, laminating unit, spraying coating system ,driving
system, auto-control system,pneumatic system and web guidance
and designed scientifically and logically for the convenience of
maintenance and upgrade with excellent quality.
3, PLC Control
system with touch screen makes operation more easier and accurate.

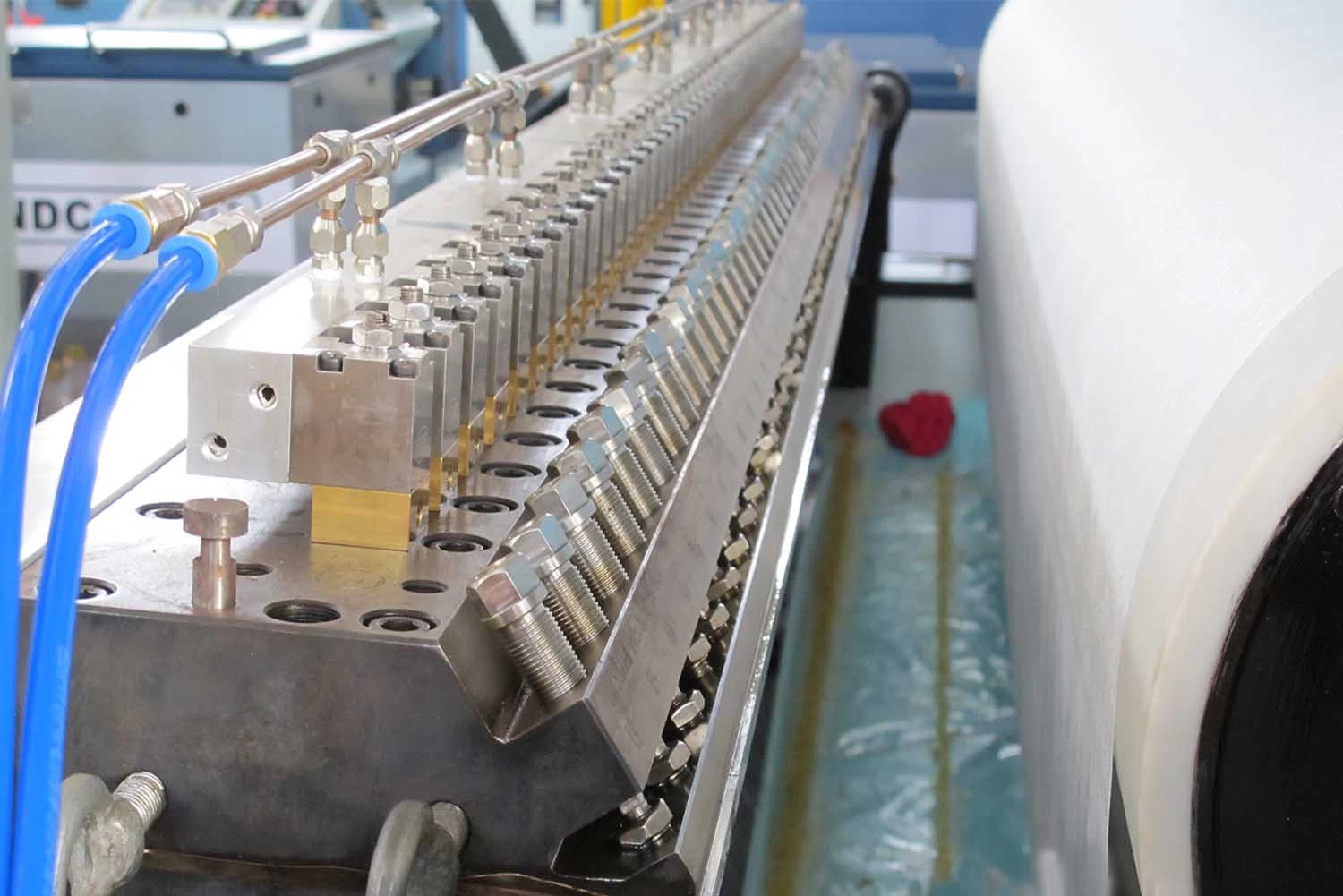

4,High quality
advanced hot melt coating/spary coating applicator. External aluminum
alloy heating module design for coating die can prevent carbonation from local
high temperature.
5,Unwinder
diameters:1200mm, Rewinder diameters:1200mm. Or As required.
6,Electrical
control system (With CE Standard)
