Basic Info
Model NO.: NTH1200
Customized: Accepted
Effective Coating Width: 1300mm or as
Required
Unwinder: Turrets/ Single Unwinder
Rewinder: Turrets/Single Rewinder
Hot Melt Application: Paper or Film
Coating and Lamination
Certificate: CE, ISO Certificates
Coating Type: Non-Streak Coating (with
Rotary Bar)
Samples Testing: Free
Unwinder Diameter: 1200mm
Rewinder Diamer: 1100mm
Trademark: NDC
Transport Package: Coating Machine
Packed in Cartons
Specification: 13000mm x 6000mm x
2600mm
Origin: China
HS Code: 84778000
Product Description
|
Device Name
|

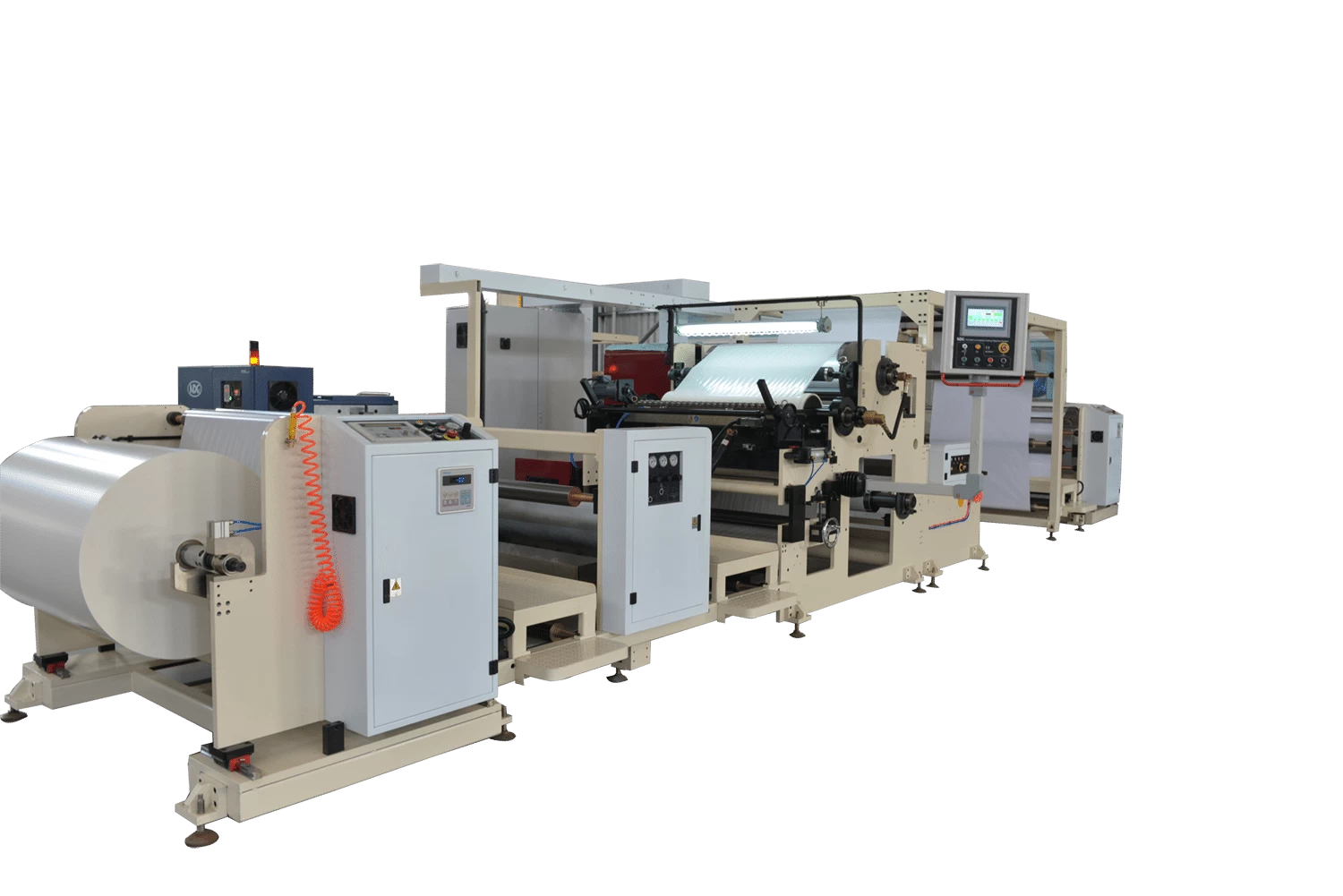

China Advanced Hot Melt Coating Machine
|
|
Power
|
AC380V, 3-phase, 4-wire As required
|
|
Max. Web Width:
|
1100mm
|
Coating width:
|
1100mm
|
|
Design Speed
|
200m/min
|
Production Rate
|
150m/min
|
|
Adhesive
|
SIS
|
Viscosity
|
10000CPS
|
|
Working temp.of Coating Die
|
120 ºC-180 ºC
|
|
Application in
|
Adhesive Label and Tape/ Paper and Film Coating
|
|
Coating Die
|
Non-streak Coating(Slot Die With Smooth Bar)
|
|
Delivery
|
By Sea
|
|
Dimension: 13000mm x 6000mm x 2600mm
|
|
Color of Framework and Unit
|
ivory-white (No.RAL0015)
|
|
Operation
|
Touch Screen
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
35T
|
Main characteristic
1,This hot melt coating machine is constructed with 80mm wall panels &
steel links and processed by CNC boring & milling machine center with
fine appearance and high precious strength.
2,This hot melt coating machine is equipped with turrerts unwinders and
rewinder, laminating unit, coating system ,driving system, auto-control
system,pneumatic system and web guidance and designed
scientifically and logically for the convenience of maintenance and upgrade
with excellent quality.
3, PLC Control system with touch screen makes operation more easier and
accurate.
4,High quality advanced hot melt coating/spray coating
applicator. External aluminum alloy heating module design for coating die
can prevent carbonation from local high temperature.
5,Unwinder diameters:1200mm, Rewinder diameters:1100mm.
6,Electrical control system (With CE Standard)
