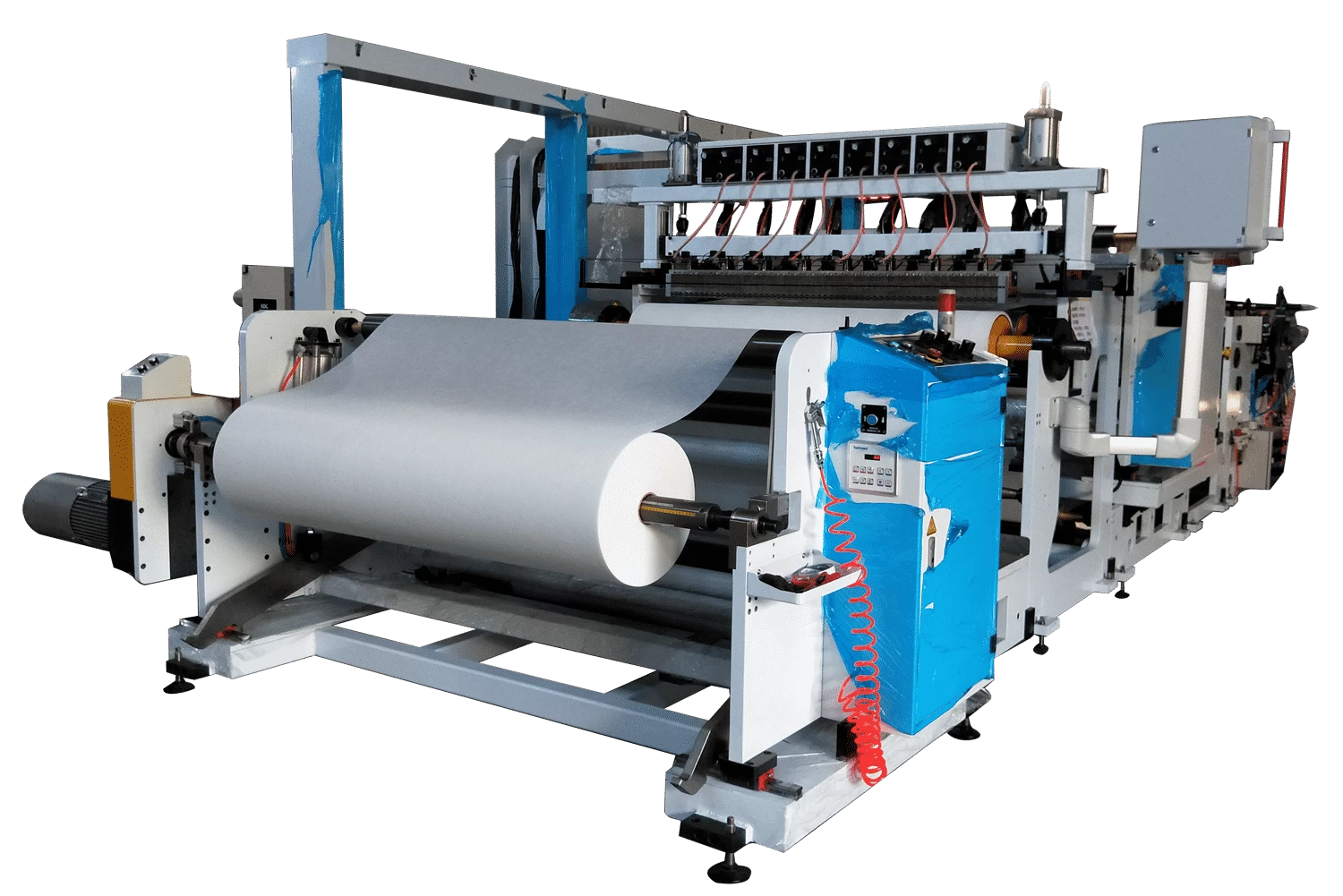

NDC NTH1600 Nonwoven Hot Melt Adhesive Laminating Machine

Applied in Filtration Materials Lamiantion

Basic parameters

Device Name	NTH 1600 Non-woven Spray coating lamination machine
Power	AC380V, 3-phase, 4-wire 70KW
Max. Web Width:	1600mm		Lamination width:	1600mm
Design Speed	80m/min		Production Rate	10m/min
Adhesive	EVA or PO		Viscosity	2000CPS
Working temp.of Spray Die	155--170 ºC(adjustable）
Production	Non-woven(Meltblown, spunlaced nonwoven)
	Filer materials

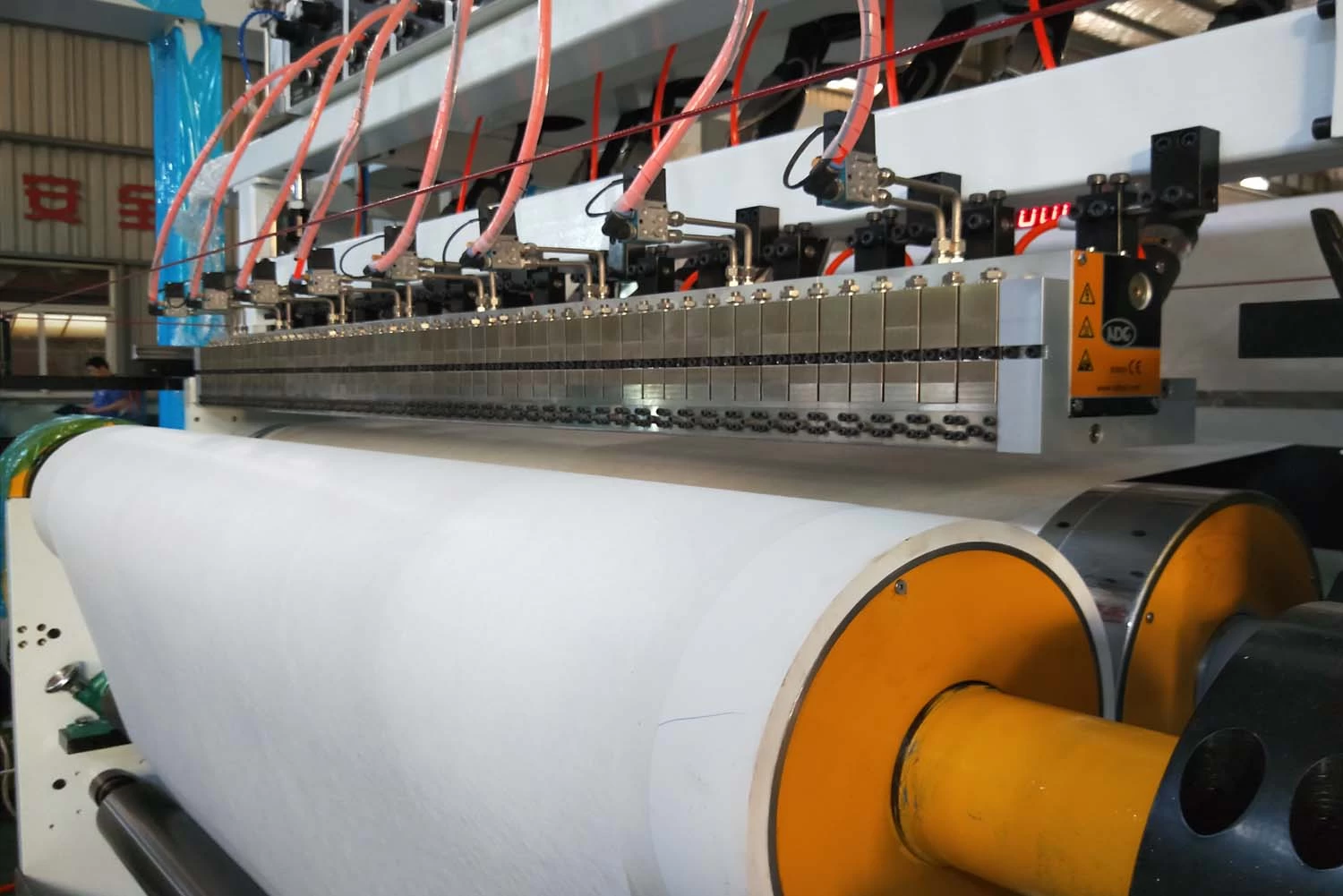

Coating Die	Spray Coating
Common Weight and Speed		1-2gsm
Operation Side		Right Side
Cable		Cable Bridge frame
Total Weight		15 T
Unit Description		This machine is constructed with unwinding and rewinding units, laminating unit, spray coating system ,driving system, Siemens PLC-control system, pneumatic system and web guider. This machine is designed scientifically and logically for the convenience of maintenance and upgrade with excellent quality.
