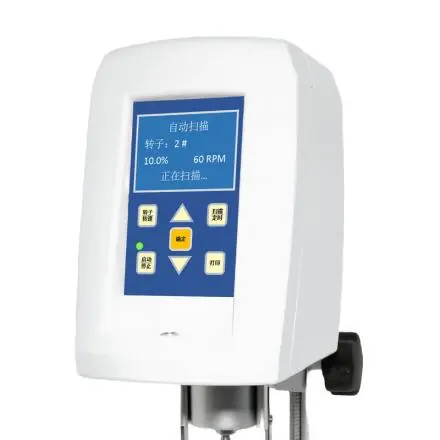

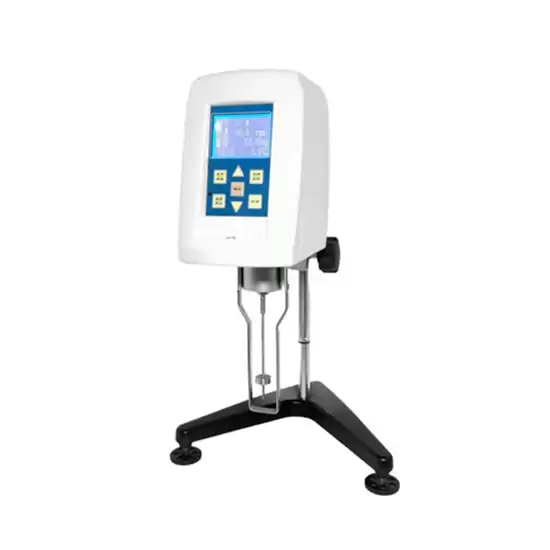

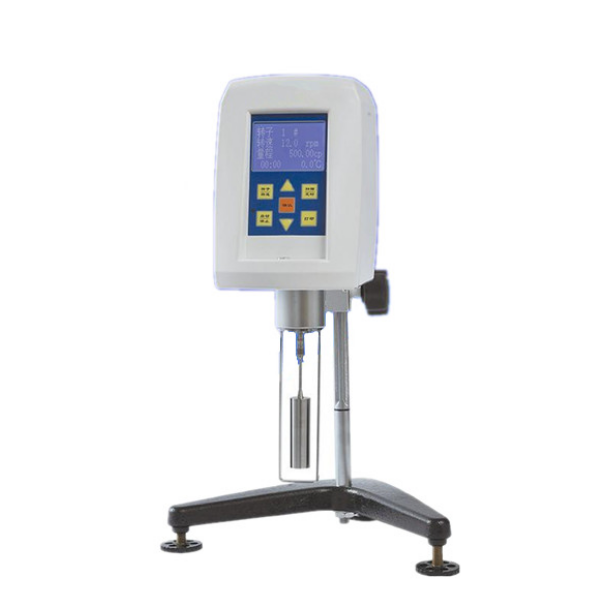

NDJ-8S Laboratory Rotary Digital Viscometer Machine with Touch Screen Function

NDJ series digital rotary viscosity operation is more convenient, more accurate value measurement, more complete functions

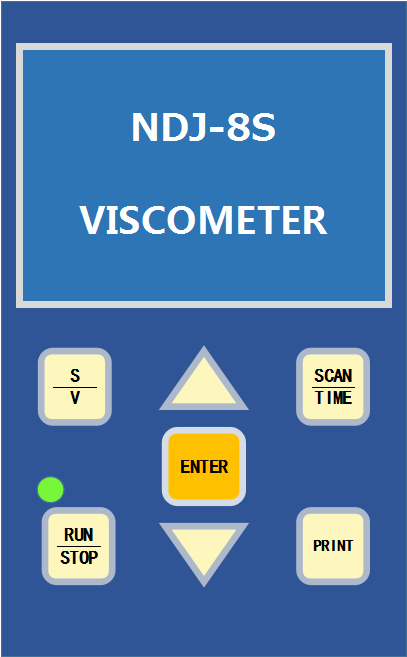

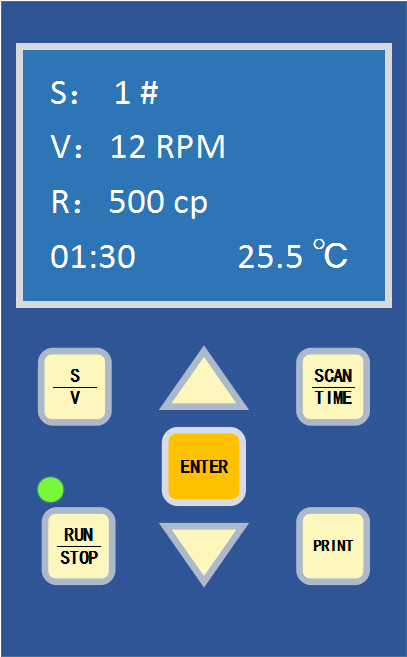

With LCD backlight display, program setting, automatic control, timing measurement, automatic scanning, error alarm and other functions. The screen shows the viscosity, temperature, timing measurement time, speed, rotor number, percent ratio, torque range of measurement to the viscosity and other information. The full range viscometer and the block linearity all through the computer interface with the standard silicone oil measurement correction, to ensure that the instrument has high sensitivity, high precision, high repetition. The measured data is accurate and reliable, with good reproducibility.

The apparent viscosity of absolute viscosity or non Newton type liquid SNB series digital viscometer can be measured. The Newton type liquid viscometer data processing software can be summarized for rheological properties of non Newton liquid.

Widely used in grease, paint, paint, textile, food, slurry, medicine, cosmetics and other adhesives, fluid, semi fluid production industry and scientific research units.

Main features

1. measurement data direct LCD screen display does not require two calculations

2., using the latest international microcomputer drive technology, import stepper motor, accurate speed, smooth and reliable

3., the use of advanced switching power supply technology, voltage and frequency range wide, power fluctuations will not affect measurement accuracy

The 4. level display device is very convenient on the front of the viscometer

5. all ranges, the display accuracy of viscosity value is accurate to two decimal places, that is, 0.01mPa.S.

6., with the function of timing measurement, it is very useful for detecting non Newtonian liquid

7. using small sample adapters, the amount of sample required for each measurement is very small, 18ml.

8., automatic scanning function, the instrument can automatically recommend the best combination of rotor and speed

9. automatically display the maximum range of viscosity that the selected combination can measure

10., with a print interface, you can directly connect to play micro printing machine, print a variety of data

11. optional data processing software, can record real-time viscosity with time, speed or rotor (shear rate), temperature changes vary, which provides a good method to understand the viscosity and rheological properties of non Newtonian liquids.

Specifications

Instrument model	NDJ-5S	NDJ-8S
display mode	liquid-crystal display
speed (r/min)	6 / 12 / 30 / 60	0.1/0.3/0.6/ 1.5/3/6/12/30/60
rotor	1#、2#、3#、4#  The 0# rotor is optional, for measuring ultra low viscosity below 15
measuring range	1～100,000	1～2,000,000
Sample size required for each measurement	250 – 400ml
Viscosity display accuracy	0.01mPa.S
measurement error	±3% (Newtonian liquid)
repetitive error	±1.5% （Newtonian liquid)
sample amount	18ml （Each measurement required）
Timing measurement function	standard configuration
temperature measurement	standard configuration
Measurement range display	Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value
Constant temperature component	Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.)
data output interface	standard configuration
Data processing software	option
working power supply	110V / 60Hz，220V / 50Hz
outline dimension	300 × 300 × 450(mm)

Optional parts:

1. ultra low viscosity adapter (0# rotor)

A set of three pieces (rotor, sample bucket,connecting frame)

Used to measure ultra-low viscosity samples below 15mPa.S

The amount of sample required for each measurement is 18-20ml

The accuracy of measurement is 0.1mPa.S

2. Temperature probe (temperature sensor)

High precision temperature measuring chip with A/D conversion

Measuring range: 0 - 100

Measurement accuracy: 0.1

3. Micro thermal printer

Can be directly connected with the viscometer

print data

Print curve

4. Viscometer special thermostatic bath

Model: DC0506N:

Temperature range: -5 to 100

Temperature control precision: 0.1

Model: CH1006N:

Temperature control range: room temperature

plus 10 degrees Celsius to 100 degrees C

Temperature control precision: 0.1

The circular opening can be placed 200ml beaker, direct measurement of viscosity. The outer loop has the function of constant temperature cup can also be controlled constant temperature liquid lead to external, to meet different test requirements.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
