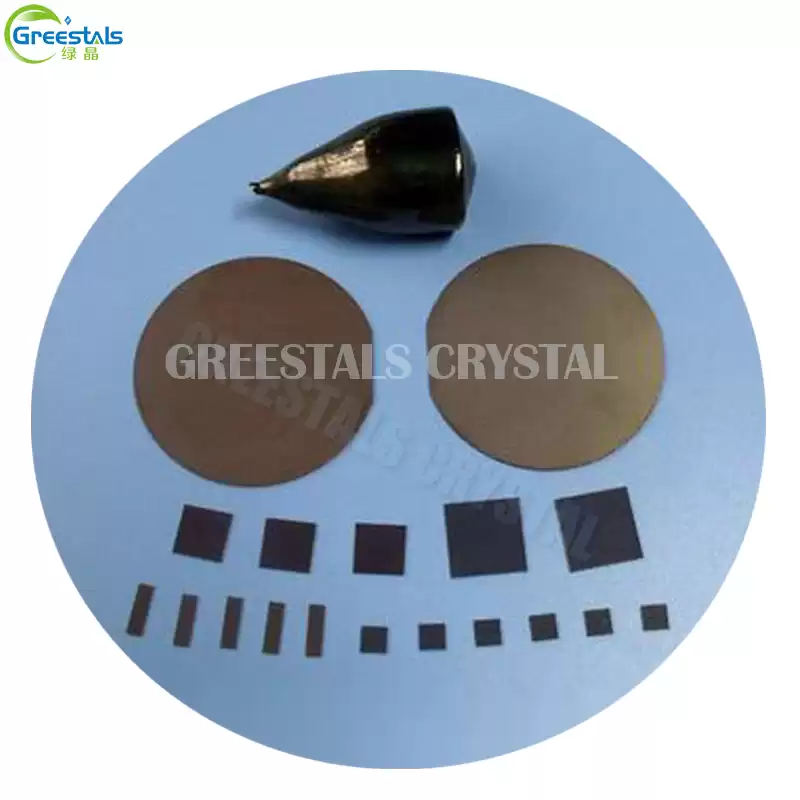

Neodymium gallinate NdGaO3 single crystal substrate

Major capability parameter
Growth Method	orthogonal
Unit cell constant	a=5.43、b=5.50、c=7.71
Melt point（℃）	1600℃
Density	7.57g/cm3
Dielectric constants	25
Growth method	GZ
Size	10x3，10x5，10x10，15x15，，20x15，20x20，
Size	Ф15,Ф20，Ф1″，Ф2″,Ф2.6″
Thickness	0.5mm，1.0mm
Polishing	Single or double
Crystal orientation	＜100＞＜110＞＜111＞
redirection precision	±0.5°
Redirection the edge:	2°（special in 1°）
Angle of crystalline	Special size and orientation are available upon request
Ra:	≤5Å（5µm×5µm）
Pack	100 clean bag，1000 exactly clean bag
