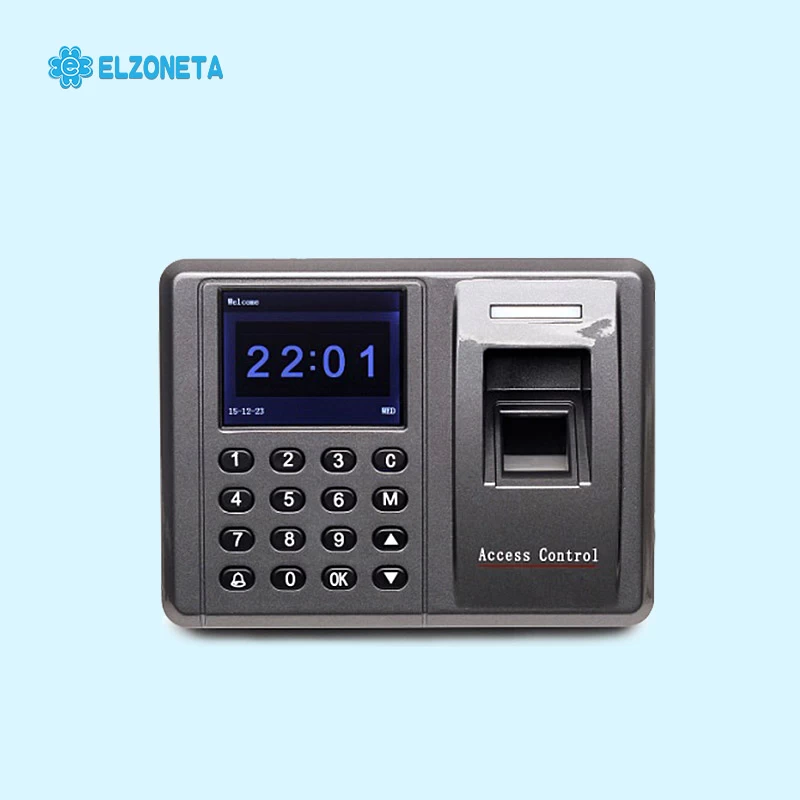

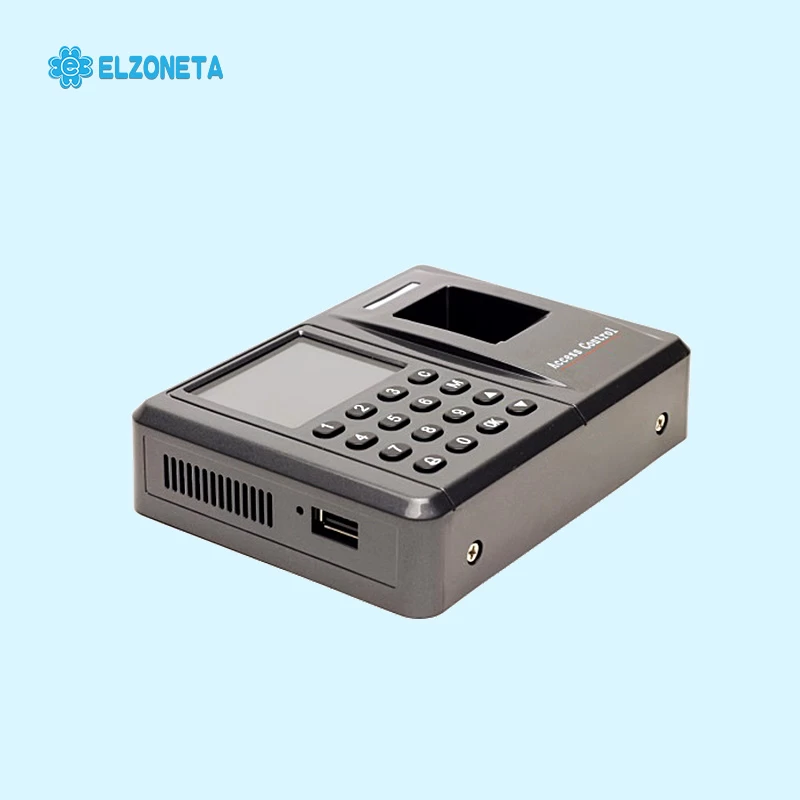

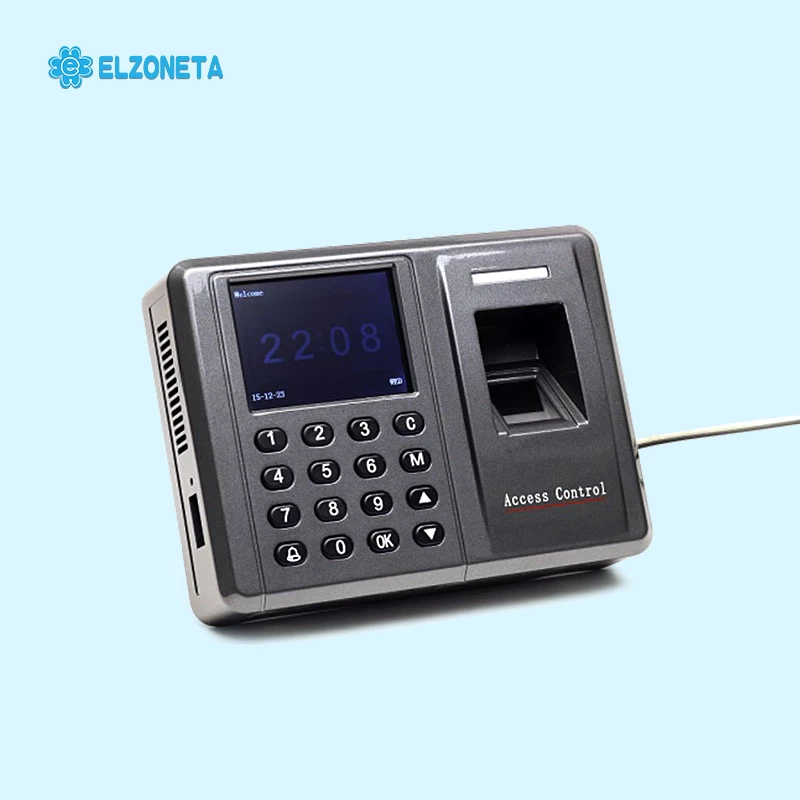

EC-ACS-TA01 Fingerprint Time Attendance System
Features:
• Network access control / Time attendance
• 3000 users,supports Fingerprint ,Card,PIN, Fingerprint & Card,Fingerprint & PIN
• 100,000 event buffers
• Wiegand 26bits output
• Connect to PC via TCP/IP or USB
Specifications:
|
User Capacity
|
3000
|
|
Operation Voltage
|
+12V
|
|
Access Mode
|
Fingerprint ,Card,PIN, Fingerprint & Card,Fingerprint
& PIN
|
|
Fingerprint Reader
Resolution
Identification time
FAR
FRR
|
Optical Fingerprint Module
500DPI
<1S
<0.0001%
<0.01%
|
|
Proximity Card Reader
Radio Technology
Read Range
|
Industry Standard 26 bits
125KHz Industry Proximity EM Card
2~7 cm
|
|
PIN Reader
|
1~8 digits PIN
|
|
Wiring Connections
|
Relay Output, Exit Button, DOTL, Alarm, Wiegand output, Door
Bell
|
|
Communication
|
USB TCP/IP
USB for downloading/uploading
|
|
Relay
Adjustable Relay Output Time
Lock Output Load
Alarm Output Load
|
One (NO, NC, Common)
1-99 Seconds (5 seconds default)
2 Amp Maximum
5 Amp Maximum
|
|
Wiegand Interface
|
Wiegand 26 bits Output
|
|
Environment
Operating Temperature
Operating Humidity
|
Indoor
-20oC~+50oC
20%RH-90%RH
|
|
Physical
Dimensions
Unit Weight
Shipping Weight
|
ABS Enclosure
14L x 10.5W x 3.5H (cm)
300g
500g
|
More Information:

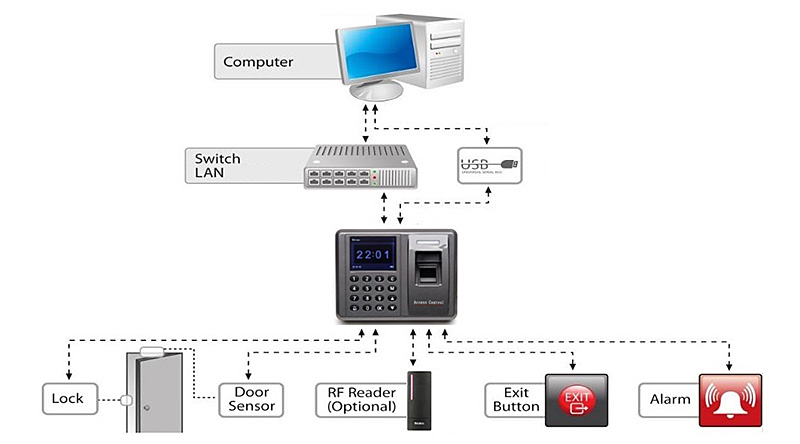

How to connect
