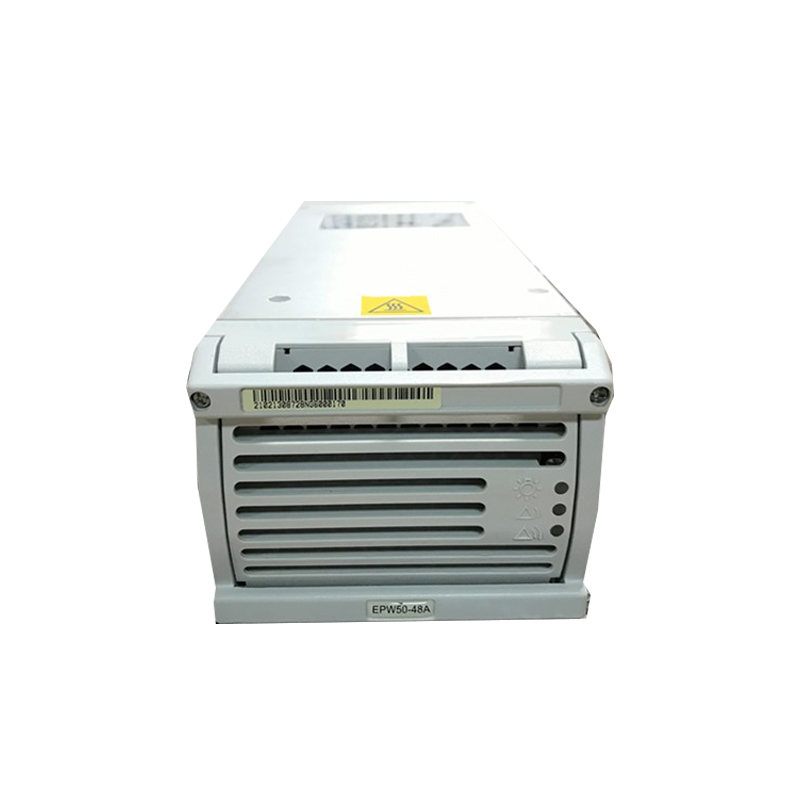

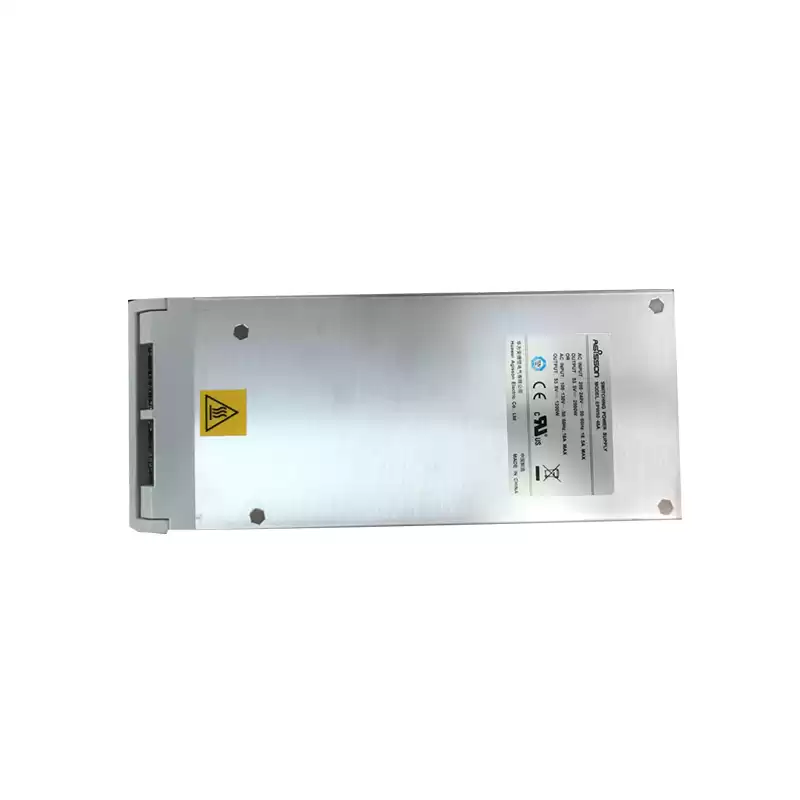

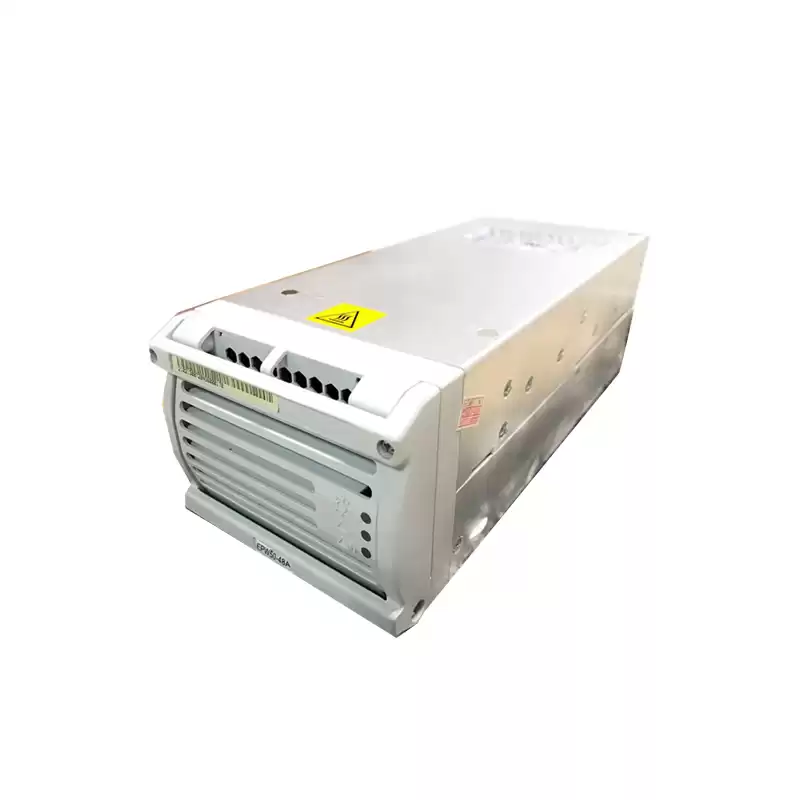

Network Power Huawei Rectifier Module EPW50-48A
Product Description
Features of Agisson EPW50-48A:
EPW50-48A power module (module for short) uses soft-switching and input / output soft start-up technology. Its output can be regulated through monitoring. Multiple modules can be paralleled to share the load.
Dimensions (H × W × D): 88.2mm × 102.8mm (105.5mm with enclosure) × 242.3mm (excluding socket dimension)
Weight: < 2.8kg
Mechanical stress: ETS300019-2
Safety: meet UL 60950-1,C22.2 NO. 60950-1, EN 60950-1
48V EPW50-48A input parameters:
Rated input: 200 ~ 240Vac / 115 ~ 130Vac
Input current: Max. 18.5A for single module
Rated frequency: 50 / 60Hz
Power factor: no less than 99% (rated operation condition)
Rectifier module EPW50-48A Output information:
Rated output: 53.5Vdc (output range: 43.2 ~ 57.6Vdc)
Output power: 2900W(176Vdc ~ 300Vdc)
1200W(90Vdc ~ 175Vdc)
Efficiency: ≥ 92% (220Vac input and 53.5V/2900W output)
≥ 86% (110Vac input and 53.5V/1200W output)
Line regulation: ≤ ± 1%; Load regulation: ≤ ± 1%
Mains regulation: ≤ ± 0.1%
Psophemetic noise: ≤ 2mV
Broadband noise: ≤ 100mV (3.4kHz ~ 150kHz)
≤ 30mV (150kHz ~ 30MHz)
Output ripple (p-p): ≤ 200mV (0 ~ 20MHz bandwidth with load no less than 1A)
Discrete noise: ≤ 5mV (3.4kHz ~ 150kHz)
≤ 3mV (150kHz ~ 200kHz)
≤ 2mV (200kHz ~ 500kHz)
≤ 1mV (500kHz ~ 30MHz)
HUAWEI EPW50-48A Working Condition:
Operation temperature: -33 to 65°C;
Storage temperature: -40 to 70°C
Humidity: 5 ~ 95% (non-condensing)
Air pressure: 86 ~ 106 kPa
Altitude: < 4000m; Cooling: fan cooling
Size and weight for Vapel EPW50-48A :
Dimensions (H × W × D): 88.2mm × 102.8mm (105.5mm with enclosure) × 242.3mm (excluding socket dimension)
Weight: < 2.8kg
Product Details
Our Advantages
We have Huawei EPW50-48A for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei EPW50-48A, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei EPW50-48A represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
