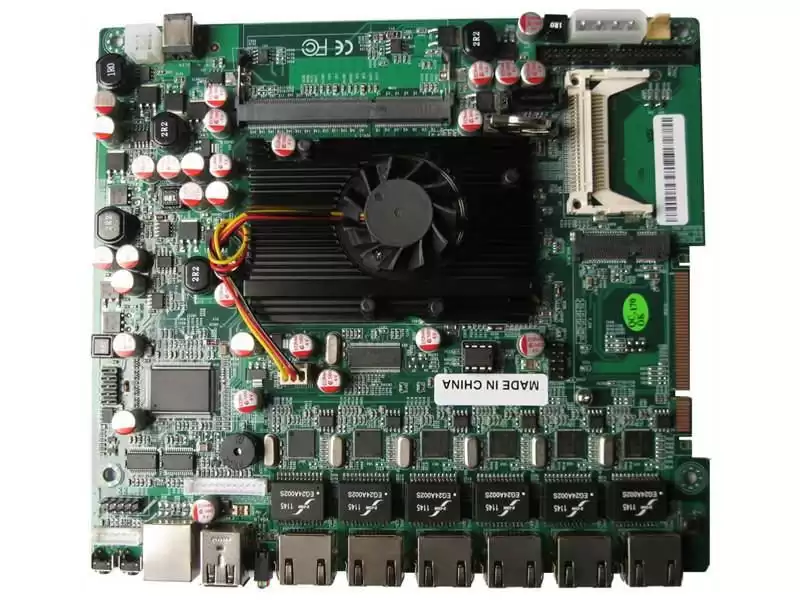

NSP-D525V6N Network Security Platform motherboard, Soldered on board Intel®D525 CPU，6LAN Intel GbE
Product Introduction
Multi-network port motherboards allow multiple networks to be connected simultaneously, providing redundancy and fault tolerance. If one network port fails or is attacked, the system can switch to another port, ensuring the continuity and reliability of network connections.
Product Features
■ Soldered Intel®D525 CPU
■ 6LAN Intel 82583 or I211 GbE
■ VGA pin display interface
■ 2COM（1×RJ45), 6USB2.0
■ 1×MSATA
■ Ultra Thin
Specification
|
CPU/GPU
|
SolderedIntel®D525CPU
|
|
Memory
|
1×DDR3 SO-DIMM laptop memory，up to 4GB SDRAM
|
|
Storage
|
1×SATA，1×M-SATA，The CF card holder pictured has been removed
|
|
Audio
|
None
|
|
NIC
|
6×LAN Intel 82583V or i211 GbE
|
|
Graphic card
|
CPU integrated graphic
|
|
Display
|
1×VGA
|
|
USB2.0
|
6
|
|
USB3.0
|
None
|
|
GPIO
|
none
|
|
COM
|
2×COM RS232（1×RJ45，1×COM by pin）
|
|
BackplaneI / O
|

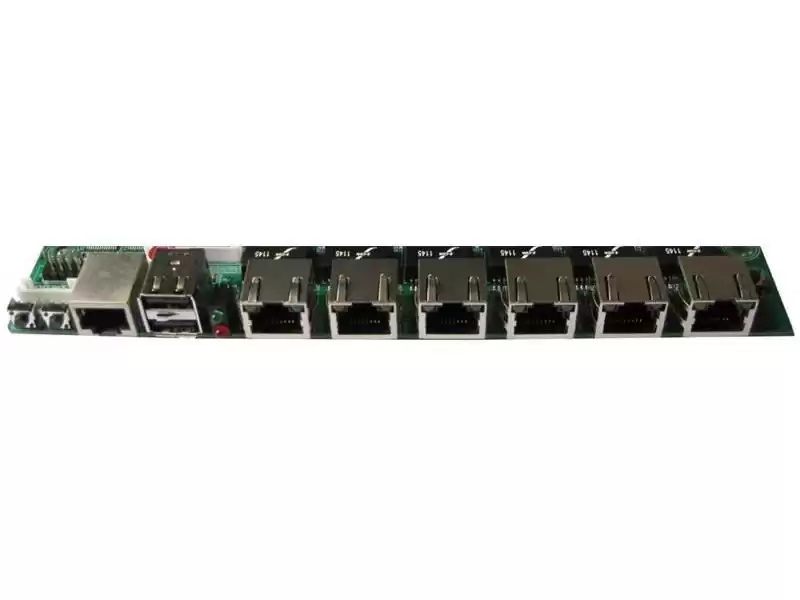

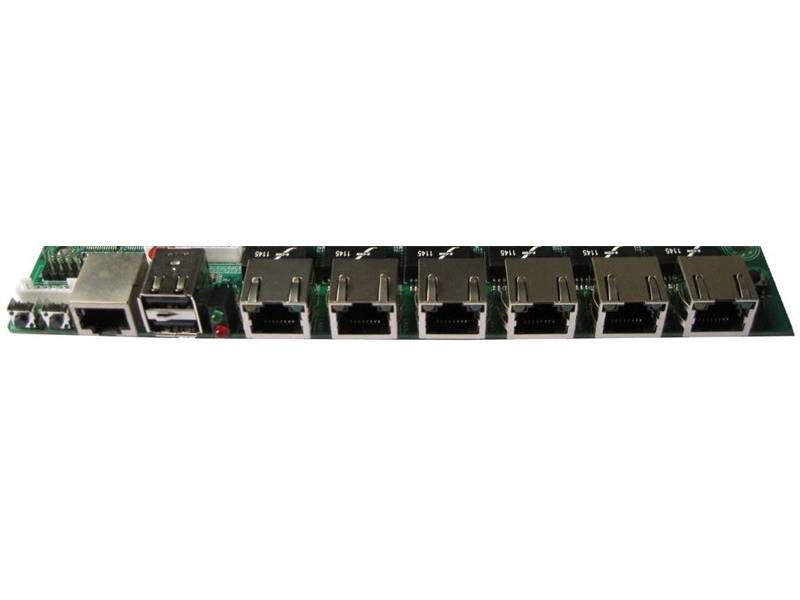

Power、Reset switch；RJ45 COM；2USB2.0；PWR、HDD indicator；6RJ45LAN
|
|
BoardI / O
|
4USB, 1 COM , CLR_CMOS , CPU fan power , System fan power ,GPIO
Front panel , 4P DC in
|
|
Expansion
|
None (the gold finger in the picture has been removed)
|
|
System
|
Support Windows（XP，WIN 7，WIN 10 ...），Linux
|
Mechanical & Environmental
|
Power supply
|
DC 12V
|
Heat dissipation
|
Heat sink
|
Size(L×W)
|
200mm×180mm
|
|
Working temperature
|
-5~55℃
|
Storage temperature
|
-40~75℃
|
Environmental humidity
|
0~90%air humidity,non-condensing
|
|
Packing List
|
NSP-D525V6N motherboard×1，SATA data cable×1，SATA power cable×1
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
