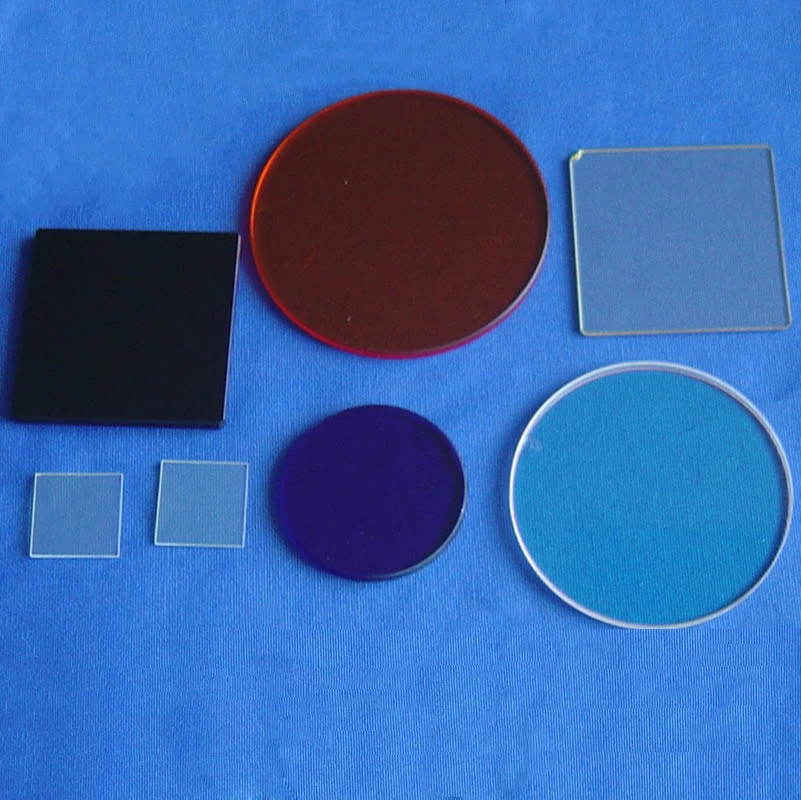

Neutral Colored Glass Filters
Neutral Colored Glass Filters are named based on the average transmissivity characteristics in 400nm to 700nm wavelength with 2mm thick. Sample is 70%, then it's named as ZAB70. And there are ten types of glasses in this part. But three types of them(ZAB65,ZAB30,ZAB5)are tested in 440nm-660nm wavelength.
Their main application are as below:
1. Environmental displays
2. Optical metrological instruments
3. Laser protective windows
4. Machine vision devices
5. Optical detection instruments
6. Optical test instruments
7. Electro-optic displays
8. Medical optical
9. Infrared thermograph
WTS
|
SCHOTT
|
HOYA
|
|
ZAB00
|
NG1
|
ND-0
|
|
ZAB02
|
NG9
|
ND-03
|
|
ZAB2
|
NG3
|
|
|
ZAB5
|
|
|
|
ZAB10
|
NG4
|
ND-13
|
|
ZAB25
|
NG5
|
ND-25
|
|
ZAB30
|
|
|
|
ZAB50
|
NG11
|
ND-50
|
|
ZAB65
|
|
|
|
ZAB70
|
NG11
|
ND-70
|
|
Specifications:
|
|
|
Material:
|
Color glass
|
|
Dimension Tolerance:
|
+0.0, -0.2mm
|
|
Thickness Tolerance:
|
+/-0.2mm
|
|
Surface quality:
|
80/50
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
1 λ per 25mm@633nm
|
|
Parallelism:
|
<3'
|
|
Bevel:
|
<0.25mmx45°
|
|
Coating:
|
Upon requirement
|
|
Typical Sizes:
|
|
|
Size(mm)
|
Size(mm)
|
|
Φ5.0x1.0
|
Φ20.0x3.0
|
|
Φ10.0x2.0
|
Φ25.4x3.0
|
|
Φ12.7x2.0
|
Φ50.8x3.0
|
|
Φ15.0x3.0
|
Φ76.2x5.0
|
