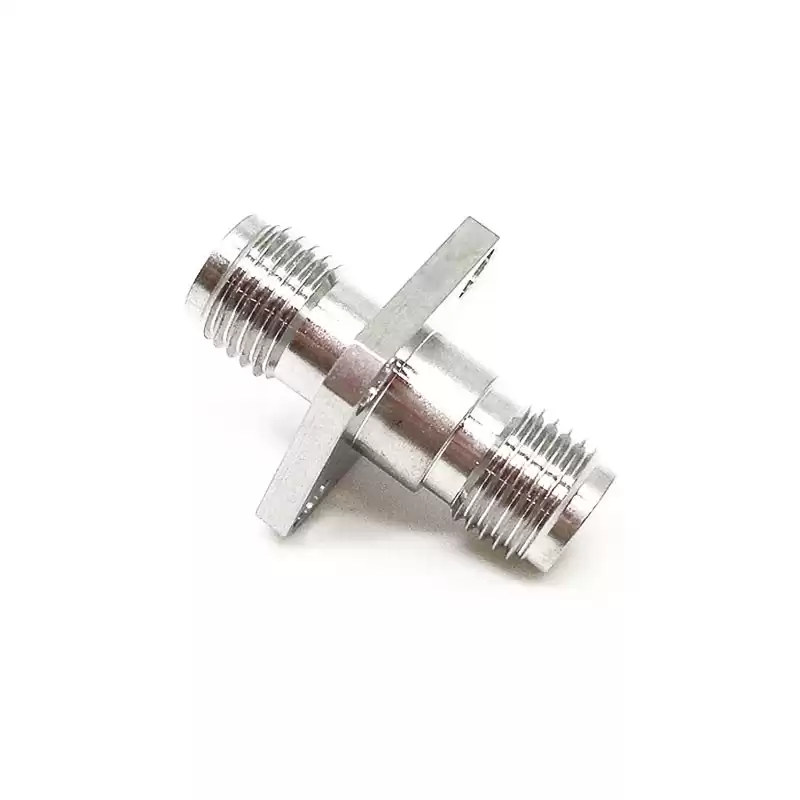

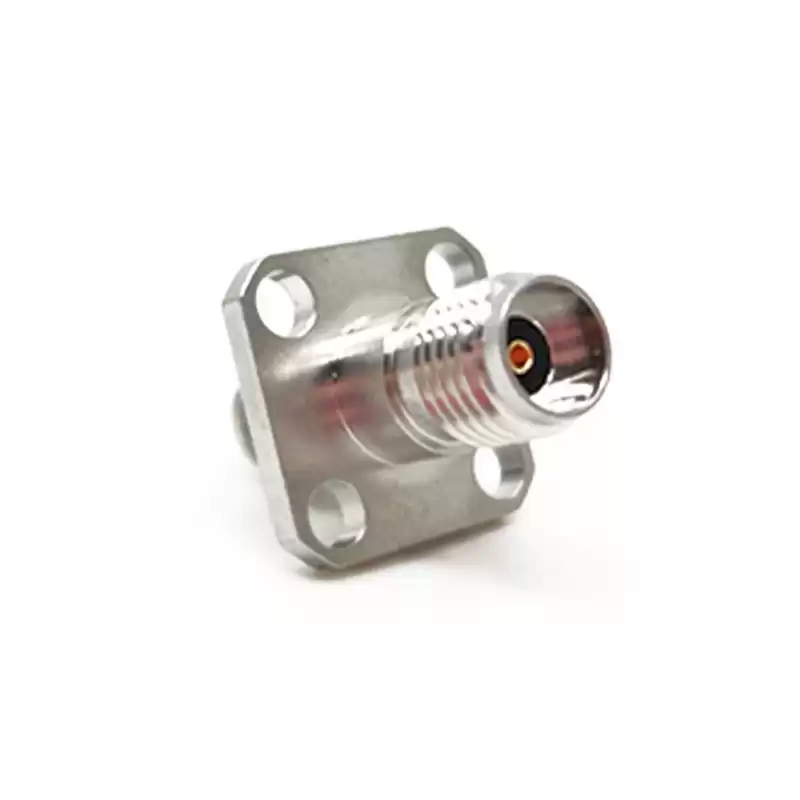

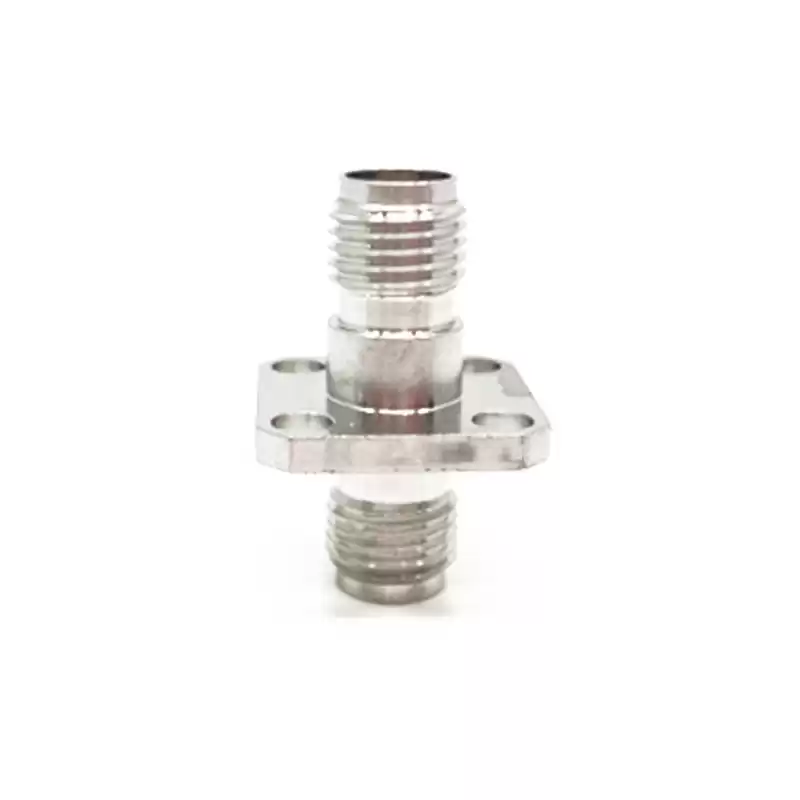

New 2.92mm Female to 2.92mm Female 4 Hole Flange Mount RF Coaxial Connector Adapter
2.92mm adapters Features：
- Includes bulkhead, 4 hole panel or mountless configurations;
- Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors;
- Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations;
- OEM & ODM available for special design with competitive Factory price;
- 40GHz 3.5mm adapter maximum frequency is provided;
- Can be Customized for unique material or performance requirement.
New 2.92mm Female to 2.92mm Female 4 Hole Flange Mount RF Coaxial Connector Adapter
The 2.92mm Adapter has 2.92mm to 2.92mm standard polarity adapter gender. The 2.92mm to 2.92mm adapters has female to female, female to male, male to female or male to male gender; it has 50ohm impedance standard polarity, and has straight or right angle versions. The 2.92mm adapter was designed with highly rugged physical interfaces in mind that would mate with 3.5mm and SMA dimensions. The outer contact ID is 2.92 mm, and OD is 4.55 mm. This 2.92mm female to 2.92mm female adapter has a maximum frequency of 40GHz, and is a right angle RF adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series |
2.92mm |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
2.92mm |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
40 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Right Angle |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Connector Body | Stainless steel 303 |
| Body Finish | Passivated |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator | PTFE |
Applications
- 5G Wireless Communication
- Test sets
- High-frequncy products
- Instrumentation cables
