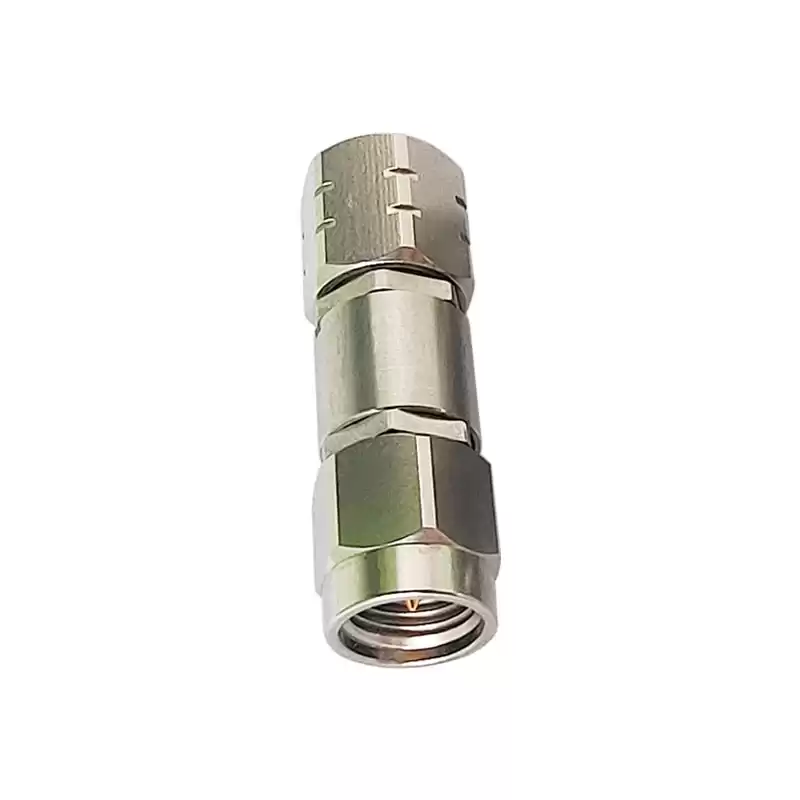

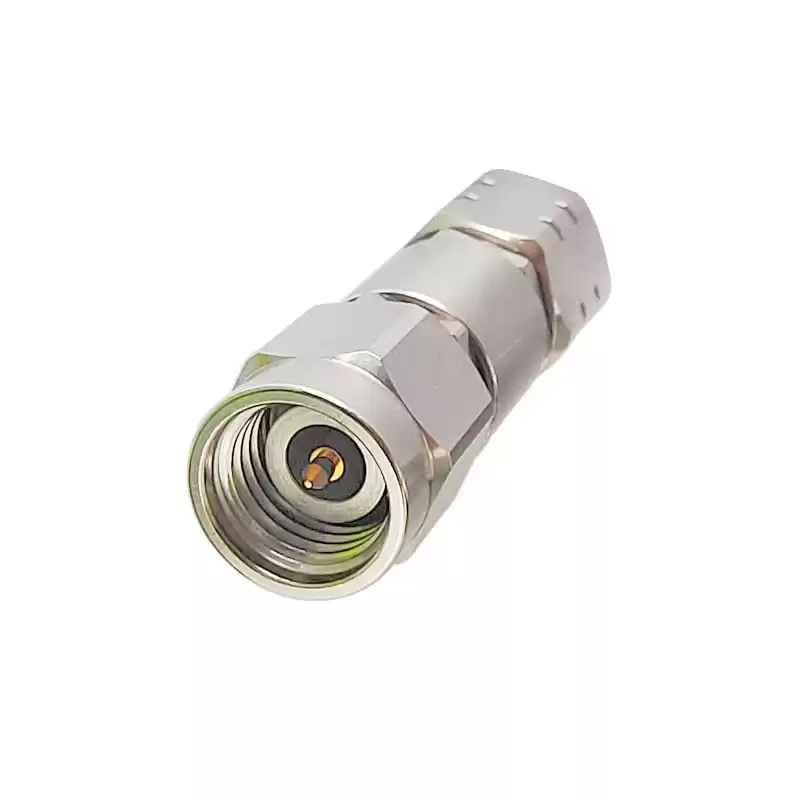

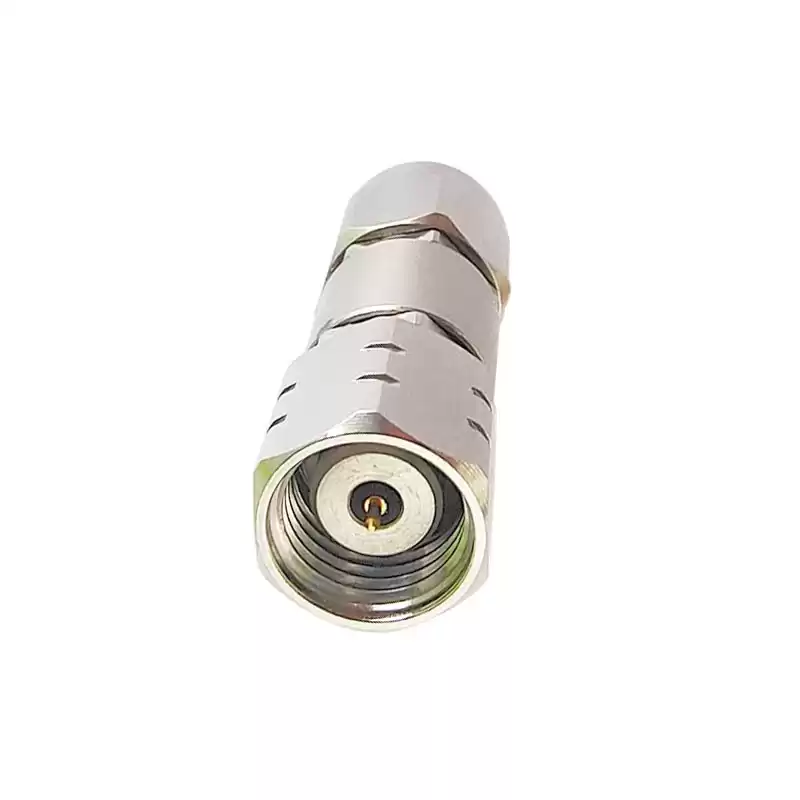

New 2.92mm Male to 1.85mm Male RF Coaxial Connector Adapter
The 2.92mm Adapter has 2.92mm to 1.85mm standard polarity adapter gender. The 2.92mm to 1.85mm adapters has female to female, female to male, male to female or male to male gender; it has 50ohm impedance standard polarity, and has straight or right angle versions. The 2.92mm adapter was designed with highly rugged physical interfaces in mind that would mate with 3.5mm and SMA dimensions. The outer contact ID is 2.92 mm, and OD is 4.55 mm. This 2.92mm male to 1.85mm male adapter has a maximum frequency of 40GHz, and is a straight RF adapter.
Specifications
| ELECTRICAL DATA |
|
Adapter Side 1 Series
|
2.92mm |
Adapter Side 1 Style
|
Male |
Adapter Side 2 Series
|
1.85mm |
Adapter Side 2 Style
|
Male |
Frequency (Max GHz)
|
40 |
Impedance (Ohms)
|
50 |
Low PIM
|
No |
Orientation
|
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
| Connector Body |
Stainless steel 303 |
| Body Finish |
Passivated |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator |
PTFE |
Applications
- 5G Wireless Communication
- Test sets
- High-frequncy products
- Instrumentation cables
