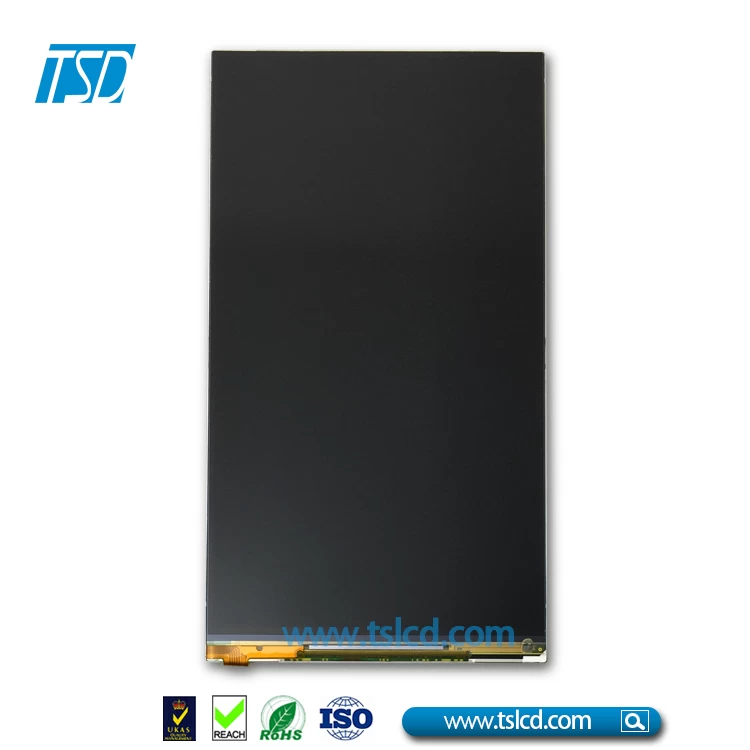

 New 8.0 inch IPS TFT LCD display 800x1280 resolution with full viewing angle


Specification
Part No. TST080WXBE-06
Outline Dimension(mm) 107.64(W)*184.10(H)*2.53(T)
Active Area(mm) 107.64(H) x 172.224(V)
Resolution(dots) 800*RGB*1280
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx1280(V)
Touch panel without, available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 8.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000
