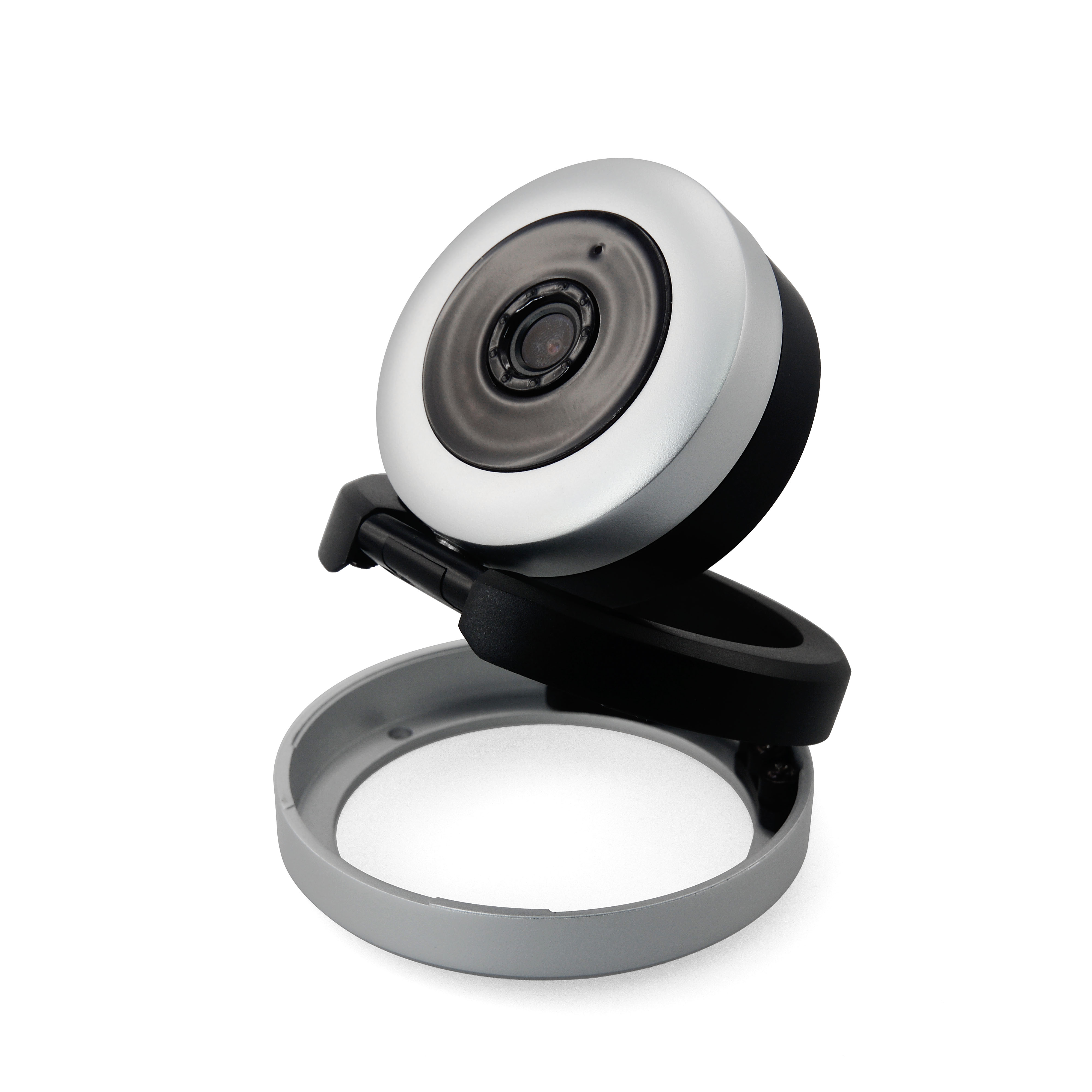

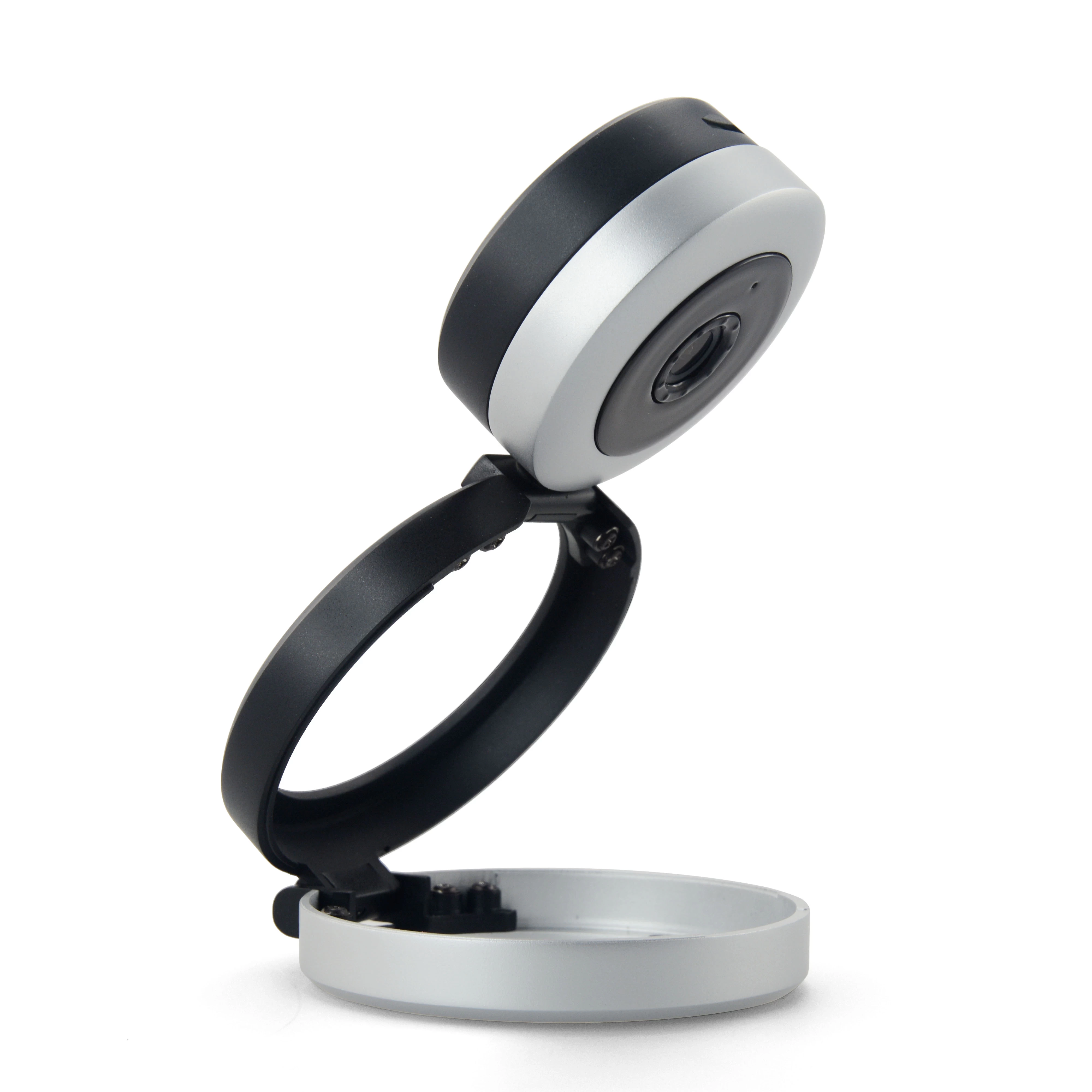

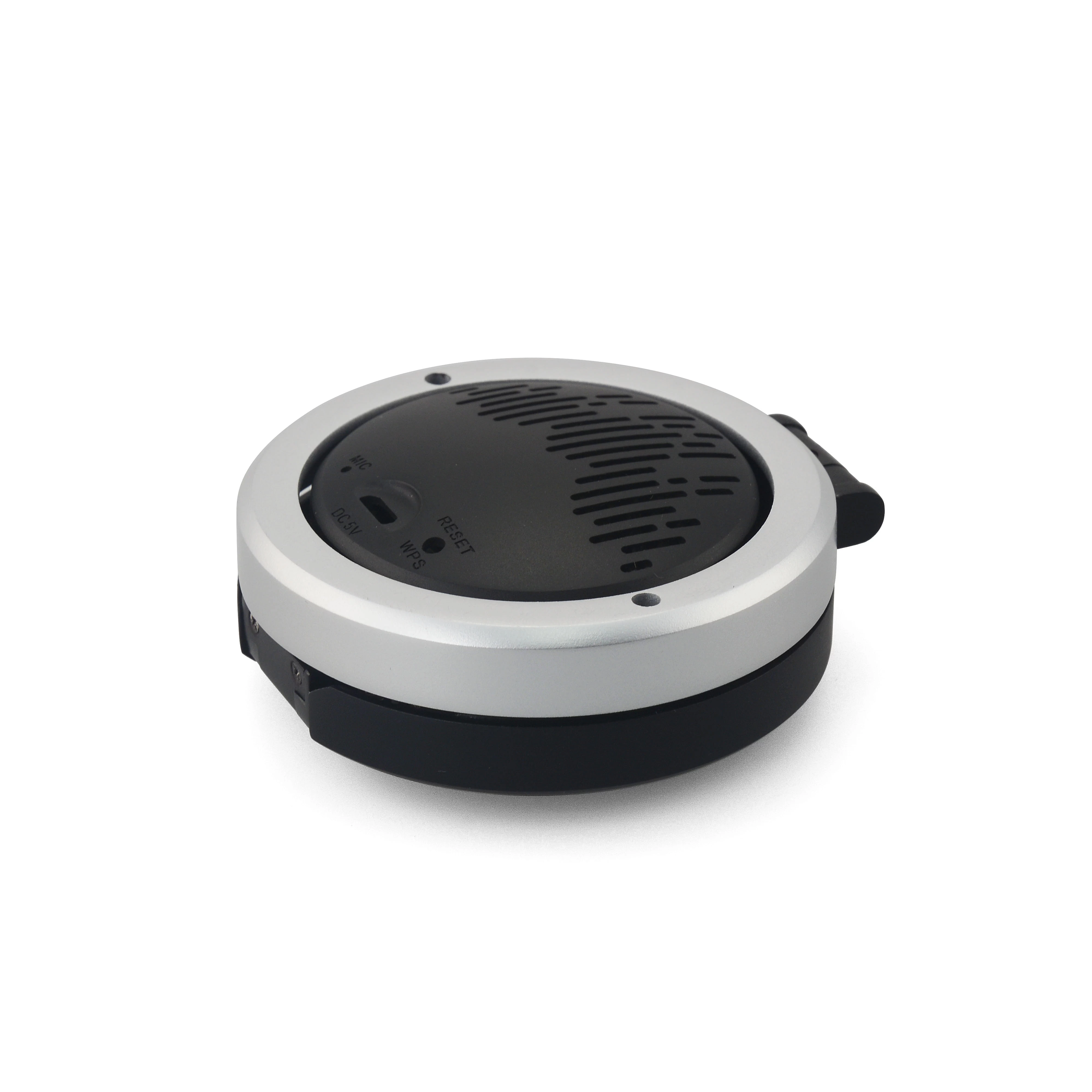

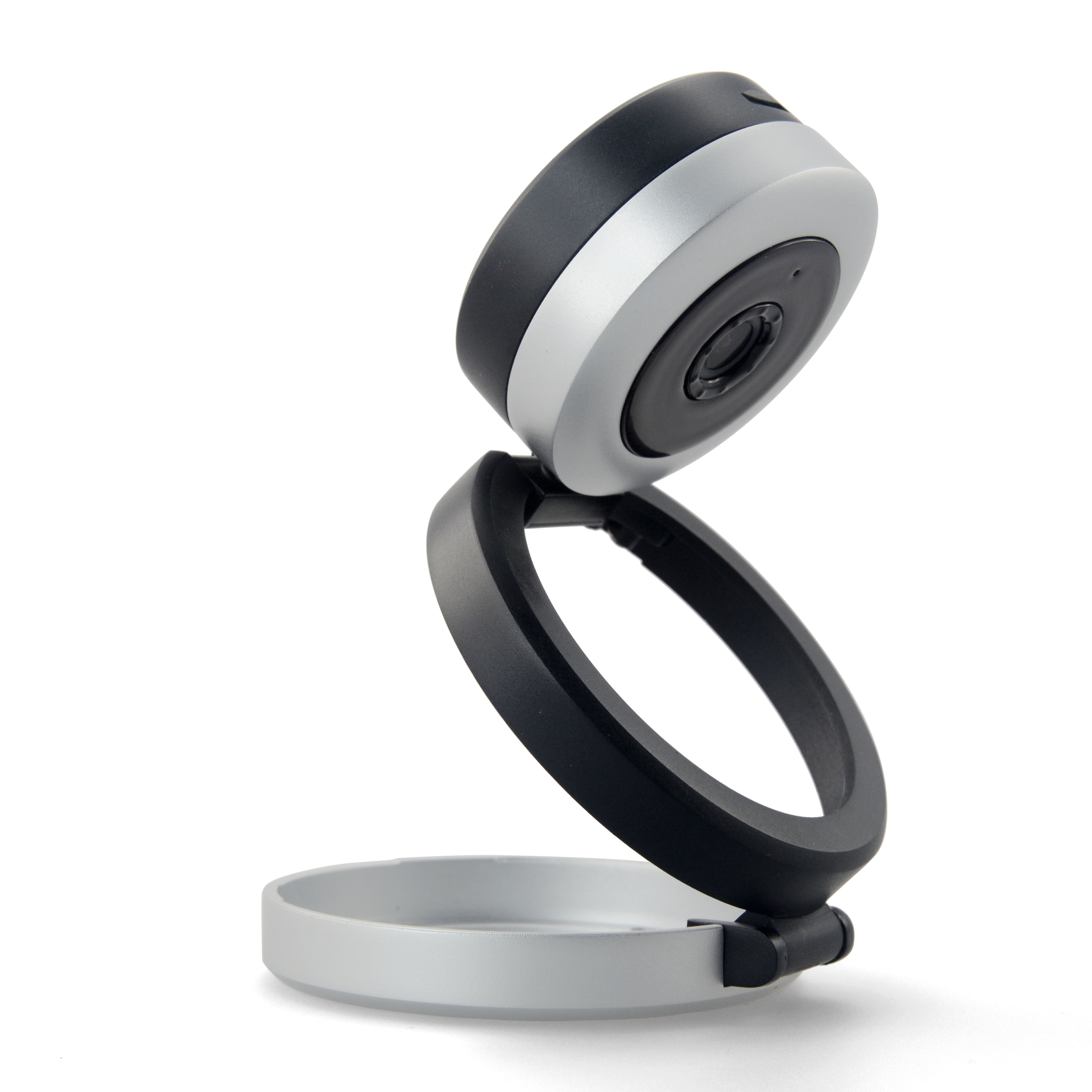

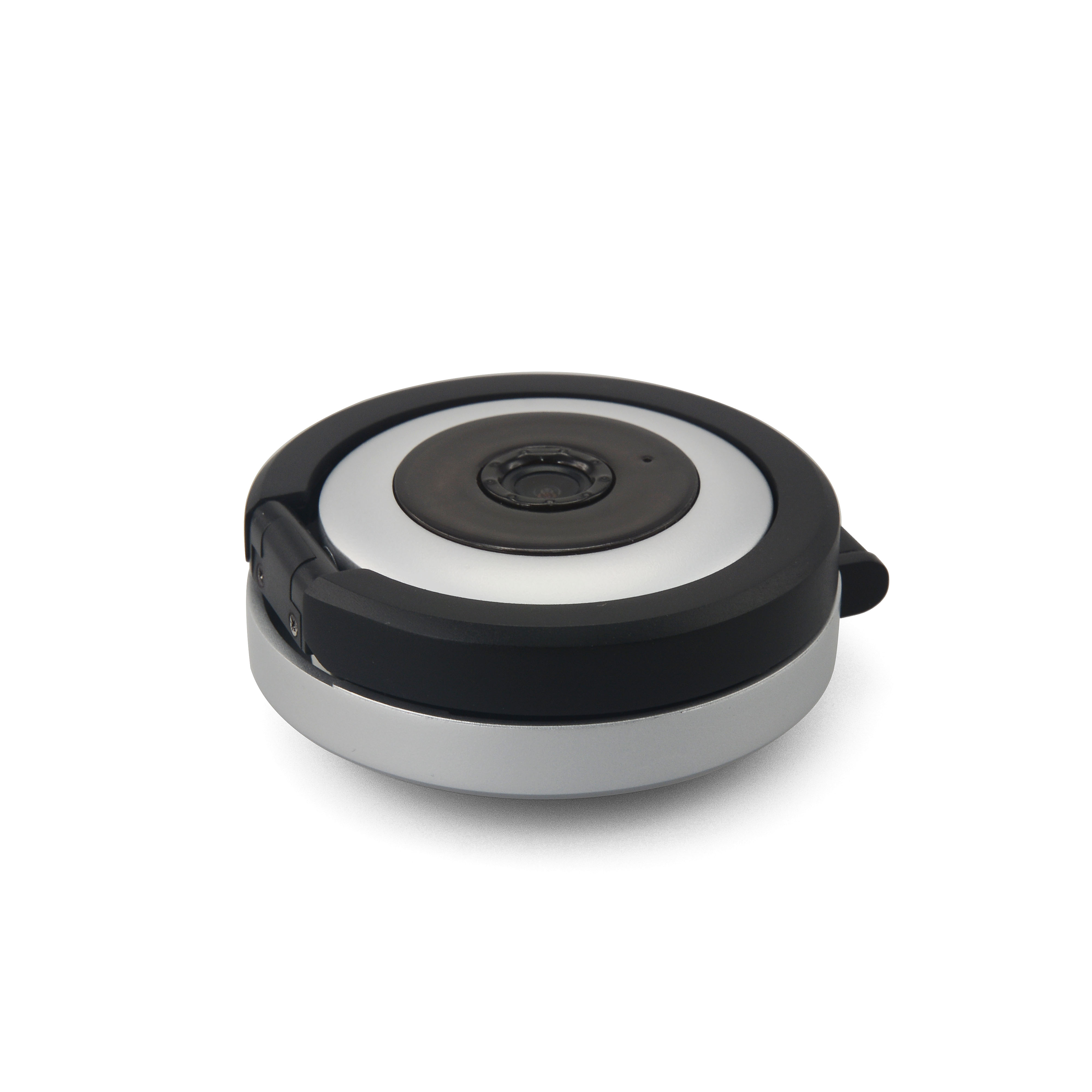

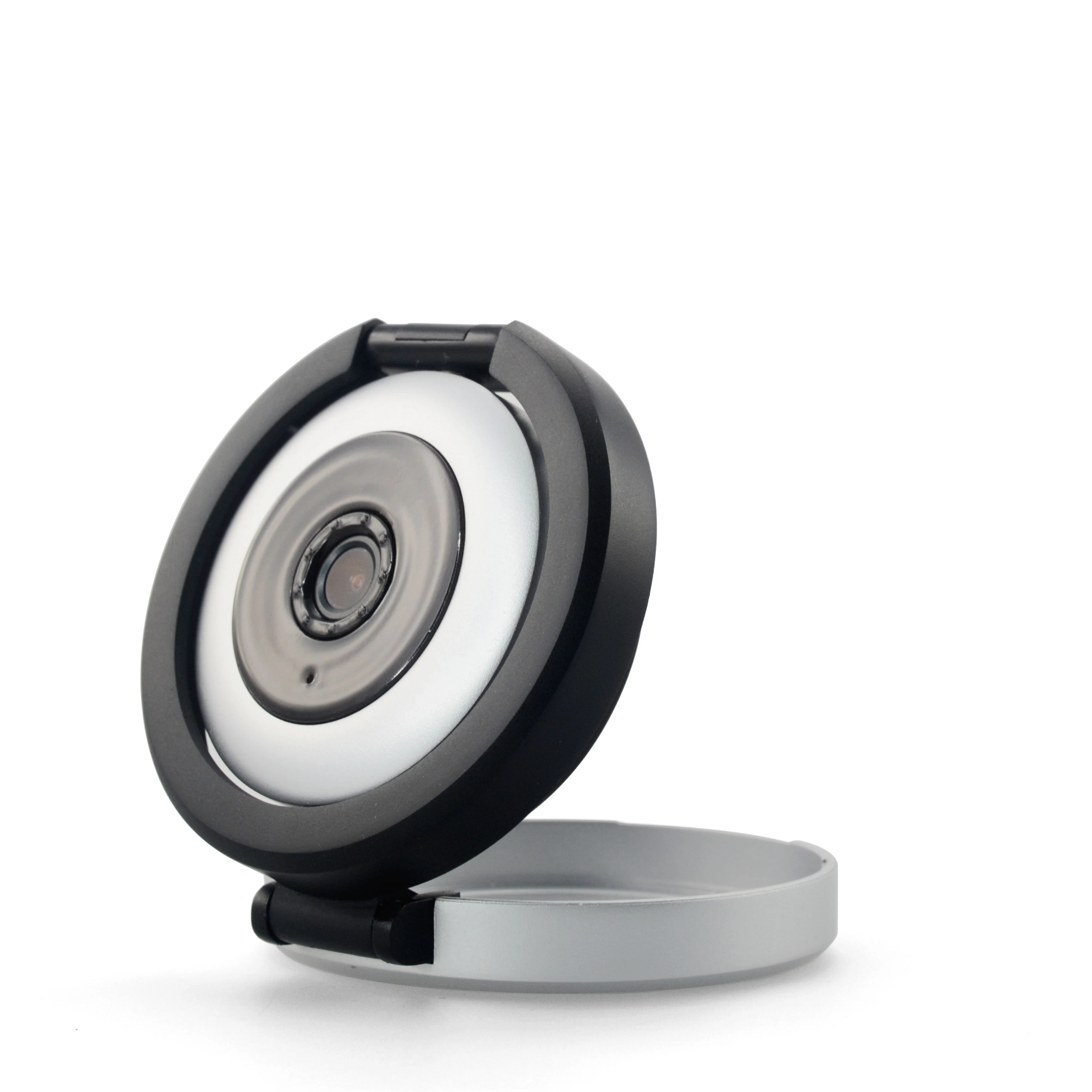

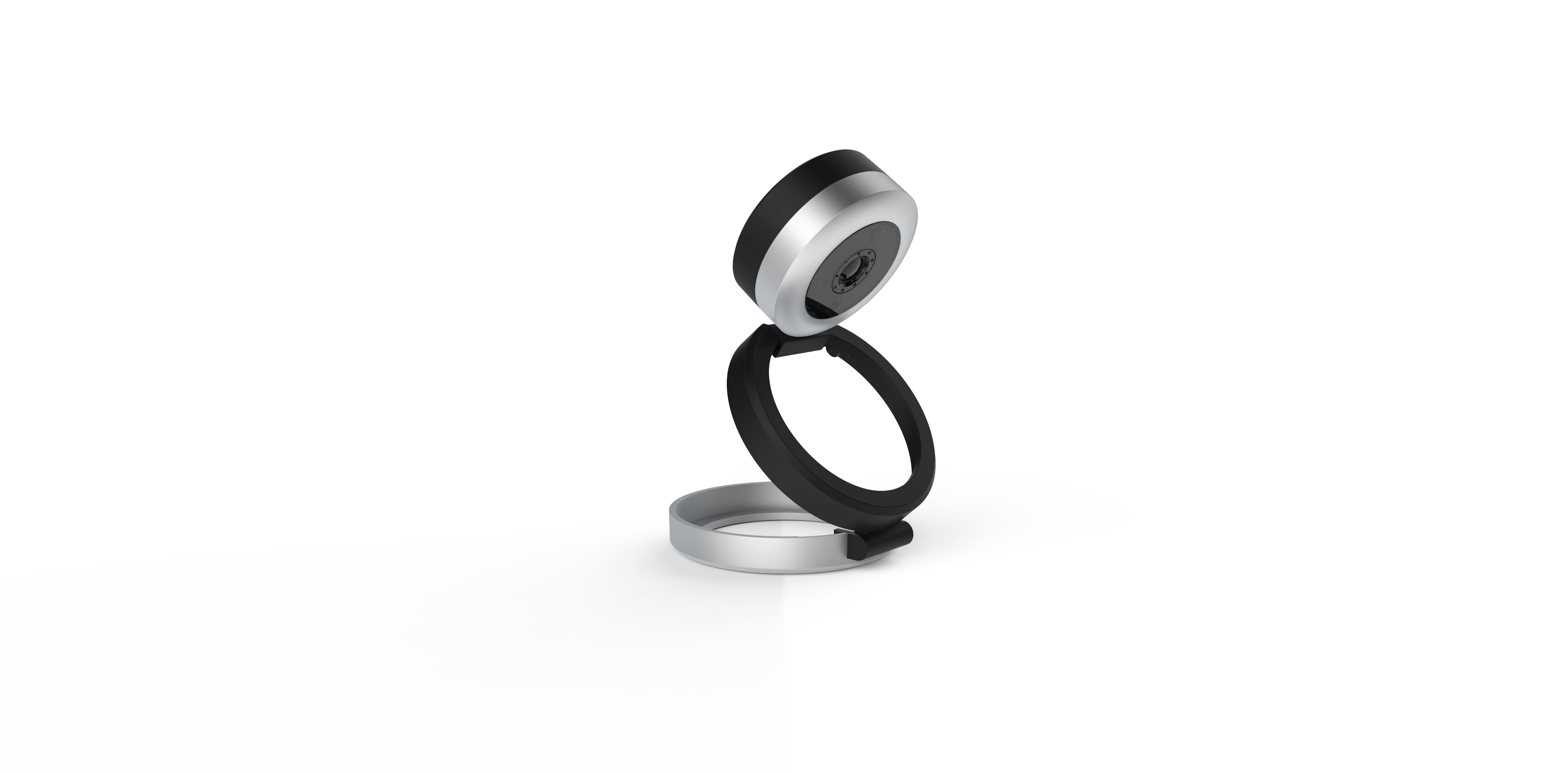

EasyN new arrival GN-115 720P P2P icloud wireless indoor oem usb camera module mobile remote free shipping
Technology:Infrared
Brand Name:EasyN
Power Consumption(W):6W
Sensor:CMOS
Alarm Action:FTP Photo,Email Photo
Ships From:SHENZHEN or HONGKONG
Connectivity:IP/Network Wireless
Supported Mobile Systems:iPhone OS,Android
Supported Operating Systems:Windows 98,Windows XP,Windows Vista,Windows 7,Windows 8
Type:IP Camera
Lens (mm):2.8mm
High Definition:720P(HD)
Style:Dome Camera
Model Number:GN-115
Network Interface:Wi-Fi/802.11/b/g
Video Compression Format:H.264/jpeg
model::GN-115.
asyN new arrival GN-115 720P P2P icloud wireless indoor oem usb camera module
mobile remote.
Min.Order Quantity: 1 Piece/Pieces oem usb camera module
Supply Ability: 85000 Piece/Pieces per Quarter
Port: Shenzhen/hongkong
Payment Terms: L/C,D/A,D/P,T/T,Paypal
EasyN new arrival A115V 720P P2P icloud wireless indoor oem usb camera module
Quick detailed infromation
Sensor: 1/4" CMOS
Unique design
Pixe: 1.0 Megapixel
Len: M12/2.8mm F1.2 , angle of view 120 (Diagonal)
3X digital zoom
IR-CU: Auto switch , without color cast
Power charging supported
Support two-way oem usb camera module oem usb camera module.
++++++++++++++++++++++++++++++++++++++++++++++++
Contact us:
1:we are wholesale company too,we have our manufactory from 1997 in china main land.
2:If you have any query, we are very glad if you can contact us.We will try our best to help you.
3:We are constantly enriching our items and trying to improve our products and service for you, we need your support to be better, welcome and find your own surprise here.
4.we accept small order 10 ~50 units .if you need made your logo ,please connect me .
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
SEE YOUR HOME;
see your shop;
see your company;
see your warehouse;
SEE YOUR FAMILY;
ON YOUR PHONE:
Is my kids playing game?
was the mailman been violence to my package?
what are my pets doing while I'm away?
Did my baby sleep last nigh ?
---------------our produces is the answer for all the question above and even more.
Smart Wifi IP Camera
You can check your home whenever and wherever
Quick Details:
Place of Origin: shenzhen, China (Mainland) or hongkong
Brand Name: EasyN Model Number: Gn-115
Type: Wireless usb camera
Style: Dome Camera
Sensor: CMOS
Technology: Pan / Tilt / Zoom
Special Features: P2P with PSD
Product name: usb camera Frame rate: 50Hz:1~20fps , 60Hz:1~25fps
LUX: 0.4 Lux/F1.2
Resulotion: (1280*720),VGA(640 x 352),QVGA(320 x 176)
IR-CUT: Auto switch , without color cast
Wire: RJ-45 10/100Mb
Protocal: Support TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP,PPPoE
Audio: Two way audio
product name: oem usb camera module
Certificate: ISO FCC CE
Packaging & Delivery
Packaging Details: Product size:76 x 33mm (L x W H)
Delivery Detail: Sample order: 1-3 days. Bulk order: 10-25 days
Indoor WIFI ip camera
Plug and play, P2P cloud computering technology
Compatible with onvif 2.1
Smart WIFI config (AP mode)
Local TF card slot support 32GB TF card max,24 hour recording free
1/4" CMOS 1.0 megapixel 720P
H.264 compression format, 3 video stream output
Support iPhone/iPad/Android/PC.
|
Model:
|
GN-115
|
|
|
System
|
WEB
|
three levels account and password (admin/guest/user), multi user managerment
|
|
P2P
|
Free, Plug and Play, no port forwarding
|
|
APP
|
Android:search EasyN P in Google play or visit p.easyn.cn / p.easyn.com for APP download
iOS:search EasyN P in Appstore for APP download.
|
PC Client
CMS
|
1,4,9,16,25,36 multi windows in center management system,recording and alarm
|
|
System and browser
|
Microsoft Win98 SE/ME/2000/XP/Vista/Win 7,
Internet Explorer 6.0/7.0/8.0/9.0/10, FireFox,Google , Safari
|
|
Main chipset
|
operation system
|
Linux
|
|
DSP
|
Hisilicon 32Bit RSIC Embedded Processor
|
|
Sensor
|
1/4" CMOS
|
|
Memory
|
64M(DSP built-in)
|
|
FLASH
|
16M
|
|
Video
|
Compression format
|
H.264
|
|
Pixel
|
1 Megapixel
|
|
Frame rate
|
50Hz:1~20fps , 60Hz:1~25fps
|
|
Resulotion
|
(1280*720),VGA(640*352),QVGA(320*176)
|
|
Image adjustment
|
The hue, brightness, contrast, saturation and sharpness are adjustable
|
|
LUX
|
0.4 Lux/F1.2
|
|
SNR
|
>48DB
|
|
Shutter
|
1/50s(1/60s) ~ 1/100,000 s
|
|
Lens
|
M12/2.8mm F1.2 , angle of view 120 (Diagonal)
3X digital zoom
|
|
WB&BLC
|
Auto
|
|
Night vision
|
IR
|
Φ5 10pcs LED lights, Wavelength 850nm ,IR angle 120
|
|
Distance
|
IR distance 10m, photoresistor sensitivity: 0~5 Lx
|
|
IR-CUT
|
Auto switch , without color cast
|
|
Audio
|
Talk
|
Two way audio
|
|
Format
|
G711/726
|
|
Speaker
|
1W, 8Ω
|
|
Microphone
|
-52dB
|
|
Structure
|
IR-CUT
|
Auto switch , without color cast
|
|
Cruise
|
IE support auto cruise and 8 preset positions.
|
|
Network
|
Wire
|
RJ-45 10/100Mb
|
|
Online limit
|
Up to 3 visitors oneline for the first stream,
Up to 3 visitors online for the second stream,
Total up to 6 visitors online.
|
|
Support IP address
|
Static IP, Dynamic IP, PPPOE
|
|
Protocal
|
Support TCP/IP/HTTP/ICMP/DHCP/FTP/SMTP/PPPoE and so on
|
|
Wireless
|
WIFI
|
WIFI IEEE 802.11B/G/N
|
|
Antenna
|
2.4GHz 2dBi antenna
|
|
Transmission rate
|
150Mbps (Max)
|
|
Mode
|
AP mode,QR code , sound smart connection
|
|
Recording
|
Type
|
TF card , support 24 hours continuous recording.
|
|
Micro SD size
|
2G/4G/8G/16G/32G
|
|
Format
|
AVI
|
|
Protocal
|
Compatible with onvif 2.1
|
|
Housing
|
Material
|
Plastic (ABS + PC)
|
|
Network light
|
Signal light: Red for power , green for network
|
|
Power
|
Power
|
DC5V 1A USB
|
|
Frequency
|
50Hz / 60Hz
|
|
Environment
|
Assembly
|
Indoor
|
|
Temperature
|
-10~50 °C
|
|
Humidity
|
10% ~ 90% RH
|
|
Packing
|
Box
|
Color box and carton,pcs/carton
|
|
Dimension
|
Product size:Φ76*33mm (L*W*H)
box size: mm (L*W*H)
Cartoon size:mm (L*W*H)
|
|
Weight
|
Net weight:kg ,
Gross weight(including box):kg
Carton Weight:kg (only for reference)
|
|
Accessories
|
Power adapter, manual, screws , Warranty card
|
|
Alarm
|
Input/output
|
none
|
|
Motion detection
|
Support 1 detection area for mobile and 4 areas for PC
|
|
Alarm notification
|
Push notification for iPhone/Android APP
Upload pictures to only one email address, three pictures to the max.
Upload snapshot and alarm records to TF card (when insert Micro TF card)and FTP server
|
|
Certificate
|
Certificate
|
ISO FCC CE
|
FAQ
Q: How To Set Motion Detection Alarm?
A: Click the Option button enter the setting interface,Find the Alarm time setting,then click.generally speaking the default setting like follows unless you need to modify the alarm time.
Then click the Motion Detection.choose the window 1,tick it will pop up the green area ,you can choose the size of the area.
Q: When I test talk, there is a loud noise, is there anything need to notice?
A: Do not put the camera too near to the microphone which you using the talkfeature, or it will cause noise;
Do not enable earphone icon and microphone icon at the same time.
Q: Why my camera cannot connect wireless?
A: Normally, camera cannot connect WiFi mainly due to wrong settings. Please check the following points:
1) Check the antenna of the camera fixed well or not;
2) When you click scan button, can the camera find WiFi signal around? (should find)
3) When you set SSID for camera, please set it the same as SSID of your router;
4) Wireless key should be the same with router'swireless key;
5) Whether disable MAC address filter or not; (should disable, if you enable MAC address filter, please add the camera's wireless MAC address in the allow list)
6) Whether camera is too far from router? (In normal home environment, to keep the distance not beyond 10m isbetter)
Firstly,please check when you click scan button, camera can detect the WIFI signal ornot. Normally, it need scan two or more than two times. If it can find, you can click the SSID of your router in the wireless list, then SSID, encryption will be filled in the following boxes automatically. It only need to enter thewireless key.
Secondly, if the camera cannot scan router's WIFI signal, please fill in SSID, encryption and wireless key manually to have atry.
Lastly, if all the wireless settings have no problem,but the camera still cannot connect WIFI. Please try other encryptions, evenwithout encryption to test; Put the camera near your router to test.
