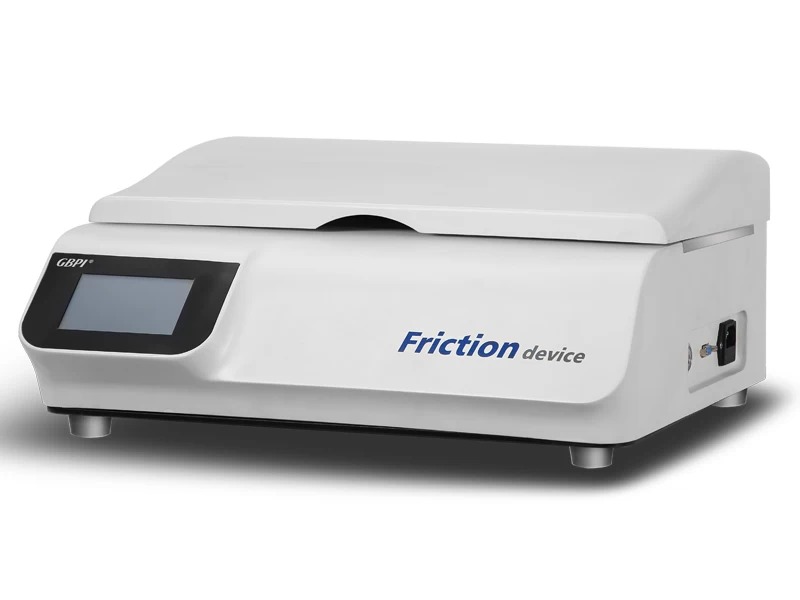

New advanced 0.01~0.999 film packaging COF coefficient of friction tester
Coefficient of friction testers is used to test the coefficient of frictionof plastic film, thin sheet, paper and so on, widely used in packaging industry, film-making companies and packaging material inspection agencies.
Features:
Accurate and reliable data
1. high precision with Imported core components with .
2. It is easy and convenient to calibrate the force value sensor with the special standard block.
Simple operation
1. With LCD display, the static friction coefficient and dynamic friction coefficient are displayed in real time.
2. Can run independently without computer, data processing automatically.
3. Easy operation, with controlling software, can connect to computer to display curves and print out the test report.
Advanced technology
Automatic operation,one-key test, automatic judgment and stop.
Reliable and easy-maintenance
1. Sensor over-range auto protection.
2. Function modularization, easy to maintain.
Specifications:
|
Test range |
0.01~0.999 |
|
Force range |
0~10N |
|
Test error |
±2% |
|
Slider size |
63 mm×63 mm |
|
Slider weight |
200 g±2 g |
|
Working table size |
200 mm×470 mm |
|
LCD display |
Test speed,dynamic friction coefficient, Static Friction Coefficient |
|
Temperature control |
indoor temperature~75℃ |
|
Sliding speed |
Common speed 100 mm/min (can adjust to 150±10mm/min) |
|
Sample thickness |
≤2 mm |
|
Power supply |
220±10 V，50 HZ |
|
Instrument size |
470 mm×330 mm×210 mm |
|
Weight |
37 kg |
|
Power |
1000W |
Standards
GB/T 10006-1988, ASTM D1894-2014, ISO 8295-2004,TAPPI 816
