New Allen Bradley 1794-IA8I Flex I/o Digital Input Module

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference     1794-IA8I

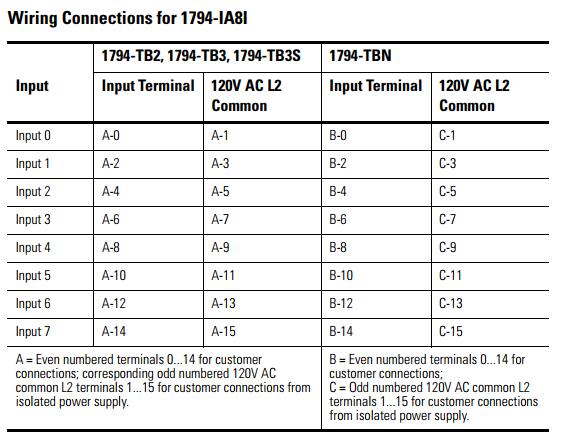

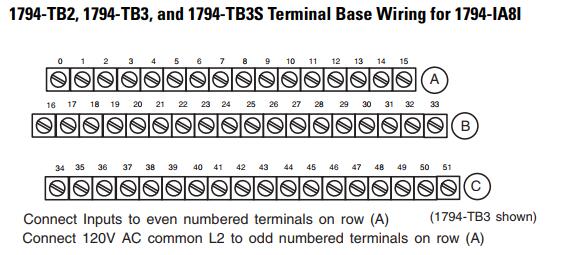

Connecting Wiring for the 1794-IA8I 1. For 1794-TB2, 1794-TB3, or 1794-TB3S – Connect individual input wiring to even numbered terminals on the 0-15 row (A) as indicated in the Wiring Connections for 1794-IA8I table. For 1794-TBN – Connect individual input wiring to even numbered terminals 0-14 on the 16-33 row (B) as indicated in the Wiring Connections for 1794-IA8I table. 2. For 1794-TB2, 1794-TB3, or 1794-TB3S – Connect the associated 120V AC common (L2) of the isolated supply to the corresponding odd numbered terminals on the 0-15 row A for each input as indicated in the Wiring Connections for 1794-IA8I table. For 1794-TBN – Connect the associated 120V AC common lead (L2) of the isolated supply to the corresponding odd numbered terminal 1-15 on the 34-51 row (C) as indicated in the Wiring Connections for 1794-IA8I table. Input 15 A-15 C-15 C-50 120V AC L1 Power terminals C-34 to C-51 (C-34 and C-51 on 1794-TBN) are internally connected together. Connect 120V AC L1 to C-34. 120V AC L2 Common terminals B-16 to B-33 (B-16 and B-33 for 1794-TBN) are internally connected together. Connect 120V AC common L2 to terminal B-16. (1) When using the 1794-TBN, an external terminal strip is needed to connect the 120V AC power connections. IMPORTANT Individual isolated 120V AC L1 power leads must be run externally to each of the input devices.
