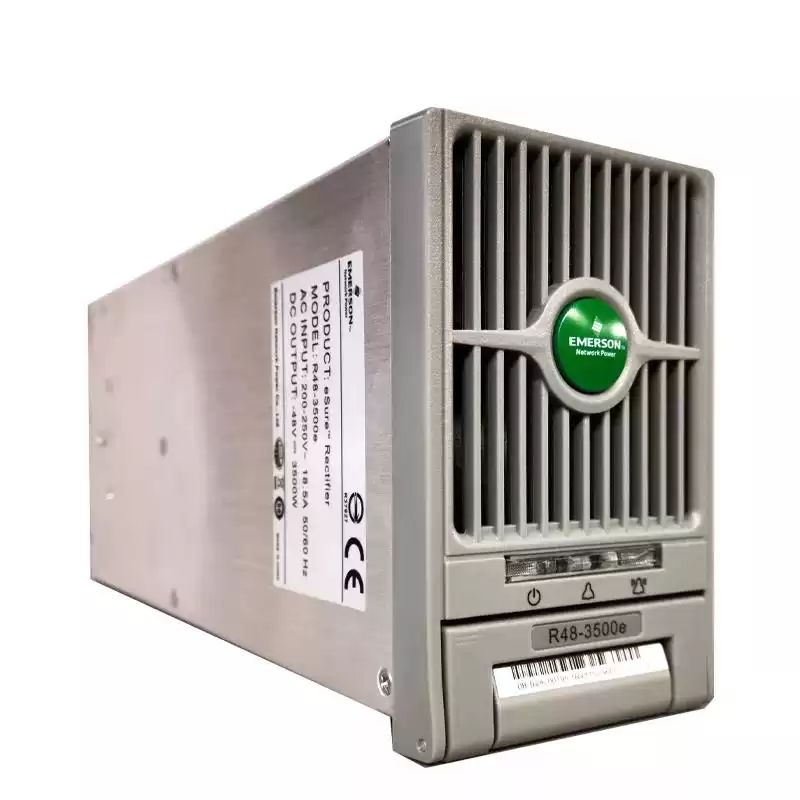

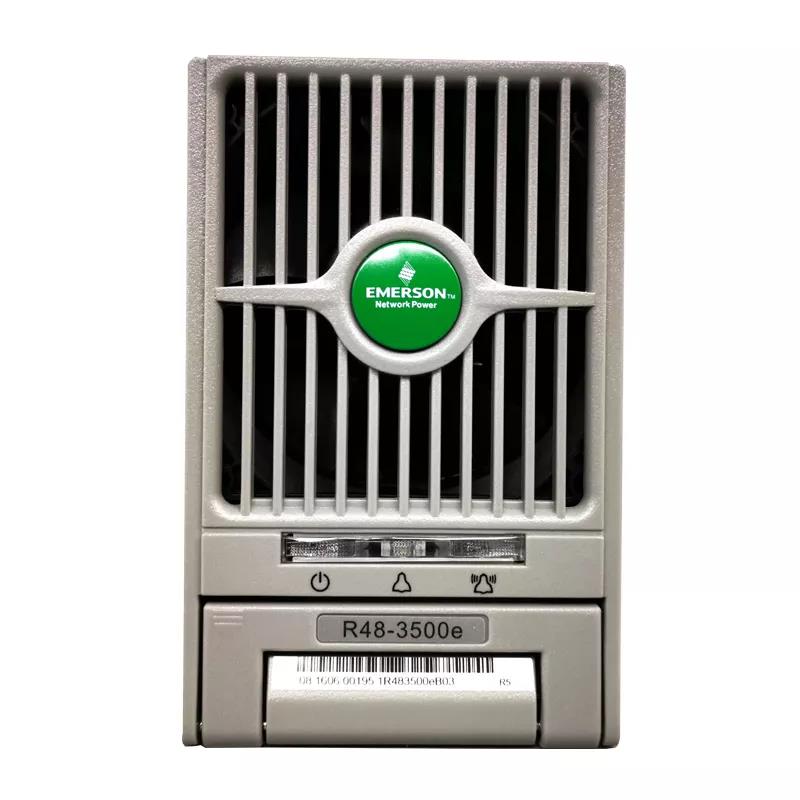

New and Original Emerson Rectifier telecom Module R48-3500E
Product Description
|
Product name
|
R48-3500e
|
|
Working Temperature
|
-40°C~70°C
|
output power
|
3500W
|
|
input voltage range
|
85Vac~300Vac
|
rated input voltage
|
200Vac~250Vac
|
|
incoming current
|
<20A
|
Rated input network frequency
|
50Hz/60Hz
|
|
Output dc voltage range
|
42V~58V
|
Output dc current
|
0A~65.5A
|
The eSure™ R48-3500e high-efficiency rectifier is designed to convert standard AC supply voltages into stable nominal -48V DC voltage that is adjustable to application needs. The R48-3500e is a constant power rectifier designed with the latest patented
switchmode technology, using DSP (Digital Signaling Processor) functionality for efficient operation.
For a higher load capacity, rectifiers can be connected in parallel, and intelligent
control can be added with the help of a separate controller.
Features
1.3500 Watt high-efficiency rectifier designed for -48V DC power applications.
2. Optimized depth – reduced footprint allows installation in short-depth racks and cabinets.
3. DSP (Digital Signaling Processor) – means fewer components. optimized operation and active load sharing for increased reliability.
4. Compliant with global standards – delivers quality, performance and reliability no matter what the application or location demands.
5. High efficiency, approaching 97% – reduces power consumption for lower operating costs.
6. Hot pluggable – facilitates future extensions.
* Emerson's high-efficiency rectifier module R48-3500e adopts non-destructive hot-swapping technology, and its output and input have soft-start units, so the output voltage of the system will not fluctuate when the module is swapped.
* working temperature: -40°C~70°C
* altitude: less than 2000m (2000m with upper power).
* output power: 3500W (input voltage 176Vac~30Vac).
* input voltage range: 85Vac~300Vac (single phase three wire system).
* rated input voltage: 200Vac~250Vac
* maximum static voltage without working time: 415Vac
* input current: <20A @2900W/176Vac
* starting current: <32A
* rated input frequency: 50Hz/60Hz
* output DC voltage range: 42V~58V
* output DC current: 0A~65.5A
* regulation accuracy: less than or equal to 0.5%.
* load adjustment rate: less than or equal to 0.5%
* voltage adjustment rate: less than or equal to 0.1%.
* power factor: greater than or equal to 0.90 (@25%~50% rated output power).
More than 0.90 (@50%~100% rated output power)
More than 0.99 (@50%~100% rated output power)
* efficiency: greater than or equal to 91%
* over voltage protection: input under voltage protection point 80 + 5Vac input overvoltage protection point 305V + 5Vac
* Output Overvoltage Hardware Protection Point: 58.5-59.5V (Output Overvoltage Software Protection Point 56V-59V can be set by monitoring)
* module current sharing error: less than + 0.9A
* cooling mode: forced air cooling.
* safety standards: UL/EN/IEC 60950-2000
* safety requirements: CE/UL/NEBS
* outline size: 87.9mm (high) X85.3mm (wide) X272mm (deep)
* module weight: ≤4kg
Product Details
Our Advantages
We have Emerson R48-3500E for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Emerson R48-3500E, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Emerson R48-3500E represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
