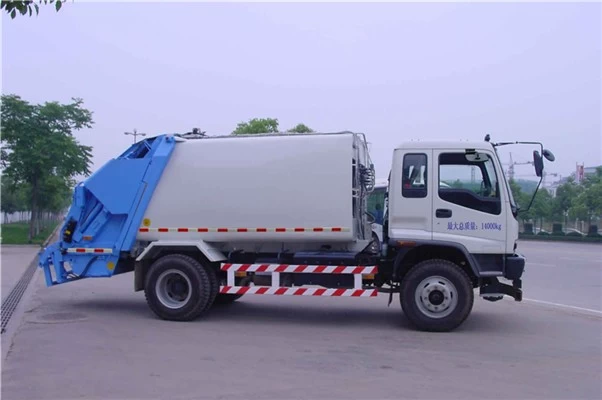

New arrival Isuzu FTR customized 10m3 garbage compactor truck
FTR FVR ISUZU Garbage compactor/10ton garbage compactor/10cbm garbage compactor, 10CBM garbage compactor,isuzu 10m3 refuse compactor truck,New arrival Isuzu FTR customized 10m3 garbage compactor truck
New arrival Isuzu FTR customized 10m3 garbage compactor truck
FTR FVR ISUZU Garbage compactor/10ton garbage compactor/10cbm garbage compactor, 10CBM garbage compactor,isuzu 10m3 refuse compactor truck,New arrival Isuzu FTR customized 10m3 garbage compactor truck
Main specifications:
ISUZU ELF |
||
Model |
PT5140ZYS |
|
Driving Type |
4x2 (Left hand drive) |
|
Wheelbase |
4475 mm |
|
Overall Dimension |
7650x2200x2600 mm |
|
Garbage Container capacity |
10Cbm to 12Cbm |
|
Loading type |
Rear loading |
|
Compression ratio |
1: 3.2 |
|
Operation control system |
Electrically hydraulic control + Manual hydraulic control |
|
Discharging system |
Horizontal ejection |
|
Loading cycle time: (sec) |
10~15 |
|
Rubbish discharging time: (sec) |
20 |
|
Max hydraulic pressure (Mpa) |
16.2 |
|
Feeding equipment lift angle |
≥90 |
|
Multi-way shuttle valve |
Imported |
|
Body material |
Weather resisting steel |
|
Cab |
Forward control over engine, all-steel-welded construction |
|
Engine |
Model: |
4HK1-TCG40 |
Type: |
Diesel, turbo charged inter-cooled, 4 cylinder |
|
Max. Power: |
139 KW (190HP) |
|
Gearbox |
MLD 6-shift, mechanical type, 6 forward and 1 reverse with |
|
Tire |
9.00-20 |
|
Color |
Red (Any color & logos up to wish) |
|
Max Speed |
90 km/h |
|
