Product Description
The Beiben 2642 trailer tractor head is a highly efficient and reliable 6×4 drive heavy-duty tractor designed for long-haul transportation. It is equipped with a high-performance WP12.420E32 engine, boasting a powerful 420 horsepower that can meet the demands of various complex road conditions. Additionally, the Beiben 2642 tractor truck adopts advanced chassis technology and a humanized cab design, providing drivers with a comfortable and safe driving environment.
The Beiben 6×4 tractor truck is powered by the WP12.420E32 engine, a water-cooled, four-stroke, inline six-cylinder, turbocharged diesel engine. It employs advanced combustion technology and an efficient turbocharging system, delivering up to 420 horsepower while complying with Euro III emission standards. With a displacement of 11.596 liters, the engine ensures the vehicle's power needs under various operating conditions.
Paired with the engine is the FAST 12JS200T mechanical transmission, which features 12 forward gears for smooth and rapid shifting. The transmission also incorporates a hydraulic assistance system, reducing the driver's workload. Furthermore, the Beiben 2642 tractor truck is equipped with a Φ430 diaphragm spring clutch, further enhancing the reliability and durability of the transmission.
The chassis of the Beiben 2642 tractor truck is made of high-strength steel, offering excellent resistance to torsion and fatigue. The suspension system adopts Benz suspension technology, with the front suspension featuring a lateral stabilizer bar and hydraulic shock absorbers, and the rear suspension utilizing Beiben's unique Benz balanced suspension. This suspension system design ensures stable driving performance under various road conditions, enhancing driving comfort and safety.
The cab of the Beiben 2642 tractor head features the NG80B long cab design, with a full steel frame structure covered with double-layer steel plates, which not only ensures the strength of the cab but also improves sound insulation. The cab is equipped with a single sleeper berth, air conditioning, and other facilities, providing a comfortable resting environment for the driver. Moreover, the cab can be tilted forward, facilitating maintenance and inspection of the vehicle.
Product Specifications
|
New Beiben 6×4 2642 tratcor truck for Congo
|
|
Wheel base (mm)
|
3450+1450
|
|
Curb weight (kg)
|
9200
|
|
Max towing weight (kg)
|
40 tons
|
|
Max Speed:(Km/h)
|
≤90
|
|
Dimension (Length*Width*Height)
|
7150×2500×3200mm
|
|
Front overhang/rear overhang (mm)
|
1410/740
|
|
Approach angle/Departure angle
|
26/64
|
|
Engine
|
Model
|
WP12.420E32
|
|
Power
|
420HP
|
|
Type
|
water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
|
Fuel type
|
Diesel
|
|
Emission
|
EURO III
|
|
Displacement(L)
|
11.596
|
|
Fuel tanker capacity (L)
|
400L Aluminum alloy
|
|
Clutch
|
Φ430, Diaphragm Spring,Hydraulic boosting
|
|
Gearbox
|
FAST 12JS200T, mechanical type,12 Forward speed gear.
|
|
Steering system
|
ZF8098
|
|
Front axle (Mercedes Benz
Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|
Middle and Rear axle
(Mercedes Benz technology)
|
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
|
Tire
|
12.00R20 radial tire 11 (10+1)
|
|
Cab
|
NG80B Long cab with single sleeper,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|
Fifth wheel
|
#90 single direction
|
Product Advantages
The Beiben 2642 tractor truck has emerged prominently in the logistics and transportation field with its excellent performance and outstanding advantages. Its advantages are mainly reflected in the following aspects:
1. Powerful Engine: Equipped with the WP12.420E32 engine, it boasts strong power, high fuel efficiency, and emissions that comply with the Euro III standard. Whether climbing hills or accelerating, it can handle the tasks with ease.
2. Agile Handling: Adopting the ZF8098 steering system, it offers precise and responsive steering performance, allowing the vehicle to accurately respond to the driver's commands during driving. Meanwhile, its moderate body size and wheelbase design enable the vehicle to maneuver more flexibly on urban roads.
3. High Towing Capacity: With a maximum traction weight of 40 tons and a sturdy, durable body structure, the vehicle can handle heavy loads with confidence. The design of the middle and rear axles also ensures the vehicle's load-carrying capacity and driving stability.
4. Good Fuel Economy: The 400-liter aluminum alloy fuel tank and radial tire design enable the vehicle to save more fuel during long-distance transportation, reducing transportation costs.
5. Comfortable Driving: The NG80B long-nose cab design is spacious and bright, equipped with a single sleeper berth and comfortable seats, providing a good resting and working space for the driver. Additionally, the cab can tilt forward, facilitating vehicle maintenance and servicing work for the driver.
6. Safe and Reliable: The entire vehicle adopts a full steel frame structure and double-layer steel plate covering design, enhancing the body's impact resistance. The precise steering system, stable suspension system, and powerful braking system ensure the vehicle's safety during driving.

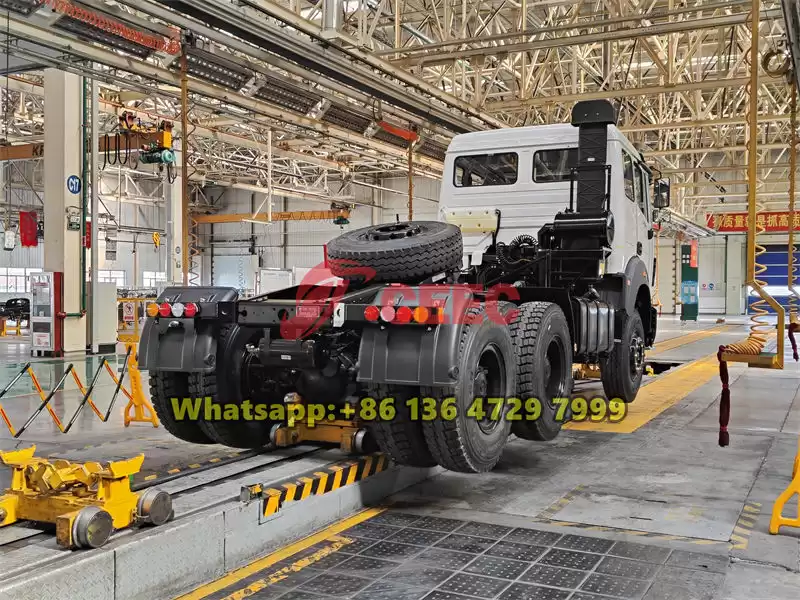

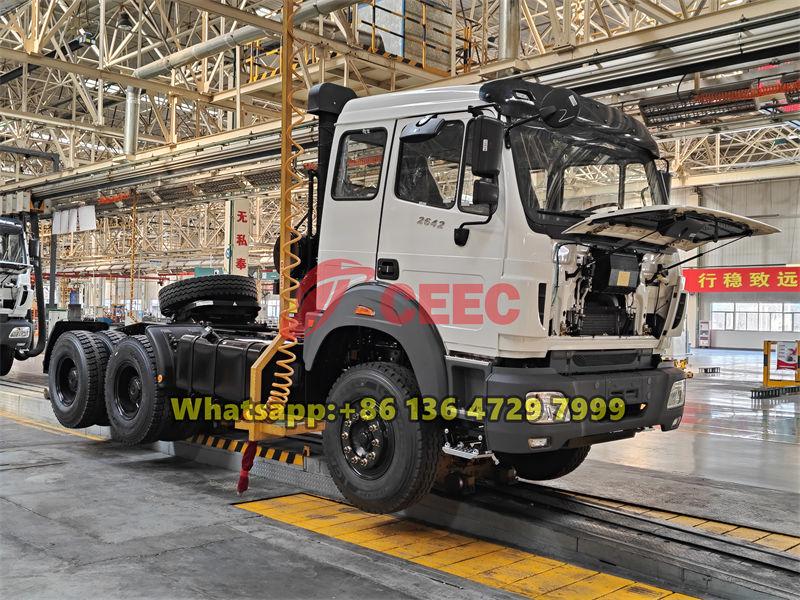

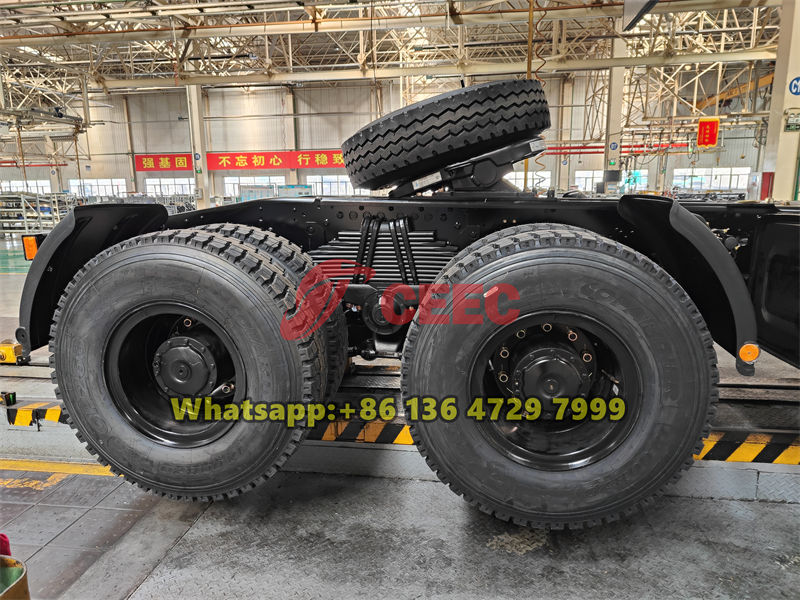

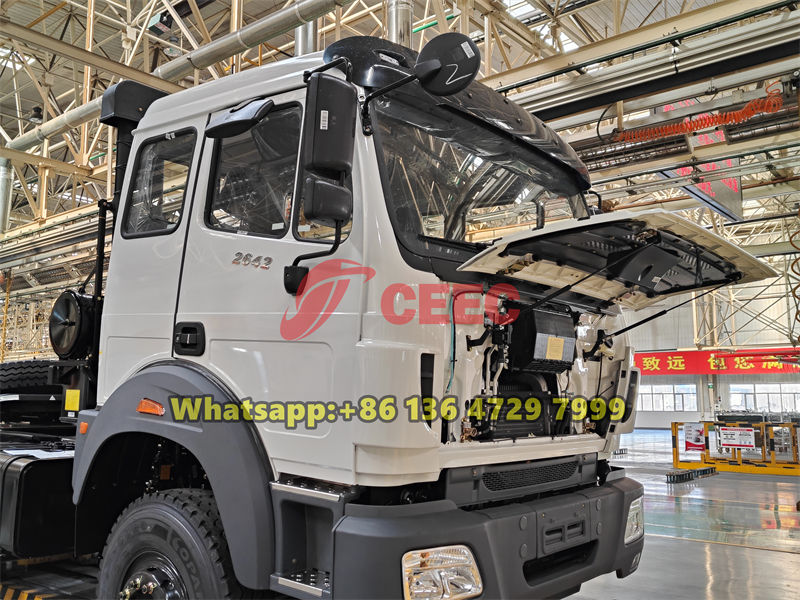

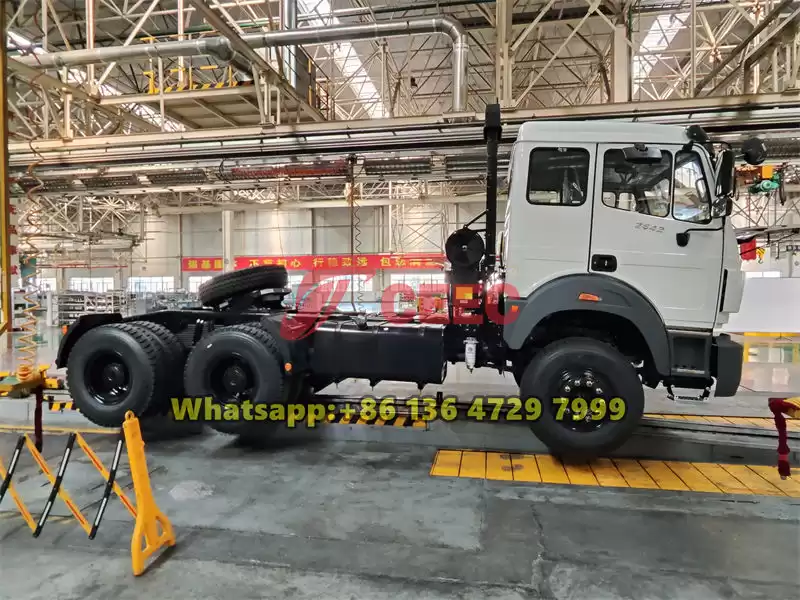

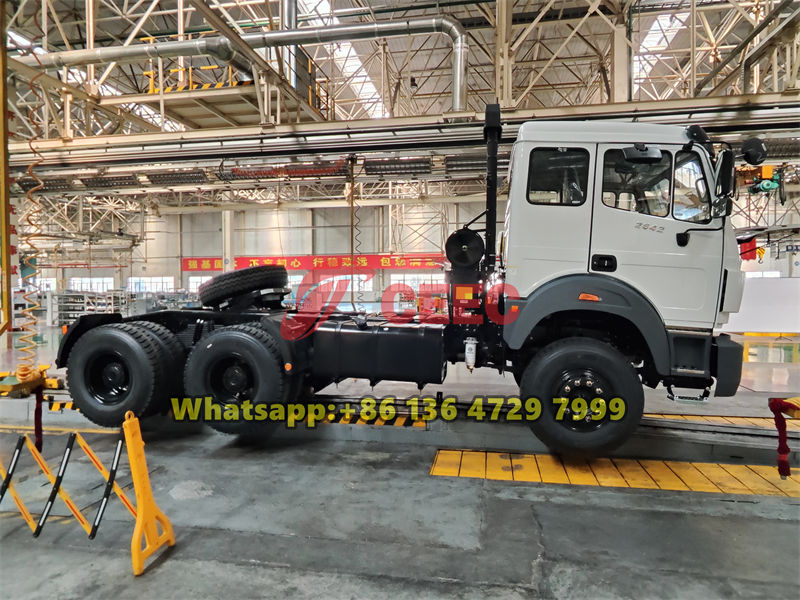

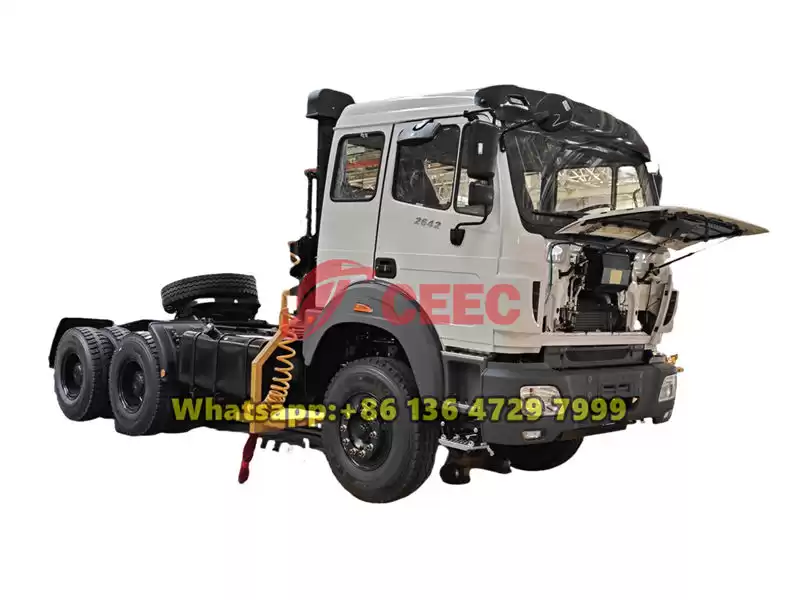

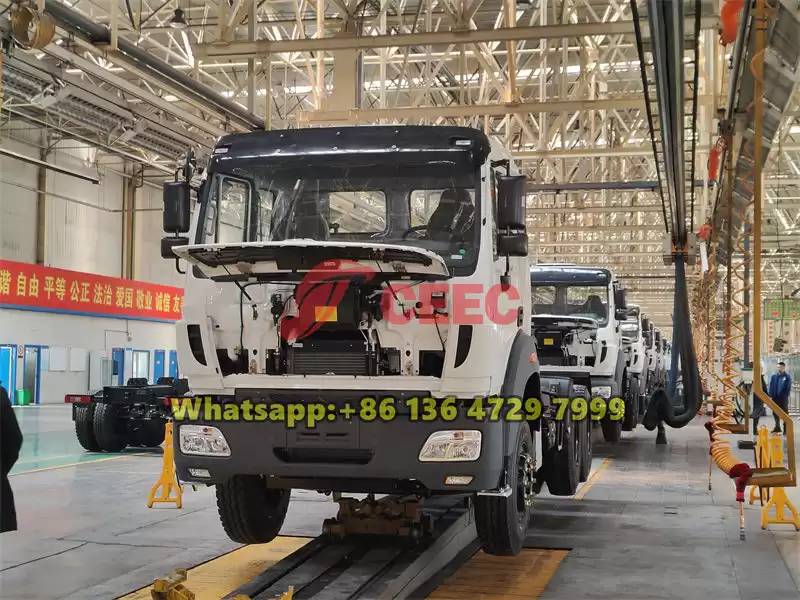

Product Details
