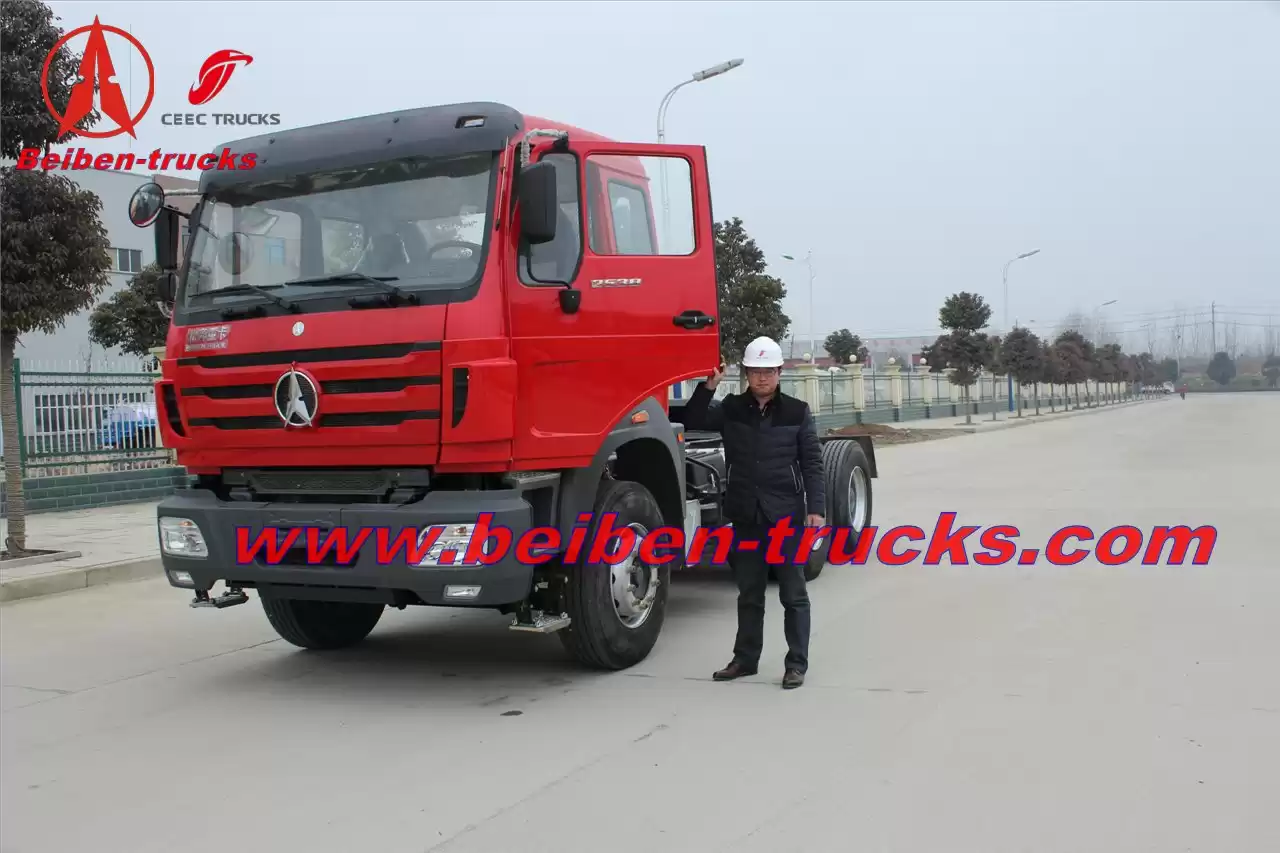

New Beiben NG80 truck 380hp trailer tractor
Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4 double reduction driving axle
Model
|
ND4257B34J
|
Traction type
|
LHD/RHD
|
Drive System
|
6×4
|
Cabin
|
NG80 flat cabin, air conditioner ,one sleeper
|
Engine
|
Brand
|
WEICHAI
|
Model
|
WP10.380E32 EGR
|
Rated power
|
380hp
|
Engine displacement
|
9.726 liters
|
Gearbox
|
12JS200T
|
Clutch
|
430 Diaphragm type
|
Steering
|
TAS85
|
Axle
|
Front
|
BEIBEN 7.5T
|
Rear
|
BEIBEN 13T, double reduction axle, ratio:5.921
|
Max. running speed (km/h)
|
85
|
Tire
|
12.00R20
|
Spring
|
13/13
|
Fuel tank
|
400L
|
Kerb weight (kg)
|
9200
|
Total mass (kg)
|
25000
|
Wheel base (mm)
|
3450+1450
|
Overhang (mm) (front/rear)
|
1410/825
|
Track (mm) (front/rear)
|
1995/1800
|
Approach / departure angle(°)
|
26/64
|
Overall Dimensions(L*W*H)(mm)
|
7135×2495×3180
|
5th wheel
|
90#
|
