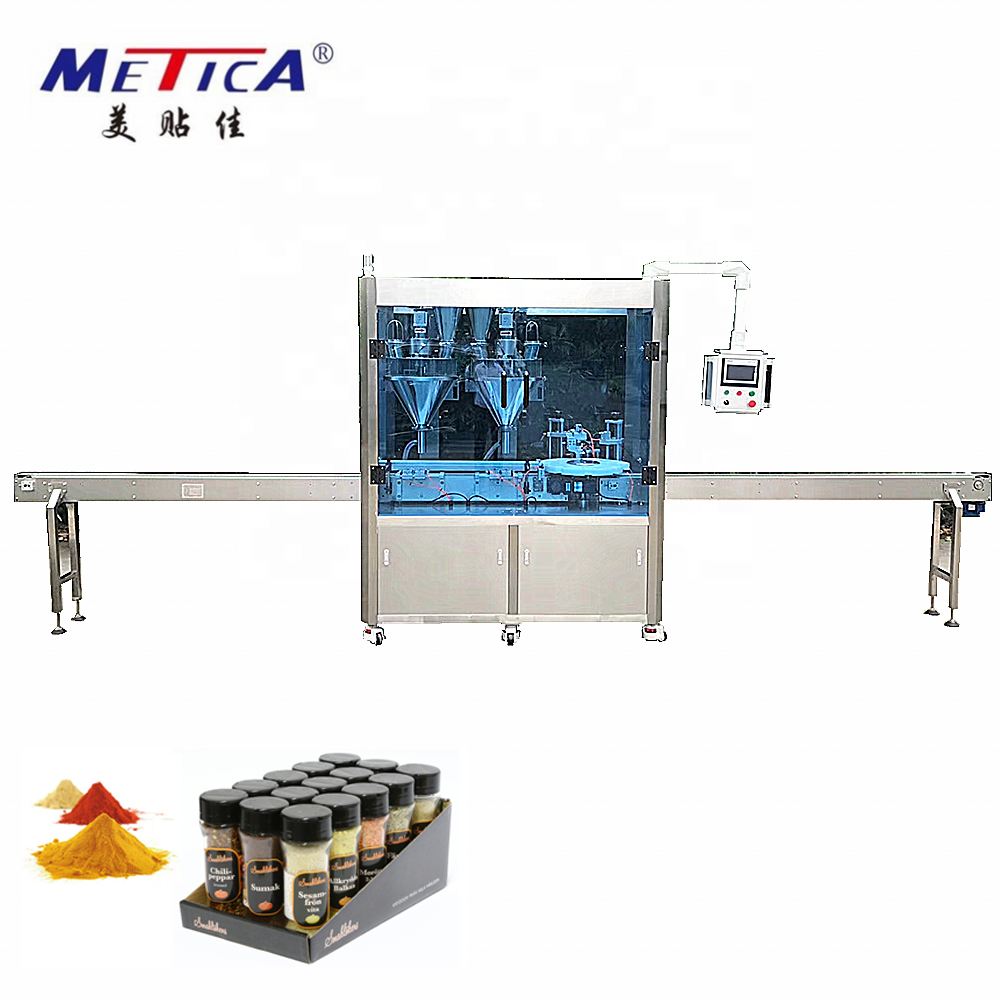

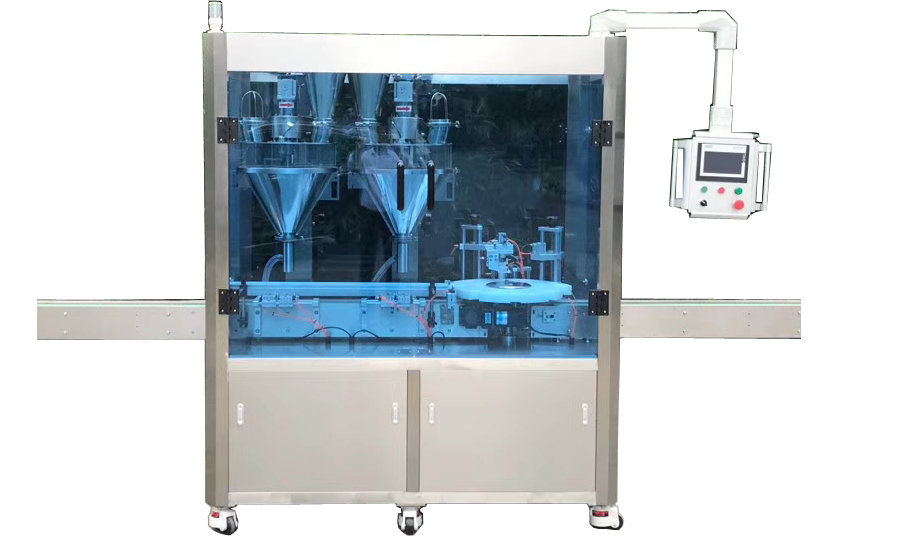

New design spice jar powder filling capping machine automatic linear spice/pepper powder filling machine
Application
This machine used for all kinds of powder products filling. Such as spice, pepper and coco powder, also can be used for cosmetic.
The filling heads designed according to capacity. (Can be designed depend
on the product capacity), will not be break the machine when the speed is high
or act quickly.
Spec and Feature

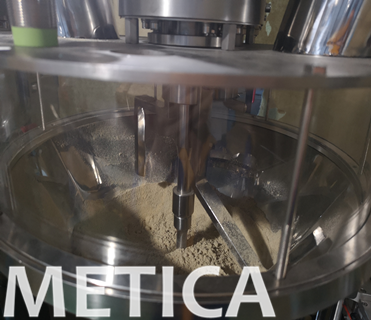

- Adopts servo motor driven screw filling system. High precision filling machine, which can adjust the
filling volume according to the different volume of bottles.

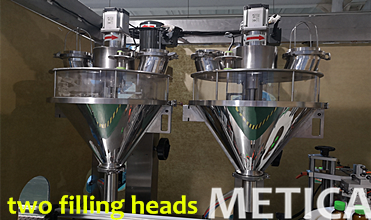

- Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
- Filling volume is adjustable in certain filling volume scope
- Single nozzle is micro adjustable
- International branded electronic parts applied, good performance
- Compact models, operation stability, simple operation, easy cleaning
- PLC,Touch screen human-computer interface with simple operation
- Can work alone or join the production line.
Technical Parameters
| Speed |
10-60 BPM(can be customized) |
| Filling accuracy |
+/- 2% |
| Filling volume |
10-500 g |
| Filling method |
servo motor driven screw |
| Power supply |
220V 50/60 Hz, 3 kw |
| Air supply |
0.8MPa |
| Machine size |
300*125*230 cm |
| Bottle applicable |
A wide shape range |
| Application |
Powder products filling |
| Feature |
PLC, touch screen |
Project Examples
